RS232/RS422/RS485 in Modern Applications: Features, Challenges, and Use Cases Across Industries
RS232/RS422/RS485 in Modern Applications: Features, Challenges, and Use Cases Across Industries
Despite the rapid development of Ethernet, USB, and wireless communication standards, RS232, RS422, and RS485 serial interfaces remain highly relevant in modern IT and industrial environments. Originally developed decades ago, these protocols continue to serve as reliable communication backbones in manufacturing plants, healthcare facilities, retail systems, logistics centers, and service organizations.
This article examines the technical features, advantages, and limitations of RS232/422/485, highlights integration approaches with modern IT infrastructure, and outlines practical use cases in industries ranging from industrial automation and energy to commerce and medicine.
For IT staff in large organizations, understanding these interfaces is critical: they represent not only legacy system integration but also provide robust, low-cost, and secure connectivity where other technologies may fail.
1. Overview of RS232, RS422, and RS485

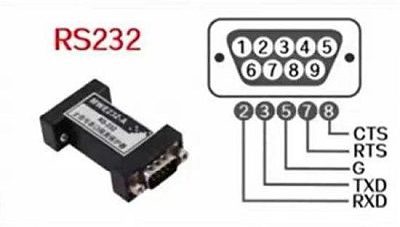

1.1 RS232 – Point-to-Point Communication
Developed in the 1960s as a standard for serial communication between two devices.
Typical configuration: one transmitter and one receiver.
Maximum distance: ~15 meters at full speed (can be extended with repeaters).
Widely used in modems, POS systems, industrial controllers.

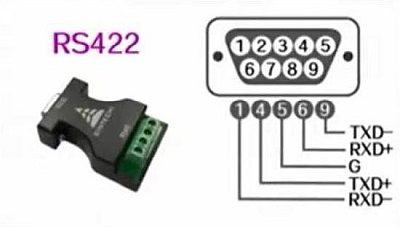

1.2 RS422 – Differential Signaling for Longer Distances
Introduced to overcome distance and noise limitations of RS232.
Allows one transmitter and up to 10 receivers (multi-drop configuration).
Distance: up to 1200 meters at lower speeds.
Higher immunity to electrical noise, suitable for industrial environments.

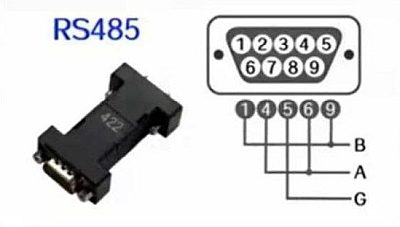

1.3 RS485 – Robust Multi-Point Standard
A true multi-point bus standard, supporting up to 32 devices on one line.
Allows half-duplex or full-duplex communication.
Extremely resilient to electromagnetic interference.
Common in building automation, SCADA, energy management, and factory control.
1.4 Specifications of RS232, RS422 and RS485 serial ports
RS232
RS422
RS485
Differential
no
yes
yes
Max number of transmitters
1
1
32
Max number of receivers
1
10
32
Modes of operation
Full Duplex
Full Duplex or HaIf Duplex
Full Duplex or HaIf Duplex
Network Topology
Point-to-Point
Point-to-Point or Multidrop
Point-to-Point or Multidrop
Signaling
Unbalanced
Balanced (differential signaling)
Balanced (differential signaling)
Max distance (acc. standard)
15 m
1200 m
1200 m
Max speed at 12 m
20 kbs
10 Mbs
35 Mbs
Max speed at 1200 m
(1 kbs)
100 kbs
100 kbs
Max slew rate
30 V/ps
n/a
n/a
Receiver input resistance
3..7 kQ
≥ 4 kQ
≥ 12 kQ
Driver load impedance
3..7 kQ
100 Q
54 Q
Receiver input sensitivity
±3 V
±200 mV
±200 mV
Receiver input range
±15 V
±10 V
-7..12 V
Max driver output voltage
±25 V
±6 V
-7..12 V
Min driver output voltage (with load)
±5 V
±2.0 V
±1.5 V
2. Why Serial Communication Still Matters in 2025
Although modern IT teams rely heavily on TCP/IP networks and wireless protocols, RS232/422/485 provide advantages that cannot always be matched by Ethernet or Wi-Fi:
Reliability: Simple electrical signaling with fewer points of failure.
Cost efficiency: No need for expensive switches, routers, or licenses.
Legacy integration: Many critical machines still use RS interfaces.
Security: Difficult to intercept compared to wireless or IP-based protocols.

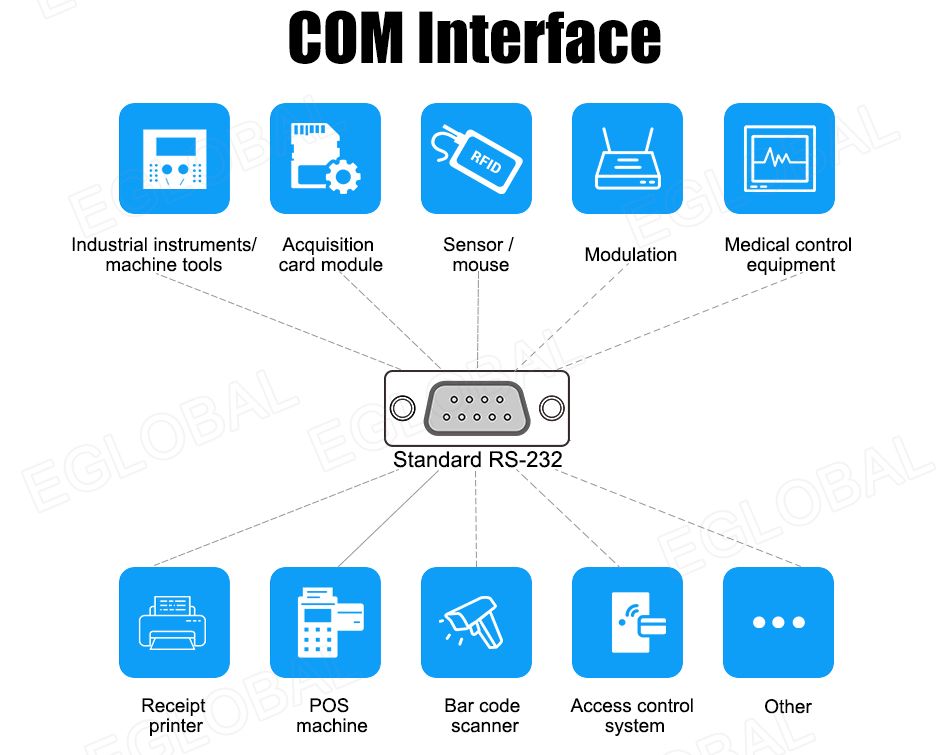

3. Industry Applications
3.1 Industrial Automation
Programmable Logic Controllers (PLCs): Many PLCs continue to support RS485 for direct machine-to-machine communication.
Robotics and CNC machines: Serial connections ensure stable and interference-free data transfer.
SCADA systems: RS485 bus connects sensors, actuators, and controllers across large facilities.
Industry 4.0 integration: Gateways now allow RS232/RS485 devices to connect seamlessly into IoT and IIoT platforms.
Example: A production plant with hundreds of sensors linked over RS485 can reliably transmit data to a central server without expensive Ethernet cabling.
3.2 Retail and POS Systems
Barcode scanners, receipt printers, and cash drawers still rely on RS232 ports.
POS terminals: Many large retail networks continue to deploy RS232 because of stability and compatibility.
Kiosk solutions: Ticketing and vending machines often integrate RS232 modules.
Example: A supermarket chain uses RS232-based receipt printers that auto-restart after power outages without complex reconfiguration.
3.3 Service Sector
Parking systems: RS485 ensures barrier gates and payment terminals work seamlessly even in outdoor, noisy environments.
Access control: Card readers and security panels often use RS422/485.
ATM machines: Core subsystems frequently employ serial communication for reliability.
3.4 Medical Equipment
Patient monitoring systems: Many bedside devices still use RS232 for direct PC connection.
Laboratory analyzers: RS422 ensures stable communication with hospital networks.
MRI and X-ray systems: RS485 is common in subsystems where low noise and long distance are critical.
Why important for IT staff? Hospitals often require integration of legacy medical equipment with modern HIS (Hospital Information Systems). Serial-to-IP gateways play a key role here.
3.5 Energy and Utilities
Smart meters: RS485 (Modbus RTU protocol) is a global standard.
Power plants: Critical systems often rely on RS422/RS485 for communication between controllers.
Substations: Serial communication provides deterministic data transfer, essential for real-time protection systems.
Warehousing and logistics hubs: Forklift monitoring systems often use RS232.
Fleet tracking devices: Many telematics boxes use serial interfaces for sensor integration.
4. Integration with Modern IT Infrastructure
4.1 Serial-to-Ethernet Gateways
These devices allow legacy RS232/422/485 equipment to be connected to TCP/IP networks, enabling remote monitoring and control.
4.2 Virtual COM Ports
Software solutions emulate physical COM ports, allowing old applications to run on modern Windows/Linux servers.
4.3 Serial-to-USB Converters
Widely used in IT support to connect laptops without COM ports to legacy devices.
4.4 Cybersecurity Considerations
While serial ports are less vulnerable to remote attacks, once bridged to IP networks they require firewalls, VPNs, and encryption for secure integration.
5. Technical Challenges
Distance and speed trade-offs: RS232 is limited in distance, RS485 in speed.
Electromagnetic interference: Shielded cables and grounding are critical.
Compatibility: Not all RS devices follow the same implementation (voltage levels, termination resistors).
Declining native support: Modern PCs lack COM ports, requiring adapters.
6. Future Trends
IoT Integration: Serial devices connected through IoT gateways (MQTT, OPC UA).
Edge computing: RS485 sensors feeding data directly into edge AI modules.
Standardization of protocols: Modbus RTU remains dominant, but more IT teams are moving to Modbus TCP over Ethernet.
7. Practical Integration Devices: Controllers and Industrial PCs
One of the key challenges for IT teams in large organizations is bridging the gap between legacy serial devices and modern Ethernet/IP-based networks. Fortunately, there is a wide range of integration hardware that simplifies this process:

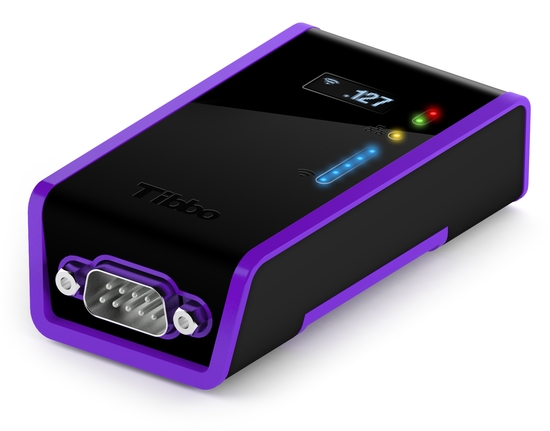

7.1 Programmable RS232/422/485 to Ethernet Controllers
These devices act as protocol converters, allowing serial equipment to communicate directly over standard RJ-45 Ethernet networks.
They are programmable, which means IT teams can configure them for custom protocols, automation logic, or remote management.
Benefits include:
Seamless integration of old RS-based devices into modern IT infrastructures.
Centralized control and monitoring via LAN/WAN/VPN.
Reduction of maintenance costs by extending the lifecycle of legacy equipment.
Typical use cases: linking industrial robots, barcode systems, PLCs, and medical analyzers to centralized monitoring platforms without replacing the entire hardware base.

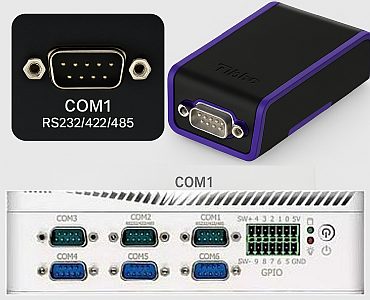

7.2 Industrial Computers with RS232/422/485 Ports
Modern industrial PCs often include multiple native serial ports alongside Ethernet, USB, and wireless interfaces.
They serve as integration hubs, enabling direct connection of RS devices while still supporting modern IT standards.
Advantages:
Reliable operation in harsh environments (dust, vibration, temperature).
Long product lifecycle compared to consumer PCs.
Support for both legacy COM-port software and new IoT/SCADA applications.
Example: An industrial PC with quad RS485 ports and dual Ethernet can simultaneously manage dozens of Modbus RTU devices while pushing data into an Edge AI or cloud system.
8. Where to Buy Reliable Solutions
For companies looking to modernize their infrastructure without abandoning proven technologies, a trusted supplier is essential. VenSYS online Store offers a full range of:
Programmable RS232/422/485 to Ethernet controllers – ideal for integrating legacy devices into IP-based networks.
Industrial computers with multiple RS232/422/485 ports – designed for demanding environments in manufacturing, logistics, energy, healthcare, and retail.
Accessories and converters – serial-to-USB adapters, serial expansion cards, and gateways.
With VenSYS online Store, IT professionals gain access to reliable hardware that simplifies integration, scalability, and digital transformation while maintaining compatibility with existing infrastructure.
Conclusion
For IT professionals in large enterprises, RS232/422/485 remain essential technologies despite being “old” standards. They enable reliable communication in industrial automation, retail, medicine, energy, and services, often at lower costs and with higher stability than modern alternatives.
With the help of programmable serial-to-Ethernet controllers and industrial PCs with built-in RS ports, organizations can seamlessly integrate diverse devices into their IT ecosystems. And with VenSYS online Store as a trusted supplier, companies have access to the right tools to modernize infrastructure while preserving the stability of proven serial communication.
