Highly reliable and easily customizable industrial fanless PC with low-power consumption, high performance, COM and GPIO extension. This rugged fanless computer with a small size and compact box PC housing design has a rail bracket, optionally embedded, mount, stand installation methods dedicated to factory automation, industrial automation and rolling stock applications.
Optional Intel 8th/10th/11th Gen Core i3/i5/i7 or Intel Celeron J4125/J6412 CPUs.
2 x Intel i225V 2.5G LAN and 2 x RS232/RS422/RS485 COM+4 x Expanded RS232 COM.

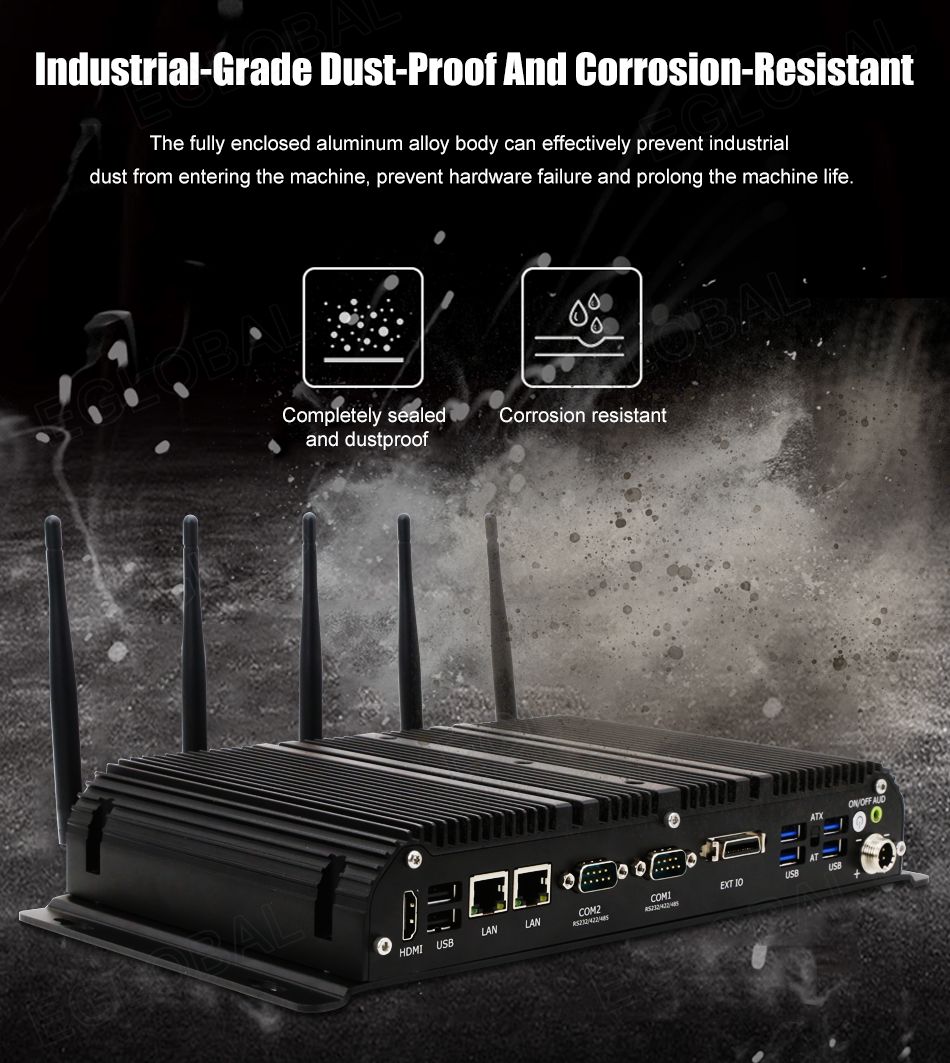

Full Aluminum Alloy Black colour shell for heat dissipation, Exquisite production craft on outside design.

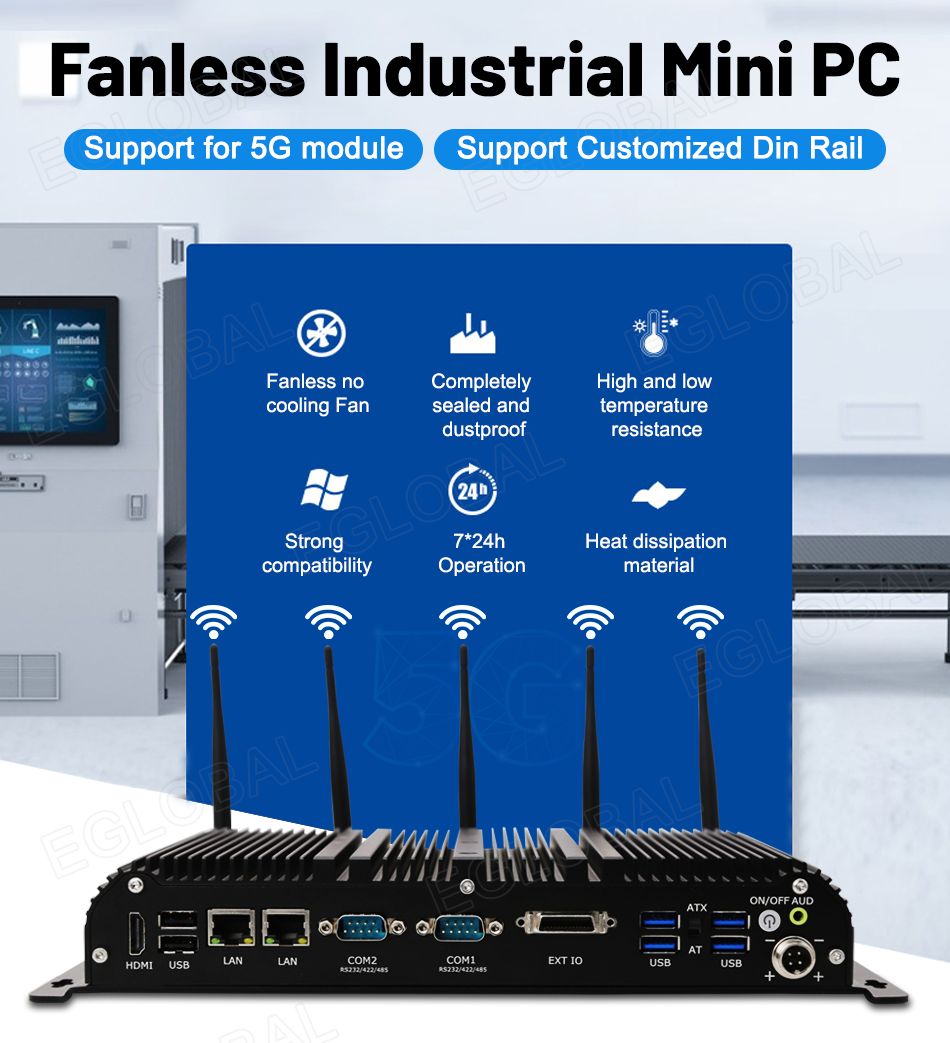

The fanless system without a cooling fan is fit for industrial-grade field and work as long as 24 hours.

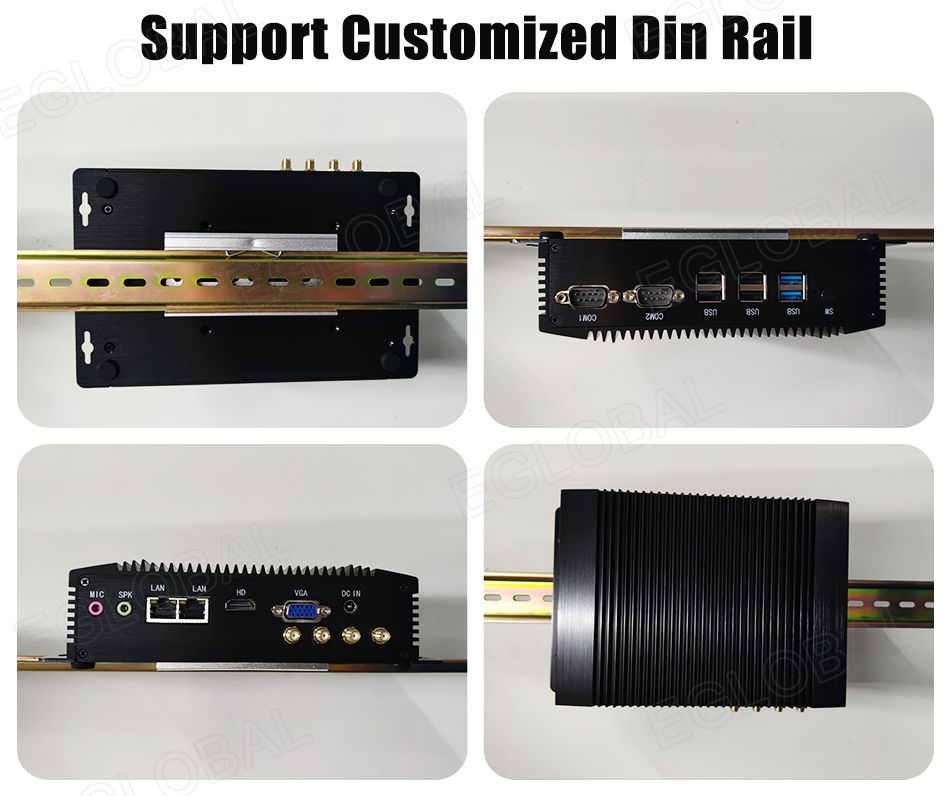

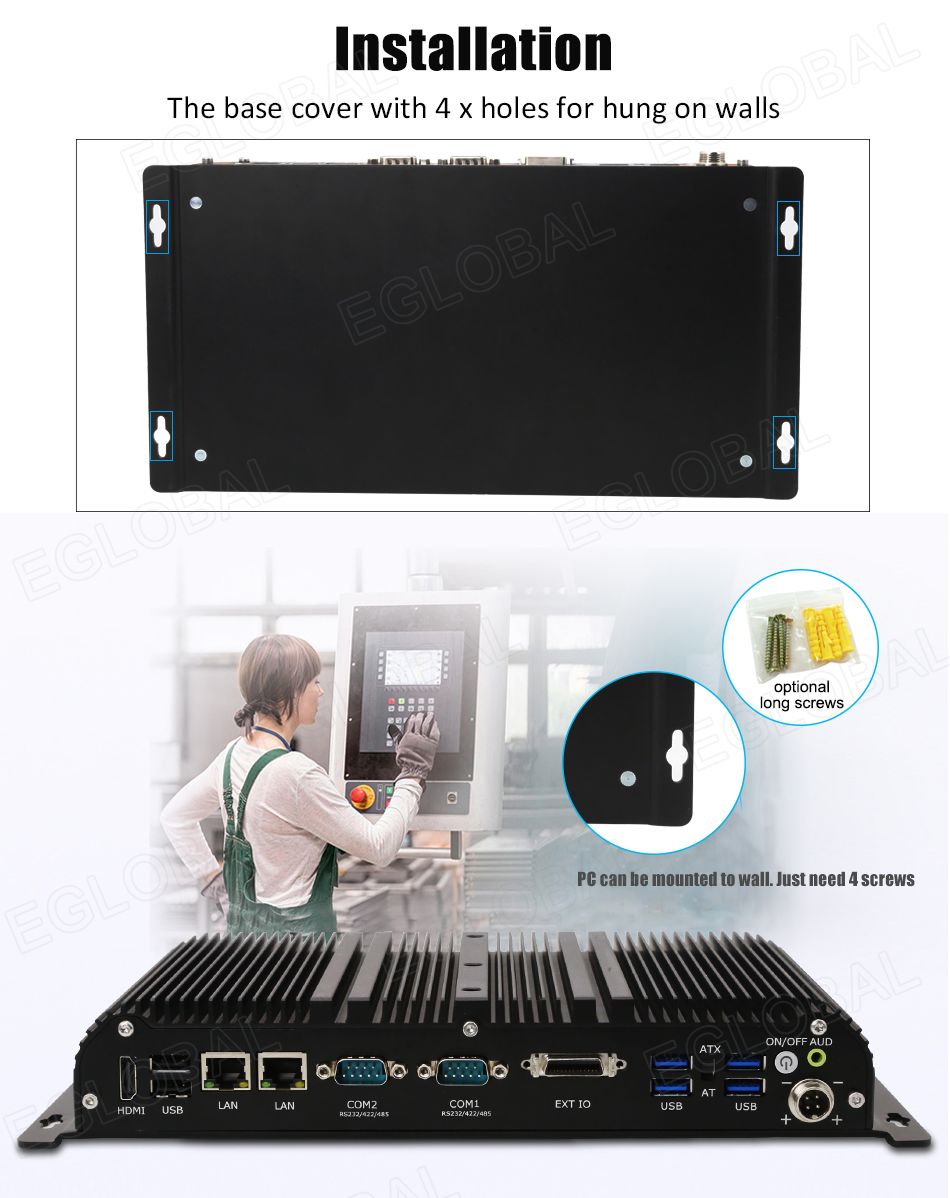

Installation: support desktop and wall-mounted, customized Din rail.
The powerful rugged embedded computer is powered by the latest 11th Generation Intel® Core series CPU bringing unrivalled performance within a robust and versatile form factor. The G14 meets the requirements of industrial environments and is certified with industry standards, delivering ultimate and reliable performance for controlling, operating automation of industrial processes and monitoring systems and machines in the most challenging manufacturing and process environments and to take on a number of networking and communication tasks. This industrial computer model includes Intel vPro Technology that offers easier, more efficient remote IT management and provides enhanced security.
Product Highlight:
Optional Intel Celeron J4125/J6412 and Intel 8th/10th/11th Gen core i3/i5/i7 CPU.
2 x Intel i225V 2.5G LAN and 2 x RS232/RS422/RS485 COM+4 x Expanded RS232 COM.
Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production craft on outside design.
The fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
Installation: support desktop and wall-mounted, customized Din rail.

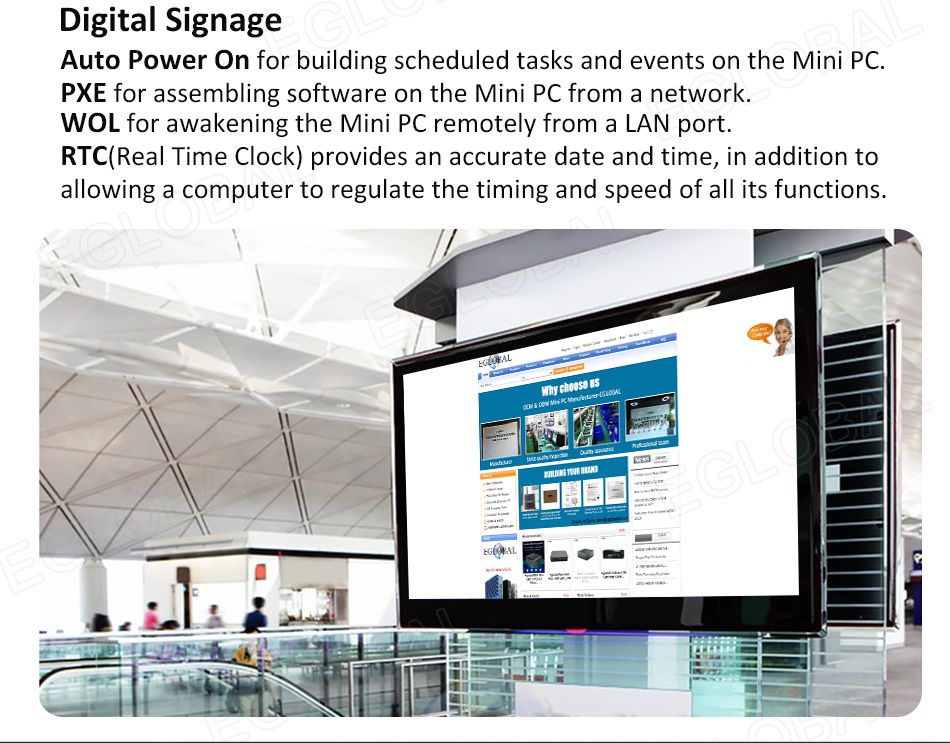

Application: Industrial Computer, Firewall Security, Embeded System, Industry factory, Security, Education, Digital Signage, Commercial Advertising, Self-service Terminal, Electronic Whiteboard
CPU Configurations :
Model:
CPU Onboard
G14-J4125
Gemini Lake 14nm Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max 2.7GHz(Turbo boost Technology) TDP 10W 4MB Cache Intel® UHD Graphics 600.
G14-J6412
Elkhart Lake 10nm Intel Celeron J6412 2.0GHz Quad Cores Four Threads Max 2.6GHz(Turbo boost Technology) TDP 10W 1.5MB Cache Intel® UHD Graphics.
G14-8260U
Whiskey Lake 8th Gen 14nm Intel Core i5-8260U Four Cores Eight Threads 1.6GHz up to 3.9GHz(Turbo boost Technology) 6MB cache TDP 15W Intel® UHD Graphics 620.
G14-8365U
Whiskey Lake 8th Gen 14nm Intel Core i5-8365U 1.6GHz Max 4.1GHz (Turbo boost Technology) Four Cores Eight Threads 6MB cache TDP 15W Intel® UHD Graphics.
G14-8565U
Whiskey Lake 8th Gen 14nm Intel Core i7-8565U 1.8GHz Max 4.6GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 15W Intel® UHD Graphics.
G14-10210U
Comet Lake 10th Gen Intel Core i5-10210U Processor, 6M Cache, 1.6GHz up to 4.20GHz (Turbo boost Technology) Two Cores Six Threads TDP 15W Intel® UHD Graphics
G14-10510U
Comet Lake 10th Gen Intel Core i7-10510U Processor, 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics.
G14-1135G7
Tiger Lake 11th Gen 10nm Intel Core i5-1135G7 Four cores Eight threads 2.4GHz up to 4.2GHz 6MB cache TDP 12W Intel IrisXeGraphics.
G14-1165G7
Tiger Lake 11th Gen 10nm Intel Core i7-1165G7 4 cores 8 threads 2.8GHz up to 4.7GHz 12MB cache TDP 12W Intel Iris Xe Graphics.

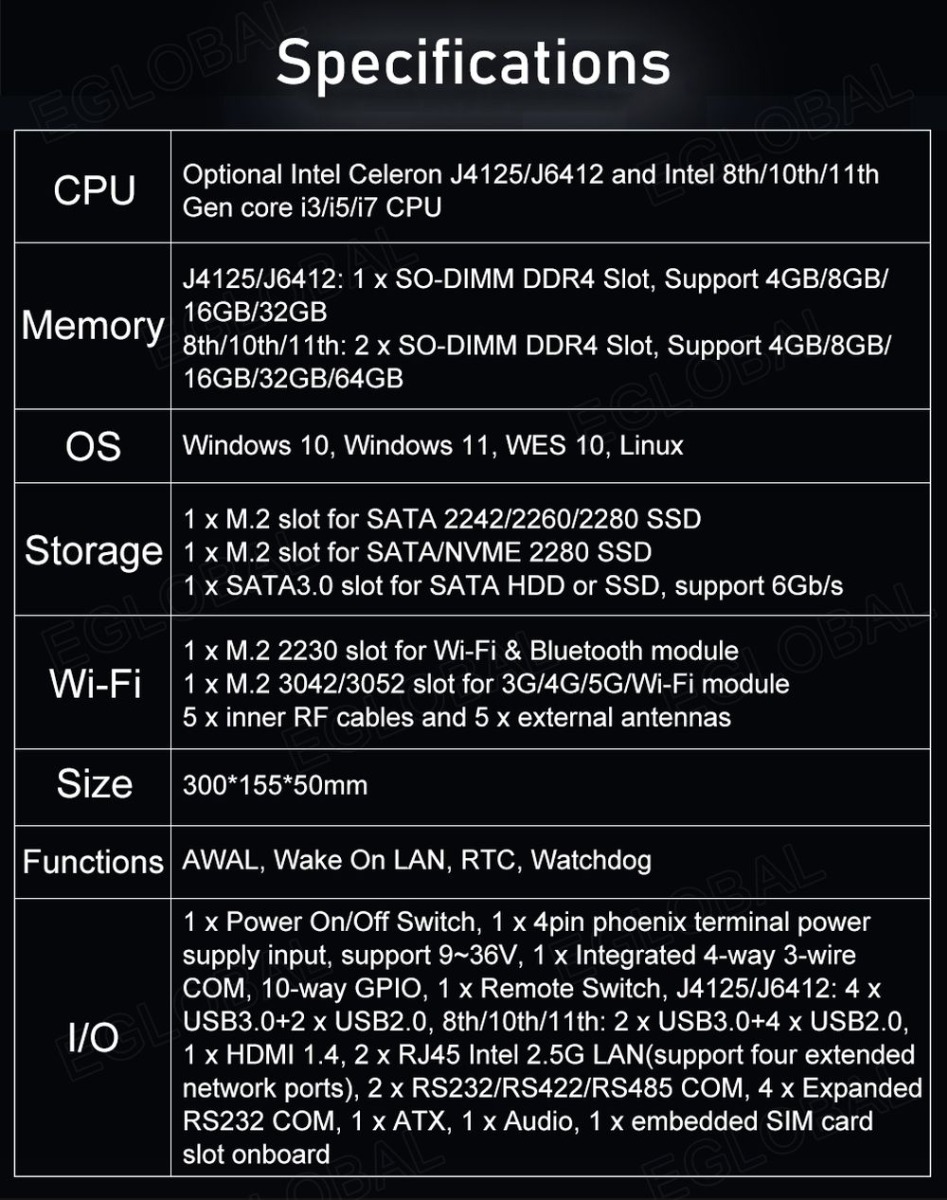

Product Specification
Basic Information:
CPU
Refer to the above CPU
TDP
Refer to the above CPU
Chipset
SOC
Memory

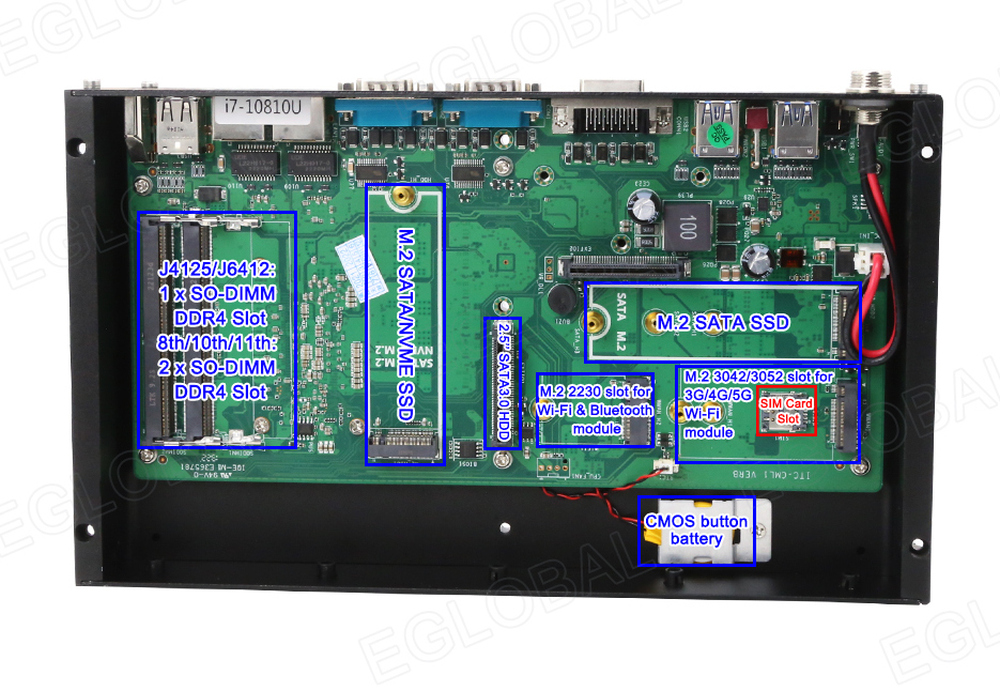

J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB
OS
Windows 10, Windows 11, WES 10, Linux

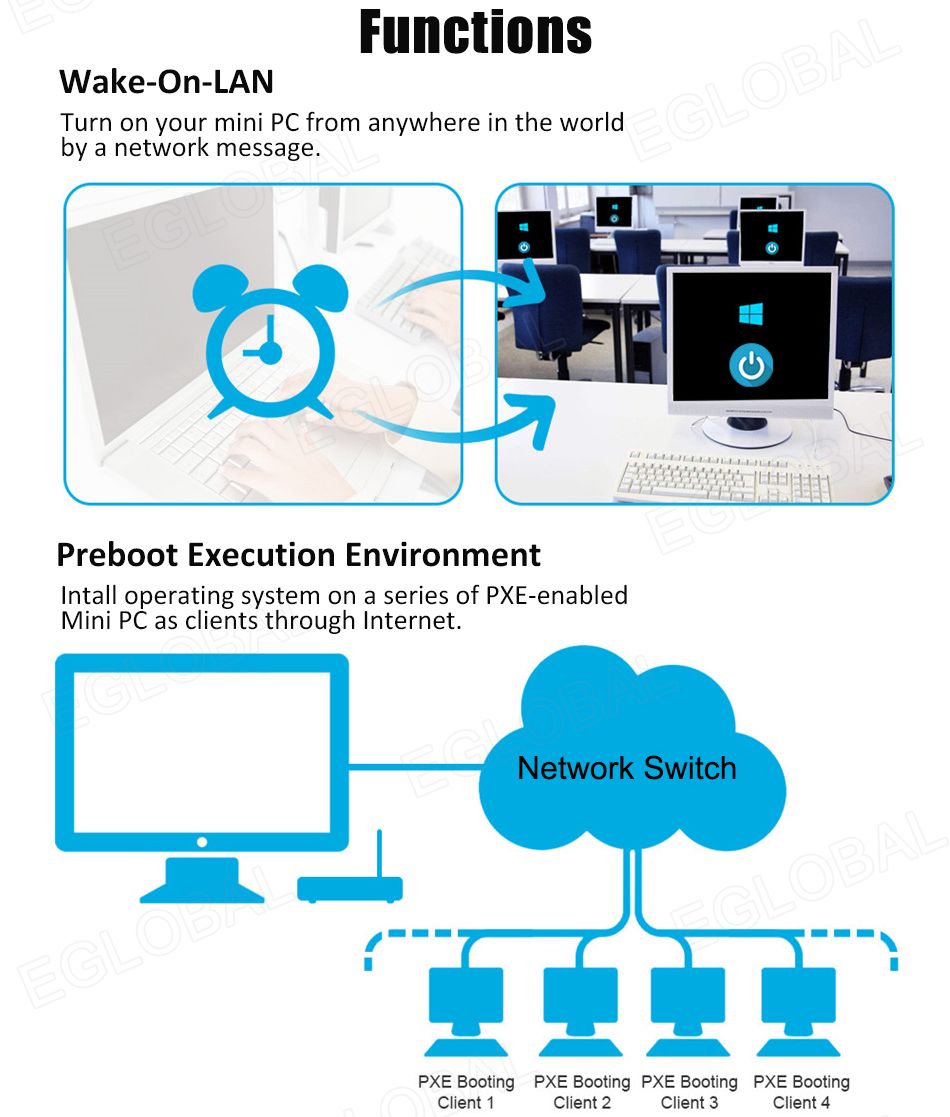

PXE
YES
Audio
Intel high definition audio controller
Network
2 x Intel(R) i225V Gigabit Network Connection10/100Mbps/1000Mbps BaseT LAN
Video
Refer to the above CPU
Wi-Fi:
Module
1 x M.2 2230 slot for Wi-Fi & Bluetooth module1 x M.2 3042/3052 slot for 3G/4G/5G/Wi-Fi module
Antenna
5 x inner RF cables and 5 x external antennas
Power and Working Environment:
Input
100-240V AC/50-60Hz
Output
9V~36V
Operating Temperature
-20°C/+60°C
Storage Temperature
-30°C/+70°C
Relative Humidity
10%~90%@30°C(non-condensing)

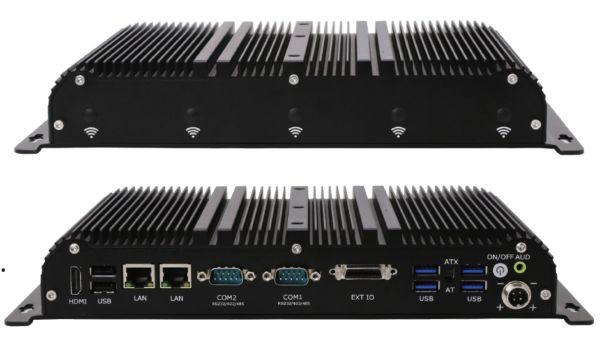

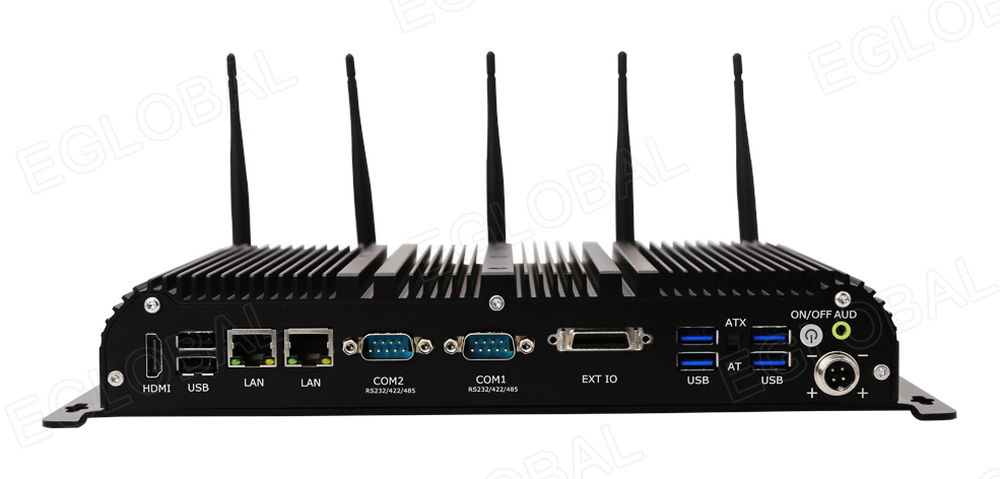

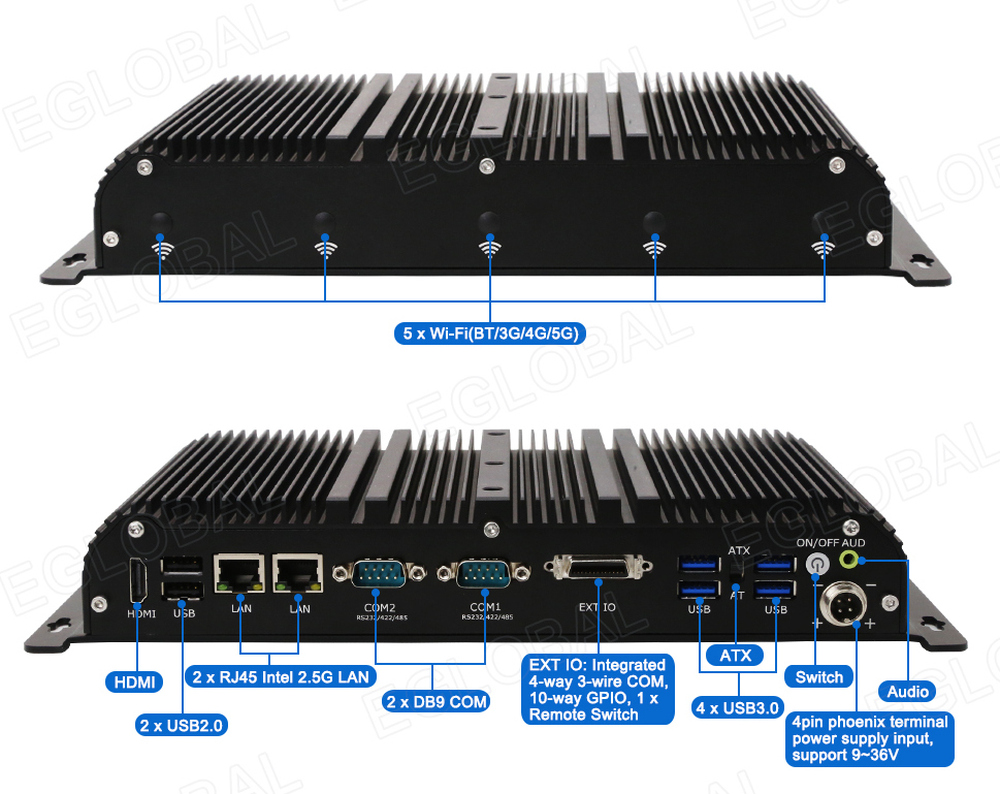

Input/output port:
Switch
1 x Power On/Off Switch
Power
1 x 4pin phoenix terminal power supply input, support 9~36V

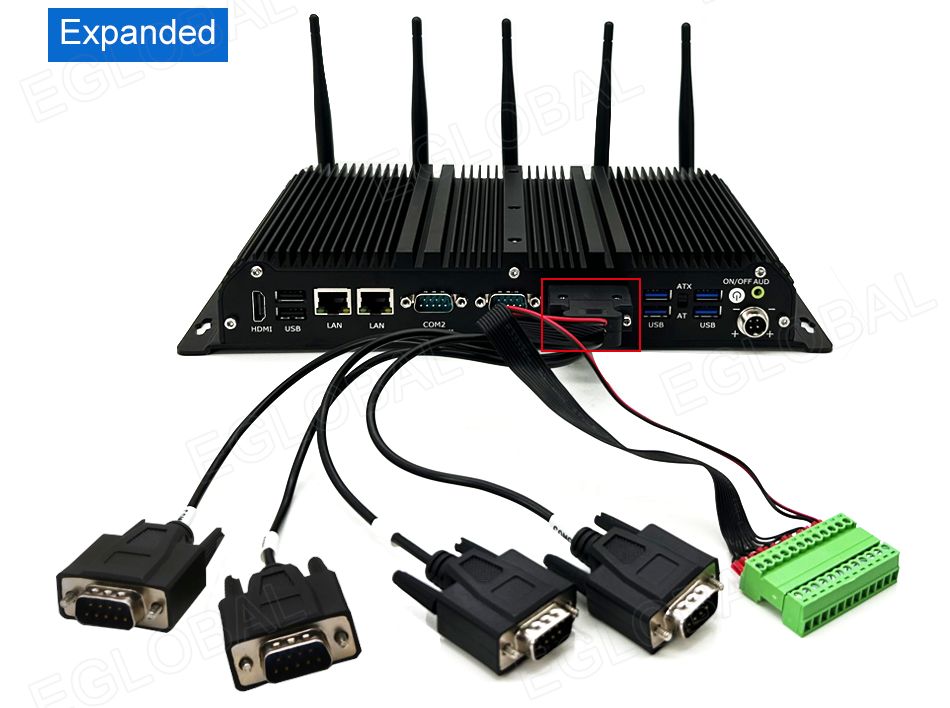

EXT IO
1 x Integrated 4-way 3-wire COM,
10-way GPIO,
1 x Remote Switch
USB
J4125/J6412:
4 x USB3.0,
2 x USB2.0,
8th/10th/11th:
2 x USB3.0,
4 x USB2.0
Display
1 x HDMI 1.4
LAN
2 x RJ45 Intel 2.5G LAN(support four extended network ports)
COM
2 x RS232/RS422/RS485 COM,
4 x Expanded RS232 COM
ATX
1 x ATX
Audio
1 x Audio
SIM
1 x embedded SIM card slot onboard
Storage:
M.2
1 x M.2 slot for SATA 2242/2260/2280 SSD
M.2
1 x M.2 slot for SATA/NVME 2280 SSD
SATA
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

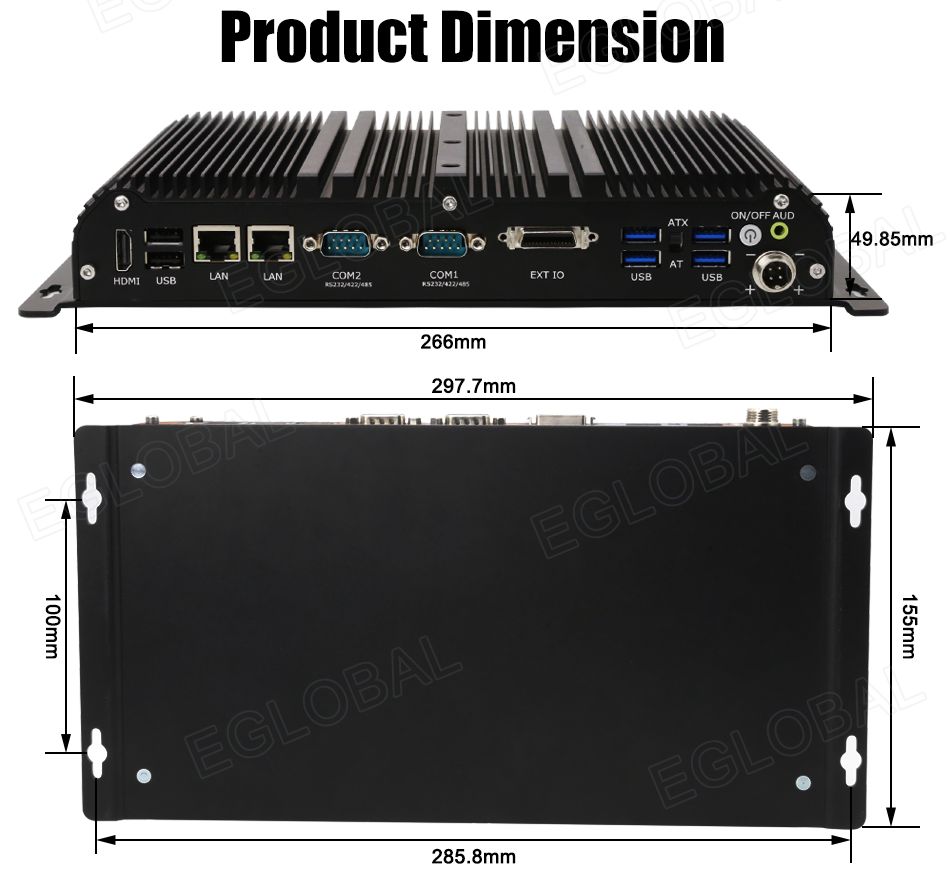

Product Dimension & Details:
Size
300*155*50mm
Weight
Net 1.8 kg, Gross 2 kg
Shell
Black color aluminum alloy(any customized color for bulk order)
