Fanless Industrial Mini C

Name: Fanless Industrial Mini Computer G8 Intel i7 DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G
Brand: Eglobal
SKU: G8

SKU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

As low as PLN 5,259.00

In stock

Only %1 left

Introducing the Fanless Industrial Mini Computer G8 with Intel i7 processor, DDR4 memory, SSD storage, rich interfaces like RS232/RS485/RS422, GPIO, and more. Designed for industrial-grade fields with a durable aluminum alloy shell and boasting a super long lifetime. Perfect for 24/7 operations, backed by a 3-year warranty.

Notify me when the price drops

Fanless Industrial Mini Computer G8 Intel i7 DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G is available to buy in increments of 1

Categories: Windows mini PC, Industrial PC, Industry

Free Delivery

For all oders over $110

14 Days Return

For any reason

Secure Payment

100% secure payment

24/7 Support

Dedicated support

Details

Hightlights

Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade field, work as long as 24 hours.
High-end Industrial PC less than 1% defective rate, super long lifetime and 3 years warranty.
2xIntel i201/i211 Gigabit RJ45 LANs, 6 DB9 COM, 4 COM support RS422/RS485, PS/2, GPIO and LPT - rich interfaces for different equipments.
One embedded SIM card salot onboard for 3G/4G wireless module.
Support VGA + HDMI dual display output synchronously.
Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.

Specification:

Basic Information
CPU (optional):	Intel Core i5-6360U (4M Cache, 2 core 4 threads, 2.00 GHz up to 3.10 GHz, TDP 15W, Intel® Iris® Graphics 540) Intel Core i7-6567U (4M Cache, 2 core 4 threads, 3.30 GHz up to 3.60 GHz, TDP 28W, Intel® Iris® Graphics 550) Intel Core i5-7267U (4M Cache, 2 core 4 threads, 3.10 GHz up to 3.50 GHz, TDP 28W, Intel® Iris® Graphics 650) Intel Core i5-8250U (6M Cache 4 core 8 threads, 1.60 GHz up to 3.40 GHz, TDP 15W, Intel® UHD Graphics 620) Intel Core i5-10210U (6M Cache, 4 core 8 threads, 1.60 GHz up to 4.20 GHz, TDP 15W, Intel® UHD Graphics) Intel Core i7-10510U (8M Cache, 4 core 8 threads, 1.80 GHz up to 4.90 GHz, TDP 15W, Intel® UHD Graphics)
TDP	Refer to CPU
BIOS	American Megatrends Inc.
Chipset	Refer to CPU
Memory	2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB
OS	Windows 7/Windows 8/Windows 10/Linux, WES7/10
PXE	YES
Audio	Intel High Definition Audio Controller
Network	Intel(R) i210/i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN
Video	Refer to CPU
Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 3pin phoenix terminal power block DC In, support 9~36V
Button	1 x ATX/AT quick switch
USB	4 x USB3.0, 2 x USB2.0
PS/2	1 x PS/2(keyboard and mouse 2 in 1)
Display	1 x VGA, 1 x HDMI
LAN	2 x Intel GbE RJ45 LAN
COM	6 x DB9 COM(4xCOM support RS422/RS485)
GPIO	1 x GPIO( 7pin input, 7pin output)
LPT	1 x LPT
Audio	1 x MIC, 1 x SPK
SIM	1 x embedded SIM card slot onboard
Others	1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for NVME 2280 SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module	1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module 1 x Extended IO, support LPC, USB, PCIE
Antenna	2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input	AC 100-240V/50-60Hz
Output	DC +9V~+36V, recommend 12V/5A
Operating Temperature	-20/+60 Centigrade
Storage Temperature	-30/+70 Centigrade
Storage Humidity	10%~90% @30 Centigrade (non-condensing)
Product Dimension & Details
Size	24915086mm
Weight	NW 2.2KG, GW 3.5KG
Shell	Black color aluminum alloy (any customized color for bulk order)
Mounting	4 mounting holes on case
Cooling Mode	Fanless
Functions	Watchdog, One key reset, AWAL, RTC, WOL(ATX mode)
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag 2xWi-Fi antennas, 1xHDMI cable
Optional	1xUser Manual, 1xLong Screws Bag

EGLOBAL Industrial Mini Computer Wide application / stable operation / lower power consumption 6 DB9COM 4 COM RS422/RS485 2*lntel LAN Gigabit Ethernet Passive Cooling Dustproof Design 4G Module Expanded Windows & Linux 24/7 Working One key Reset 14pin GPIO, LPT

OEM Service | Making your logo into the booting interface for free, please leave message on your order if needed.

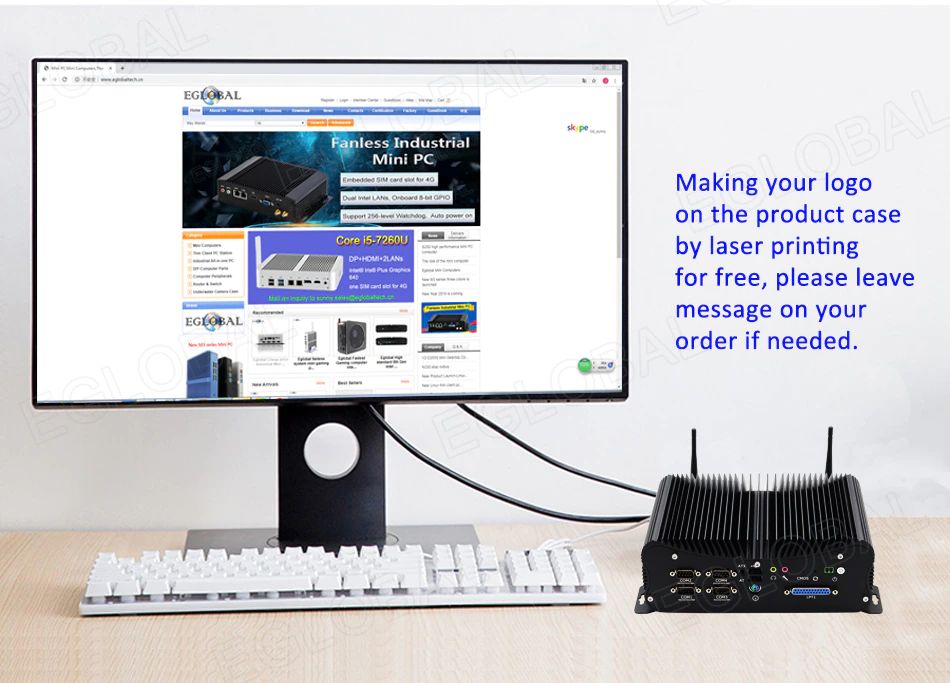

Making your logo on the product case by laser printing for free, please leave message on your order if needed.

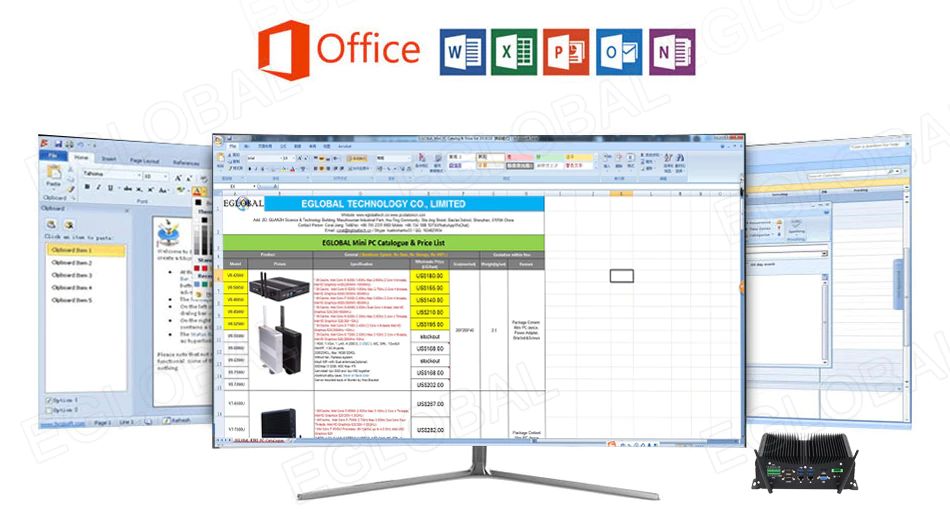

Microsoft Office

PS Ai f d Industrial Mini Computer

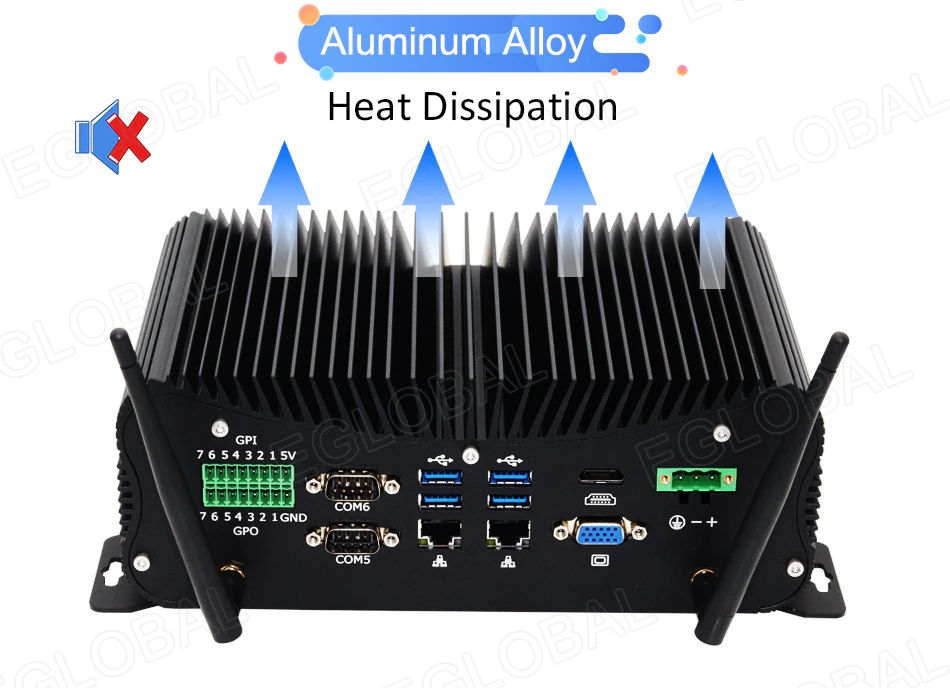

Aluminum Alloy Heat Dissipation

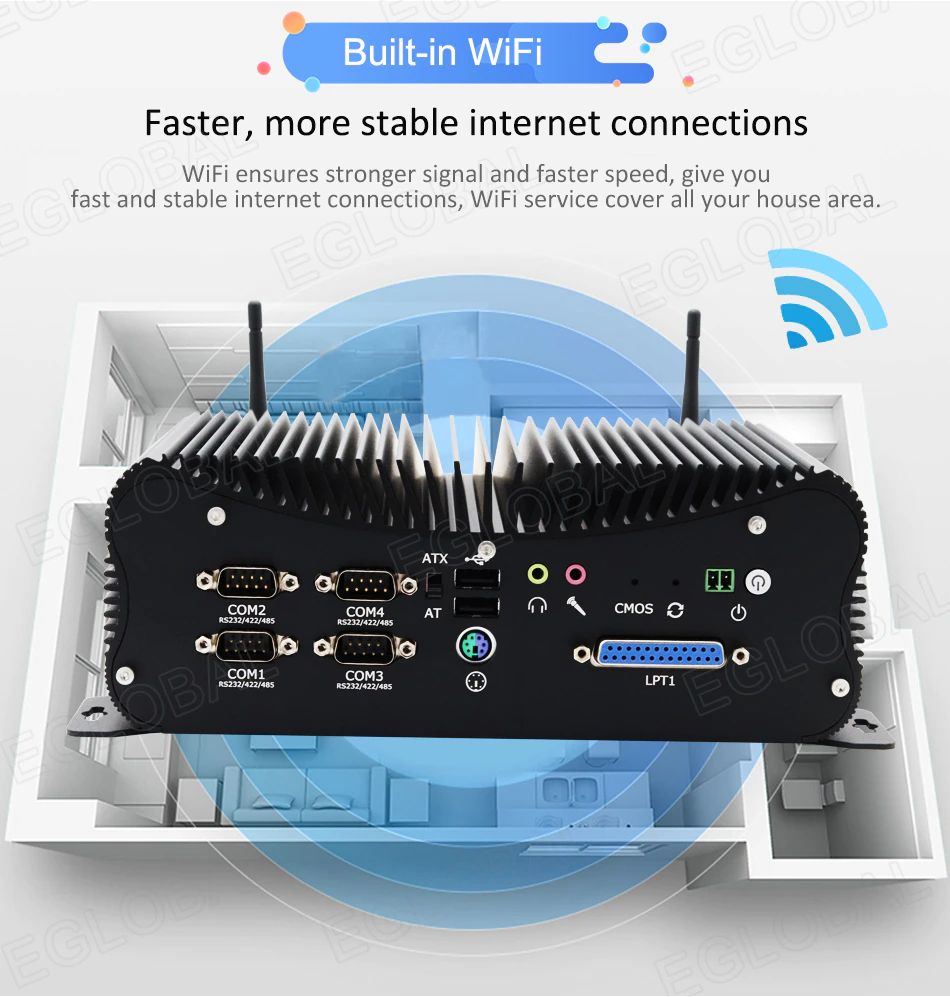

Faster, more stable internet connections WiFi ensures stronger signal and faster speed, give you fast and stable internet connections, WiFi service cover all your house area. Built-in WiFi

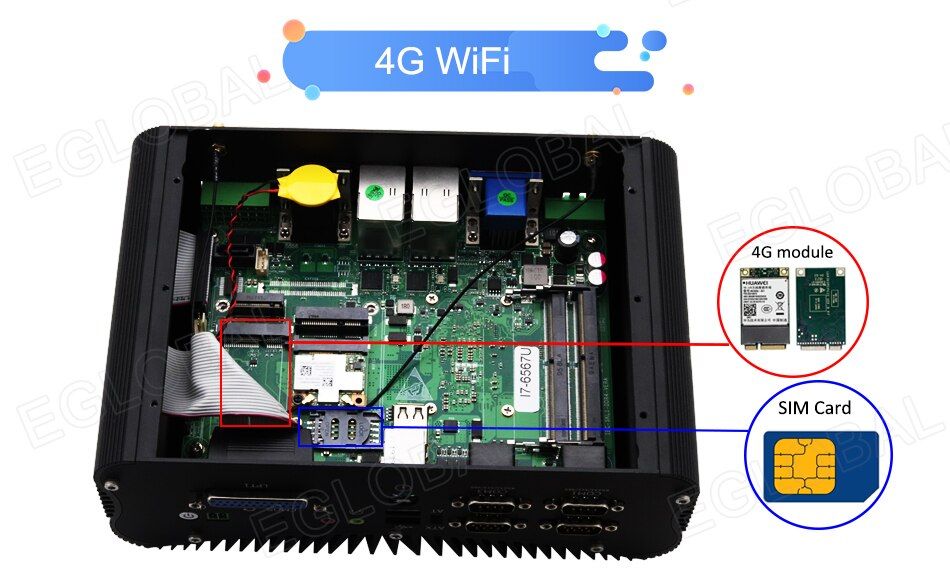

4G WiFi | 4G module SIM Card

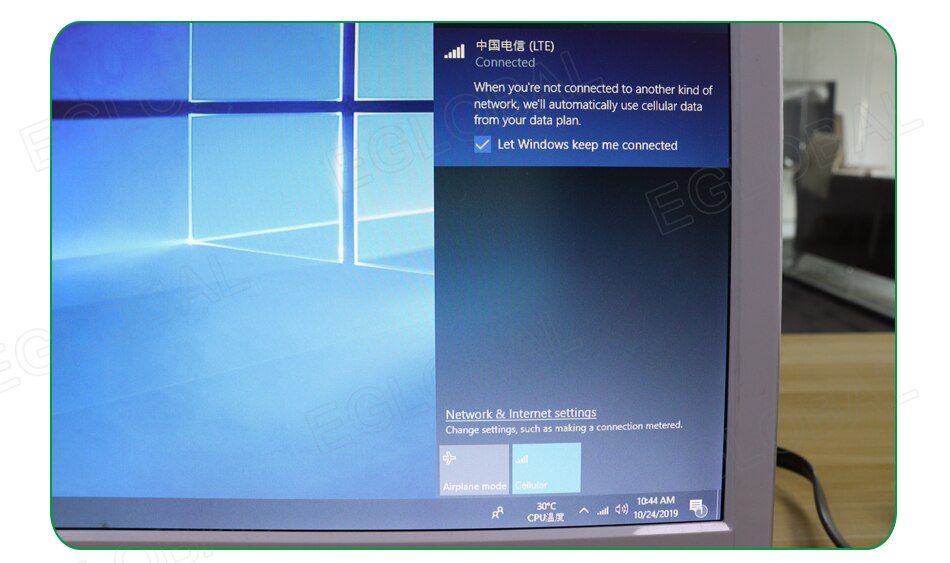

(LTE) Connected When you’re not connected to another kind of network, we’ll automatically use cellular data from your data plan. Let Windows keep me connected Network & Internet settings Change settings, such as making a connection metered.

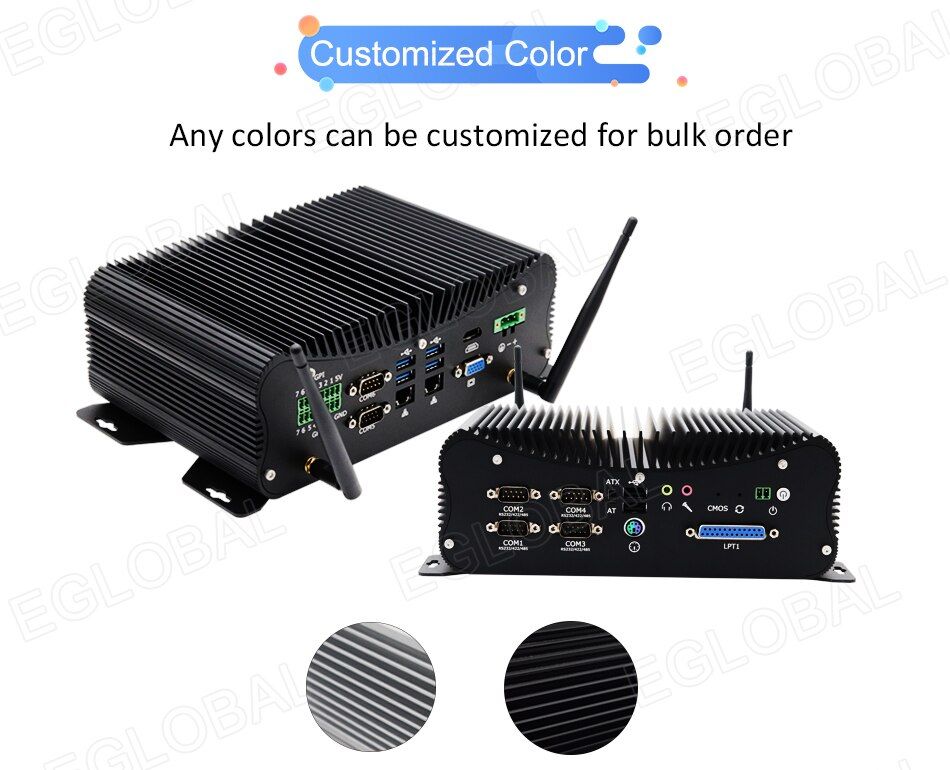

Any colors can be customized for bulk order

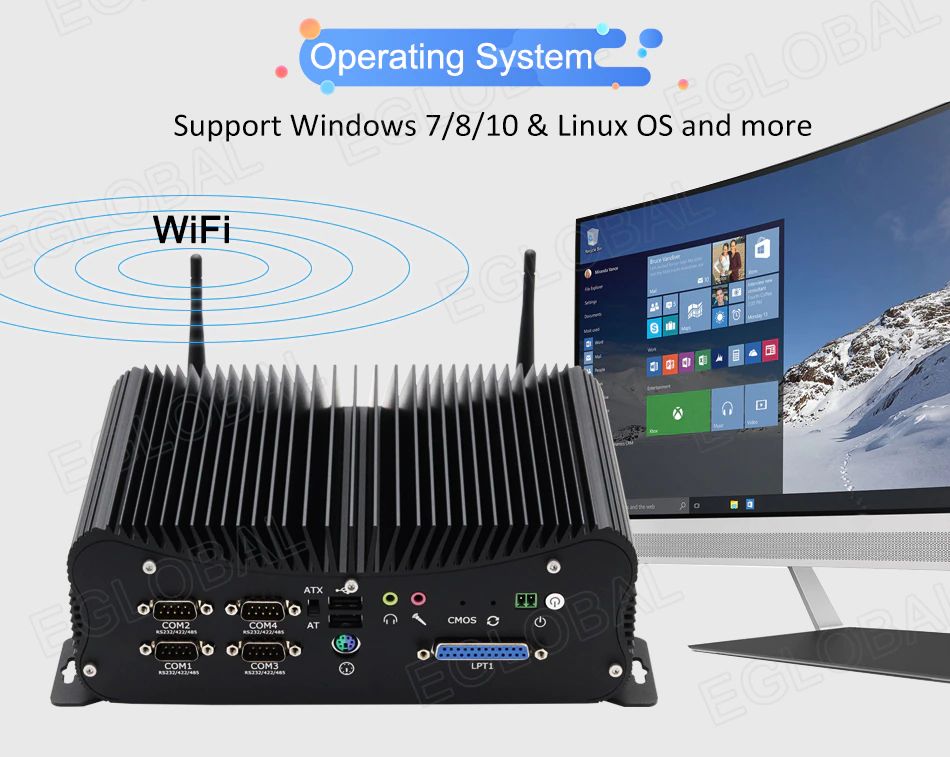

Operation Systems | Support Windows 7/8/10 & Linux OS and more

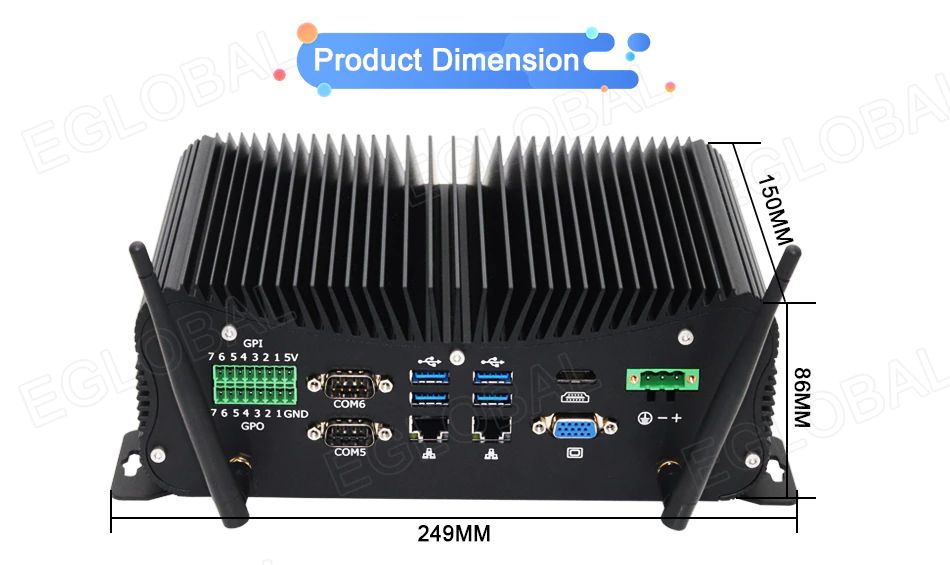

Product Dimension | 249MM x 150MM x 86MM

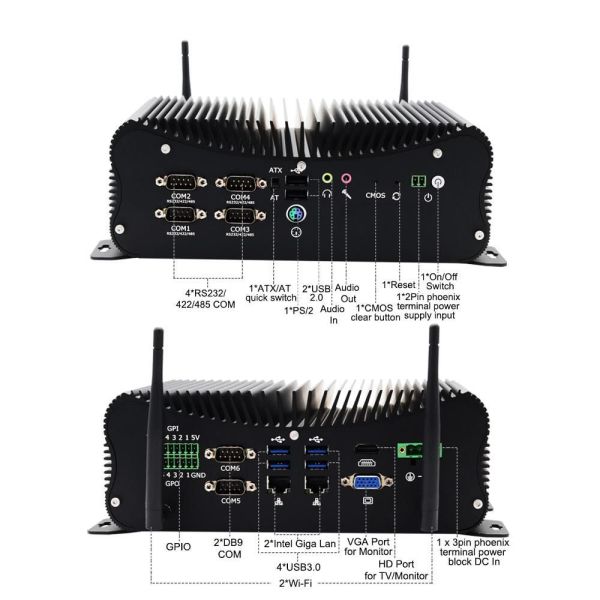

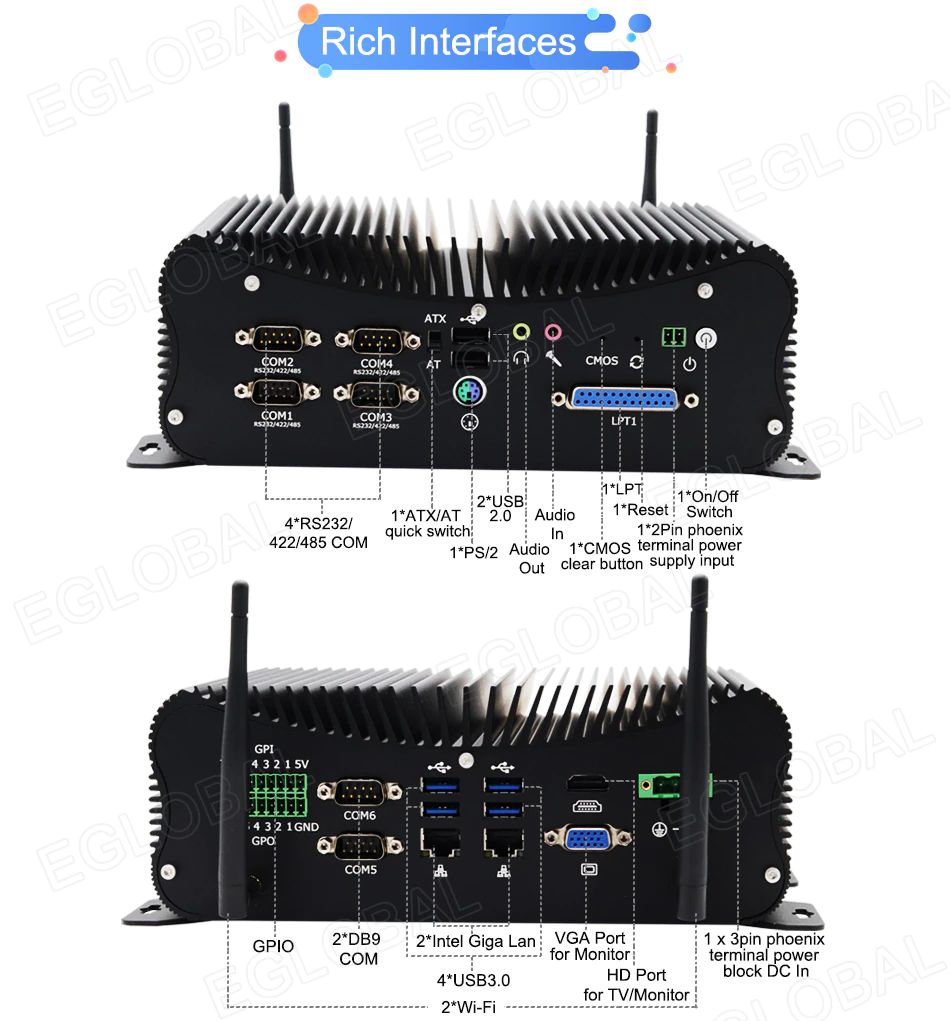

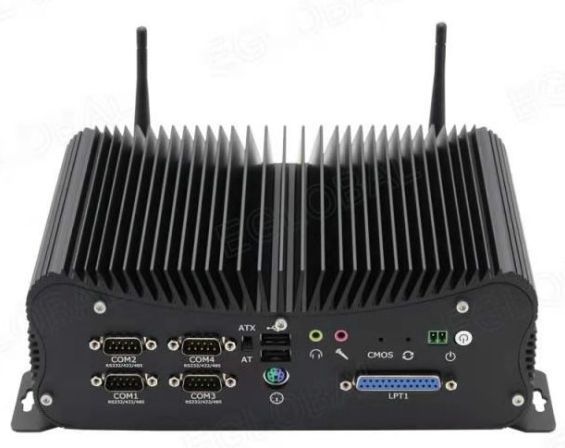

Rich Interfaces 4*RS232/ 422/485 COM 1* ATX/AT quick switch 2*USB 2.0 1*PS/2 Audio Out Audio In 1*LPT 1*Reset 1*On/Off ! Switch rcMOS t clear button 1*2Pin phoenix terminal power n supply input GPIO 2*DB9 COM 2*lntel Giga Lan VGA Port | for Monitor 4*USB3.0 2*Wi-Fi HD Port for TV/Monitor 1 x 3pin phoenix terminal power block DC In

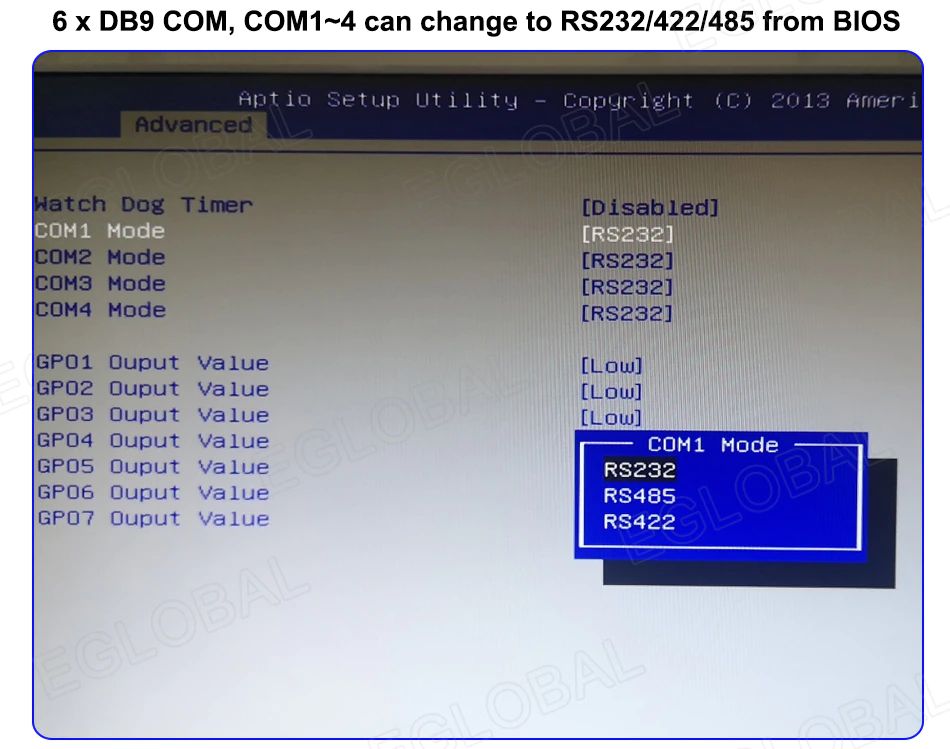

6 x DB9 COM, COM1-4 can change to RS232/422/485 from BIOS [Advanced] Match Dog Timer [Disabled] COM2 Mode [RS232] COM3 Mode [RS232] COM4 Mode [RS232] GP01 Ouput Value [Low] GP02 Ouput Value [Low] GP03 Ouput Value [Low] GP04 Ouput Value GP05 Ouput Value GP06 Ouput Value GP07 Ouput Value

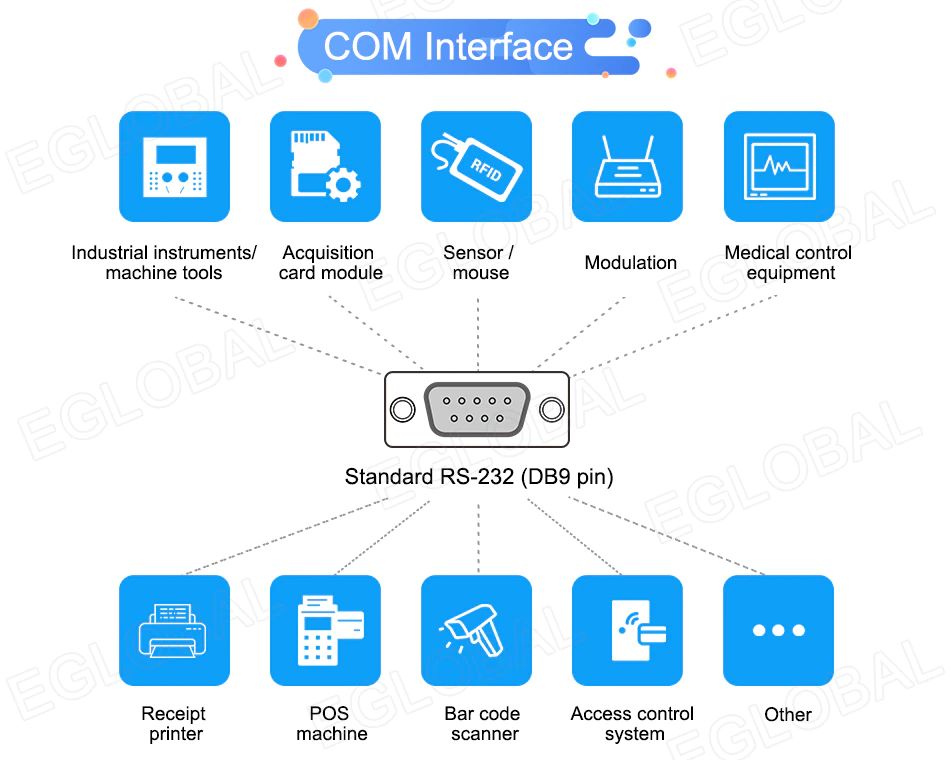

COM Interface Industrial instruments/ machine tools Acquisition card module Sensor/ mouse Modulation Medical control equipment Standard RS-232 (DB9 pin) Receipt printer POS machine Bar code scanner Access control system Other

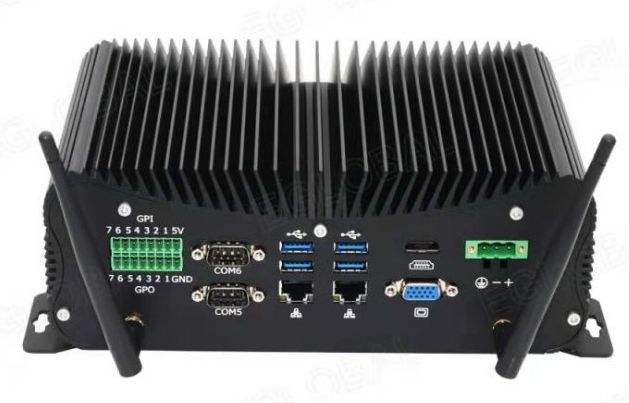

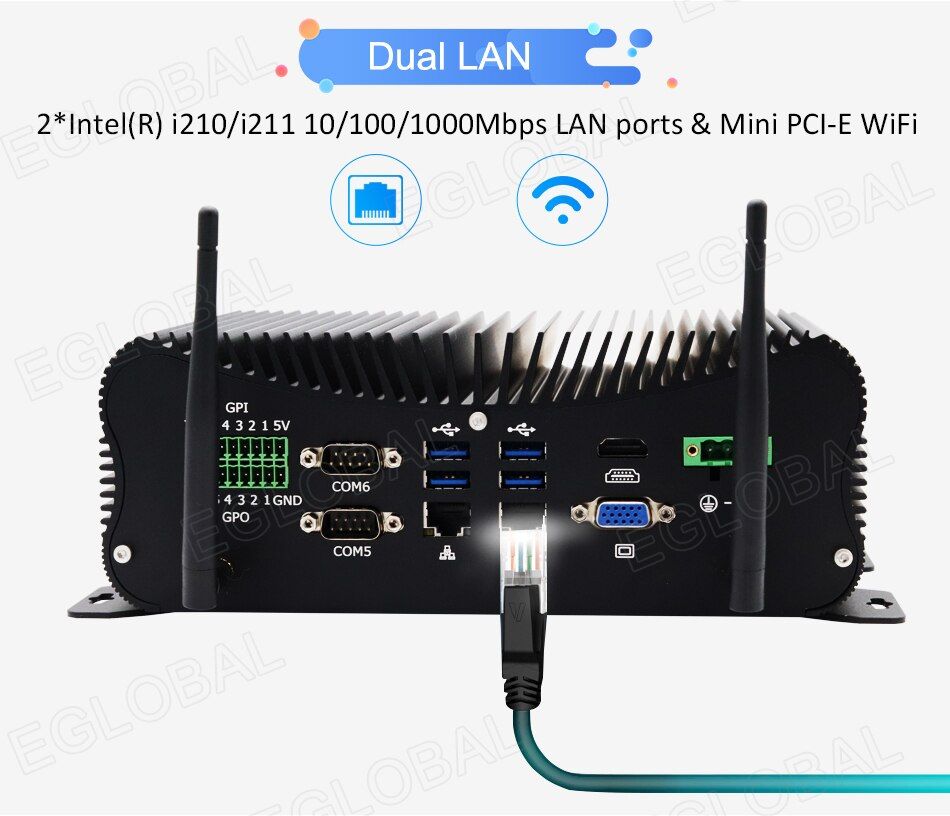

Dual LAN | 2*lntel(R) i210/i211 10/100/1000Mbps LAN ports & Mini PCI-E WiFi

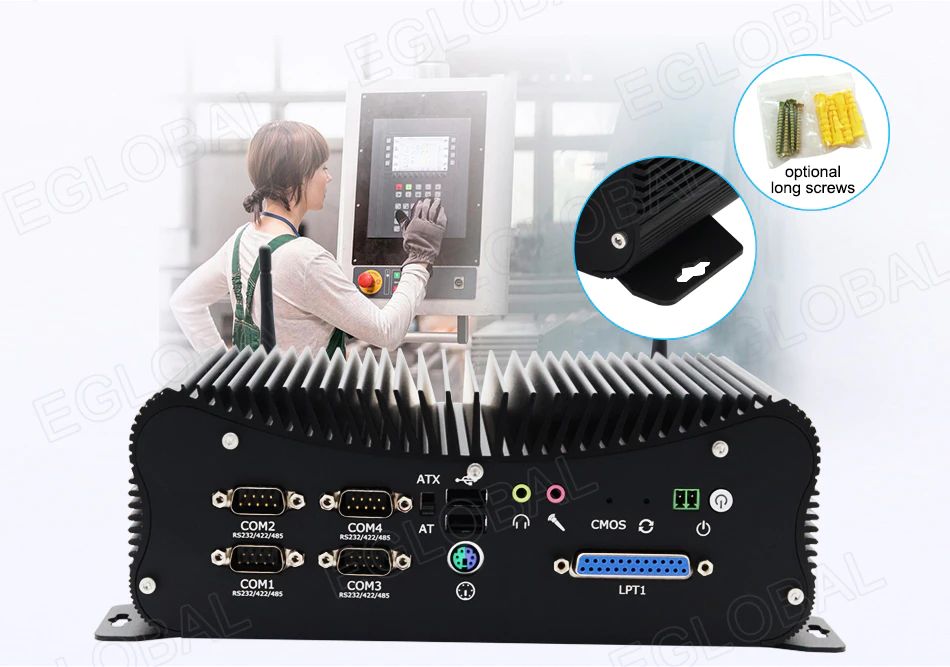

optional long screws

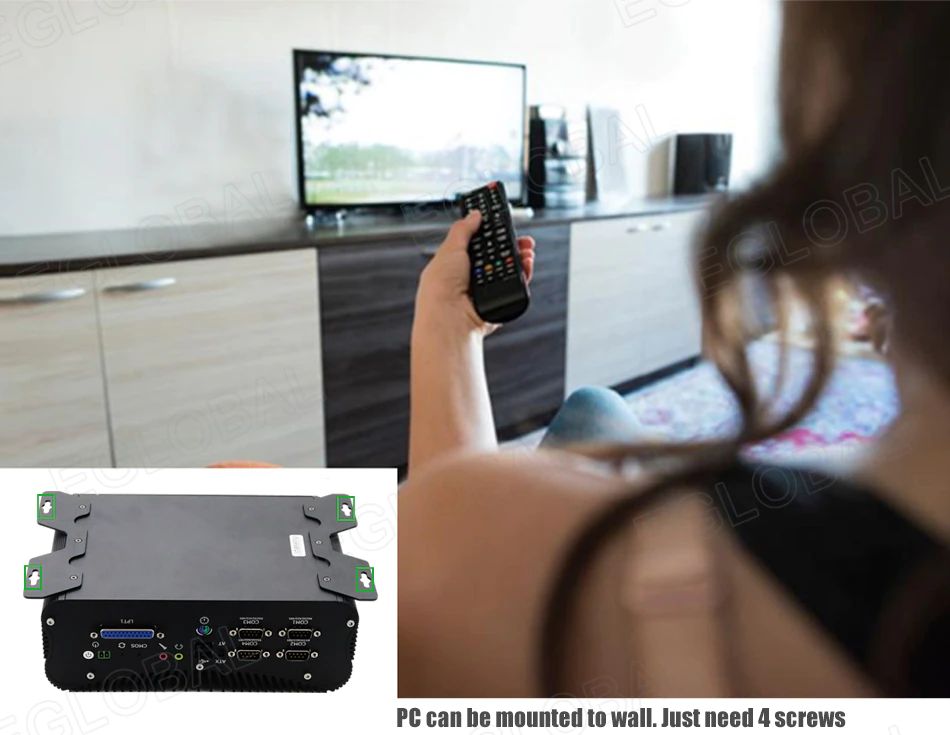

PC can he mounted to wall. Just need 4 screws

Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

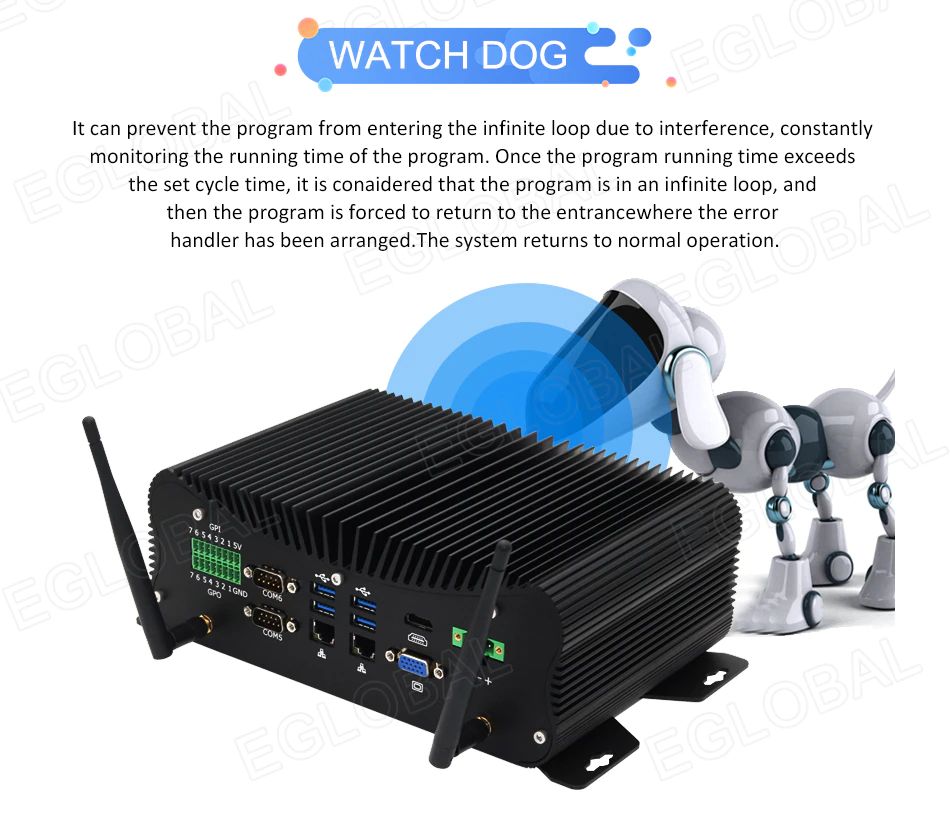

WATCH DOG | It can prevent the program from entering the infinite loop due to interference, constantly monitoring the running time of the program. Once the program running time exceeds the set cycle time, it is conaidered that the program is in an infinite loop, and then the program is forced to return to the entrancewhere the error handler has been arranged.The system returns to normal operation.

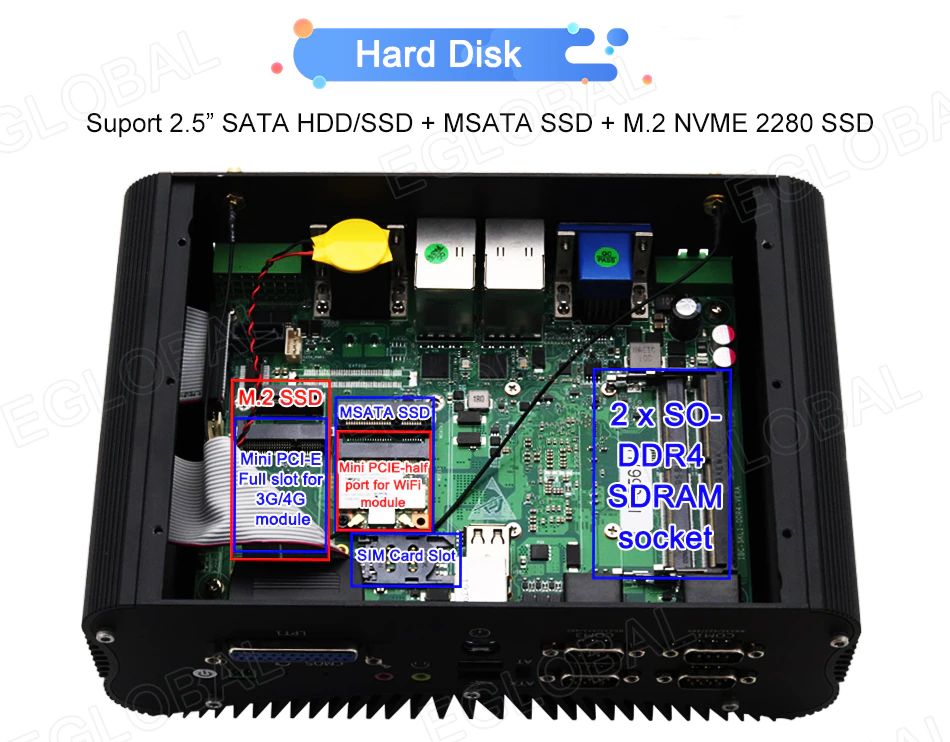

Hard Disk | Suport 2.5” SATA HDD/SSD + MSATA SSD + M.2 NVME 2280 SSD

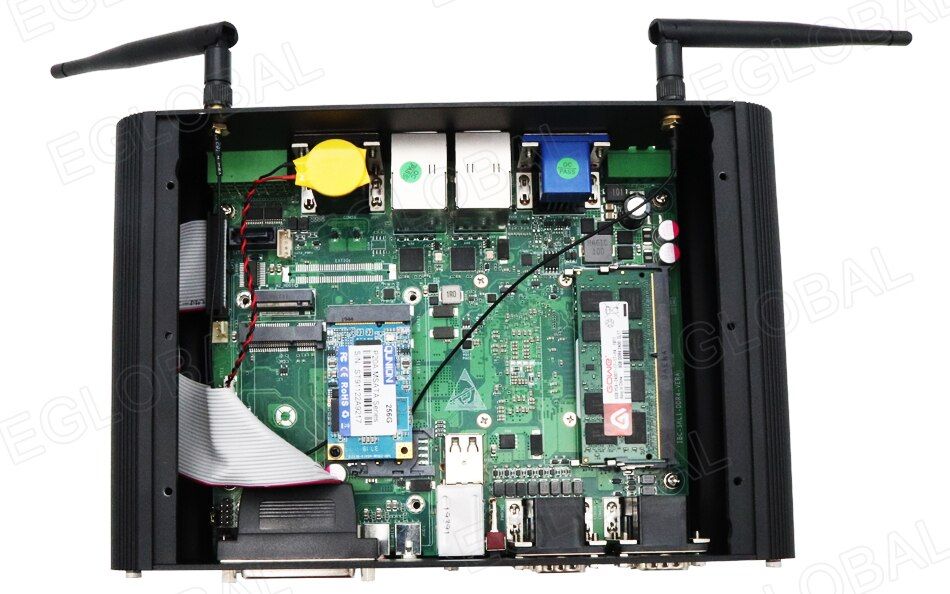

Inside of Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

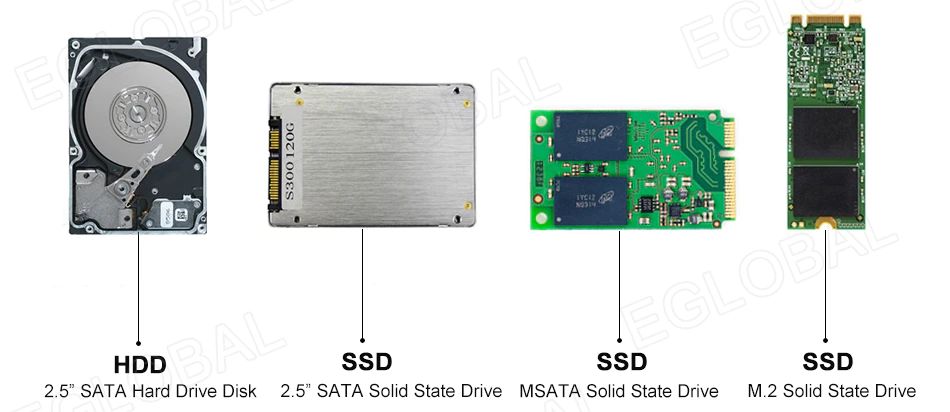

HDD 2.5” SATA Hard Drive Disk, SSD 2.5” SATA Solid State Drive, SSD M.2 Solid State Drive, SSD MSATA Solid State Drive

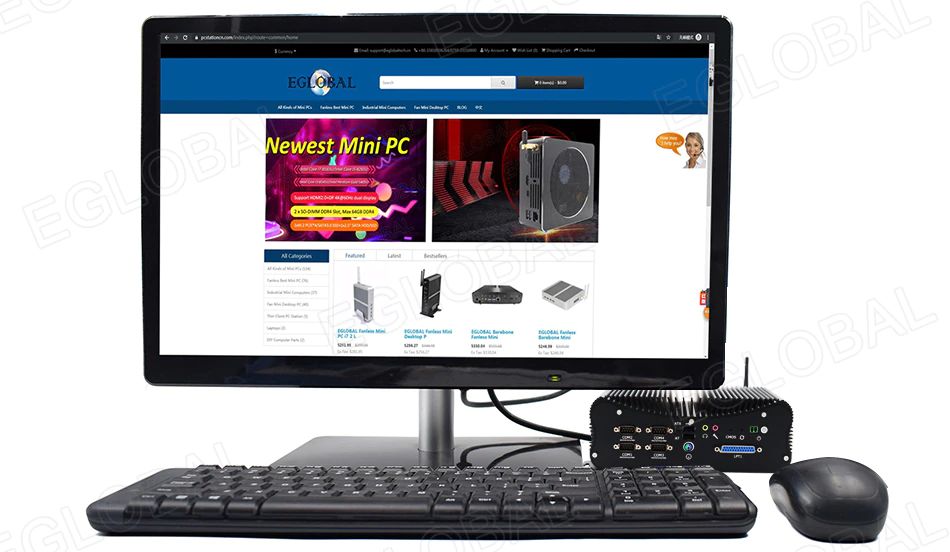

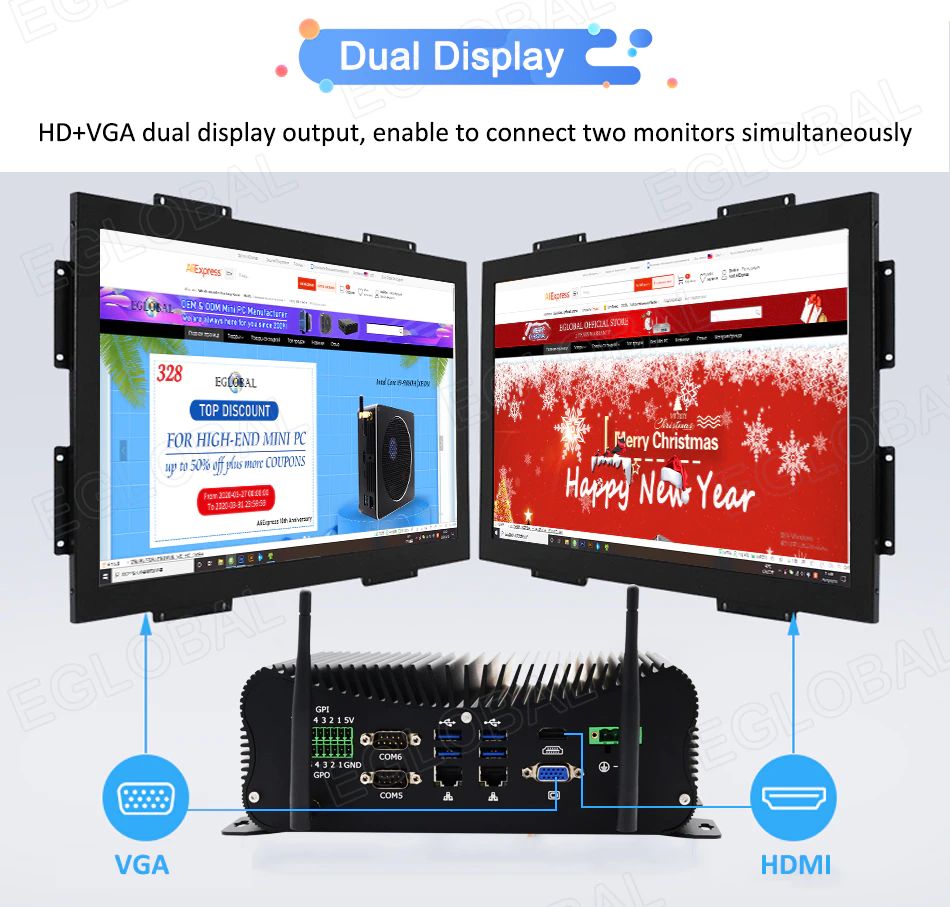

Dual Display: HD+VGA dual display output, enable to connect two monitors simultaneously VGA HDMI

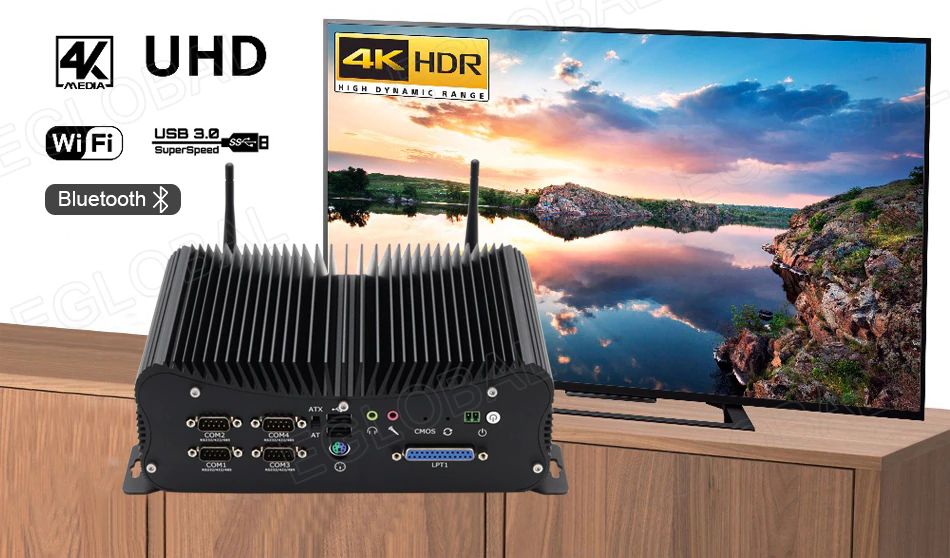

4K UHD WiFi USB 3.0 SuperSpeed Bluetooth

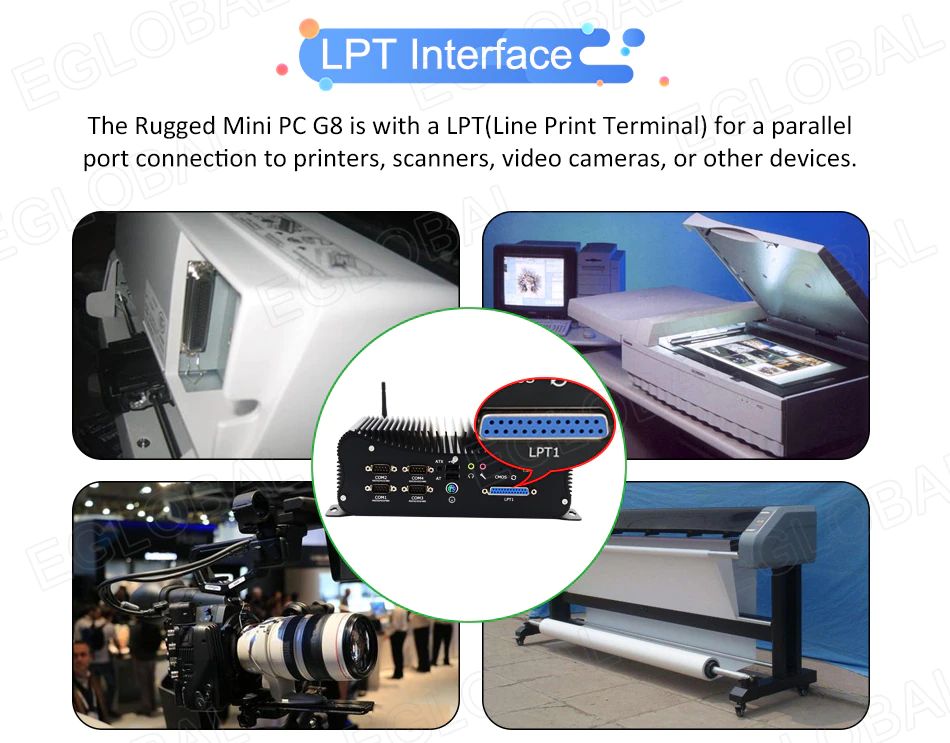

LPT Interface: The Rugged Mini PC G8 is with a LPT(Line Print Terminal) for a parallel port connection to printers, scanners, video cameras, or other devices.

Application: Industrial premises Entertainment Commercial organization Financial Institutions Surveillance system Medical equipment Digital signage Vending machines Smart robot

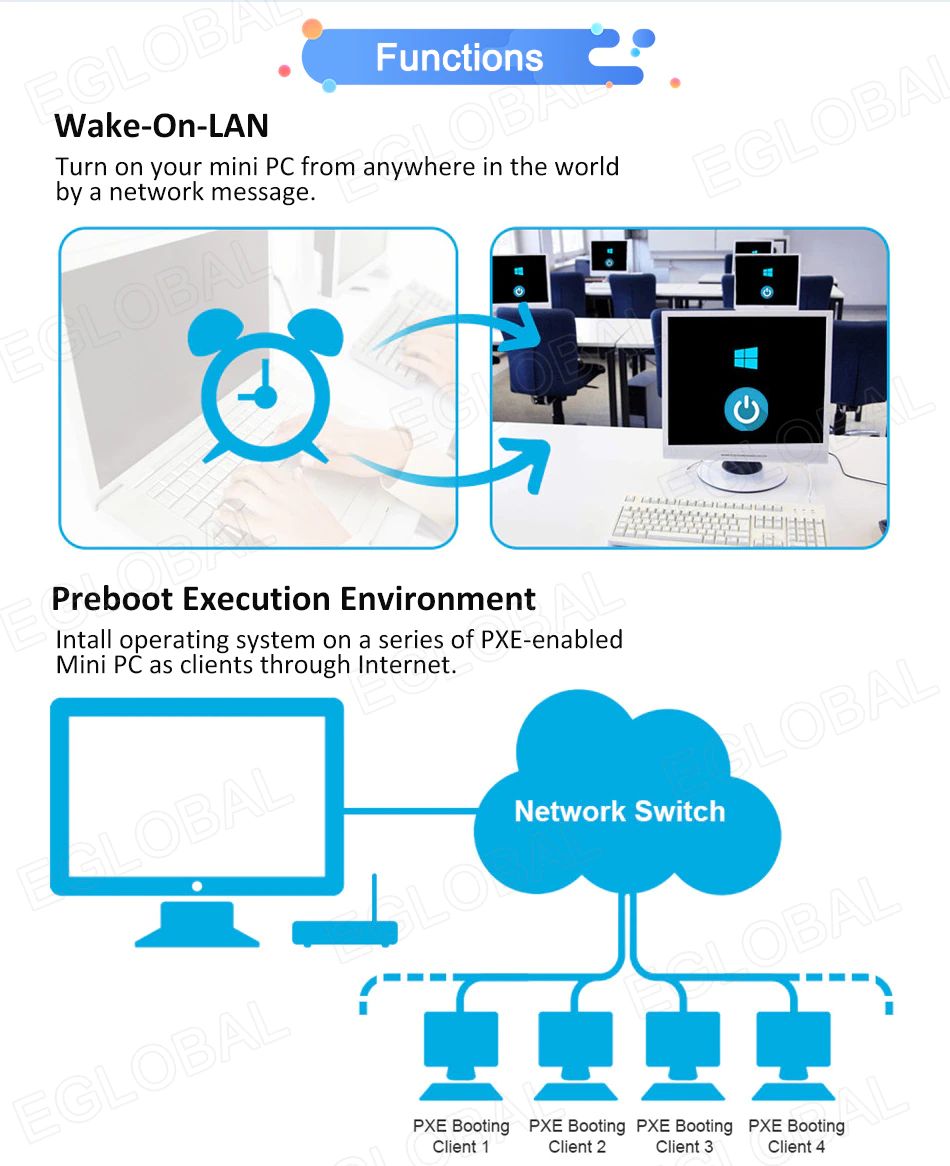

Wake-On-LAN Turn on your mini PC from anywhere in the world by a network message. Preboot Execution Environment Intall operating system on a series of PXE-enabled Mini PC as clients through Internet. PXE Booting PXE Booting PXE Booting PXE Booting Client 1 Client 2 Client 3 Client 4

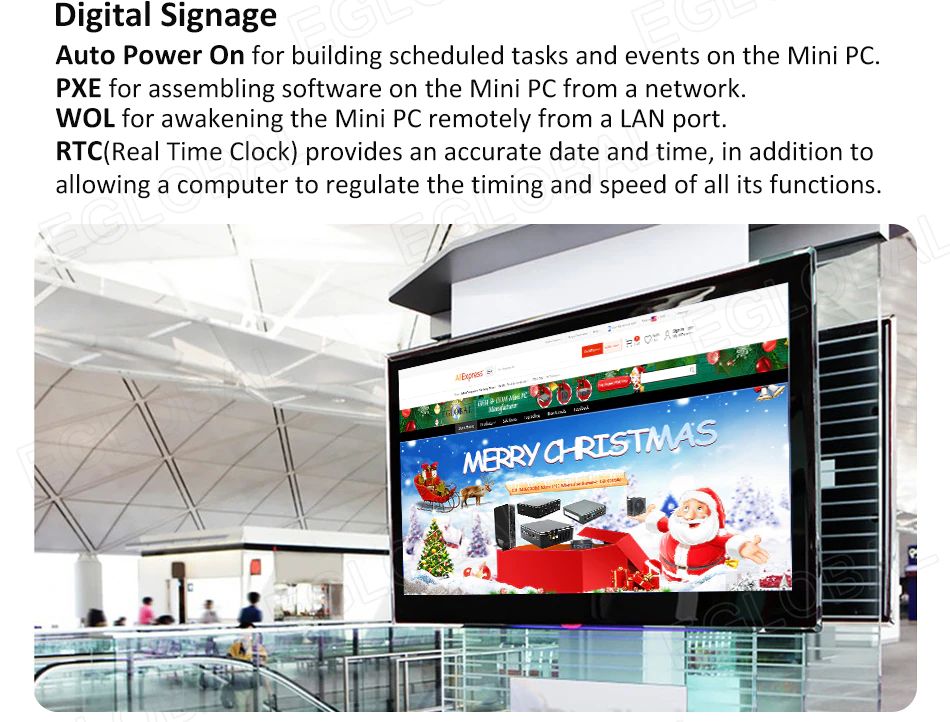

Digital Signage Auto Power On for building scheduled tasks and events on the Mini PC. PXE for assembling software on the Mini PC from a network. WOL for awakening the Mini PC remotely from a LAN port. RTC(Real Time Clock) provides an accurate date and time, in addition to allowing a computer to regulate the timing and speed of all its functions

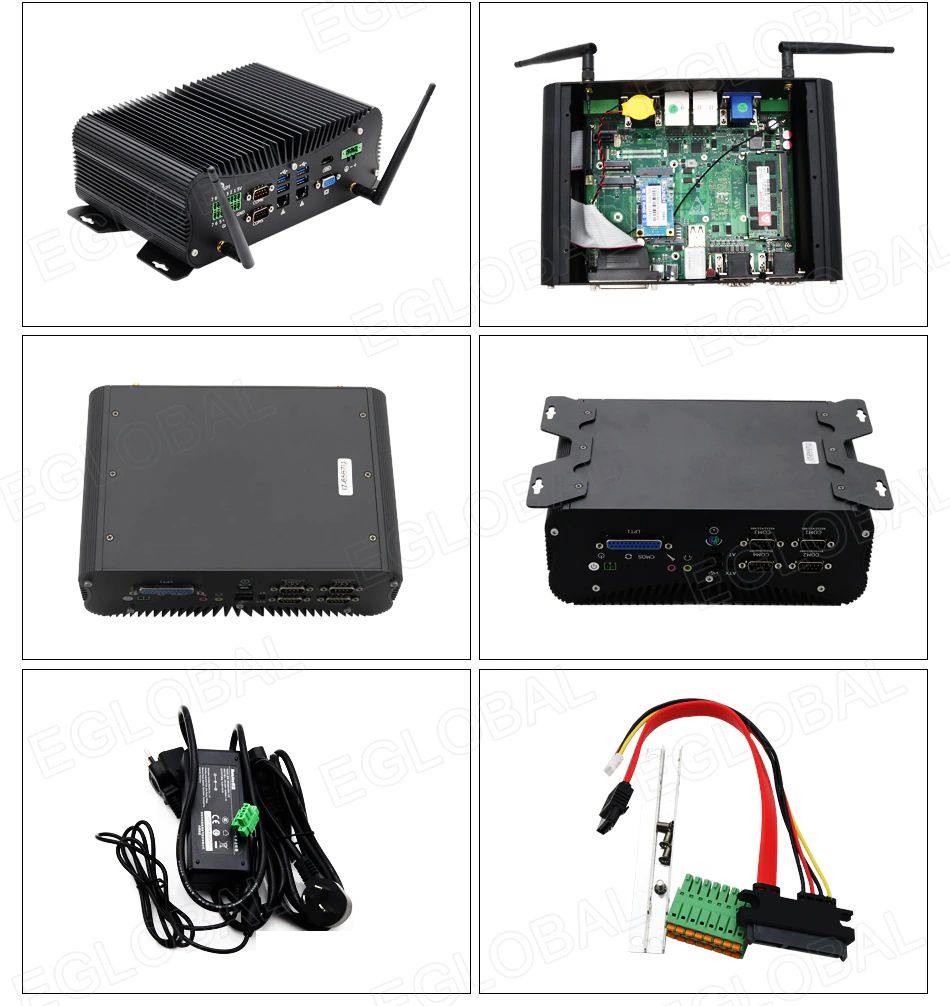

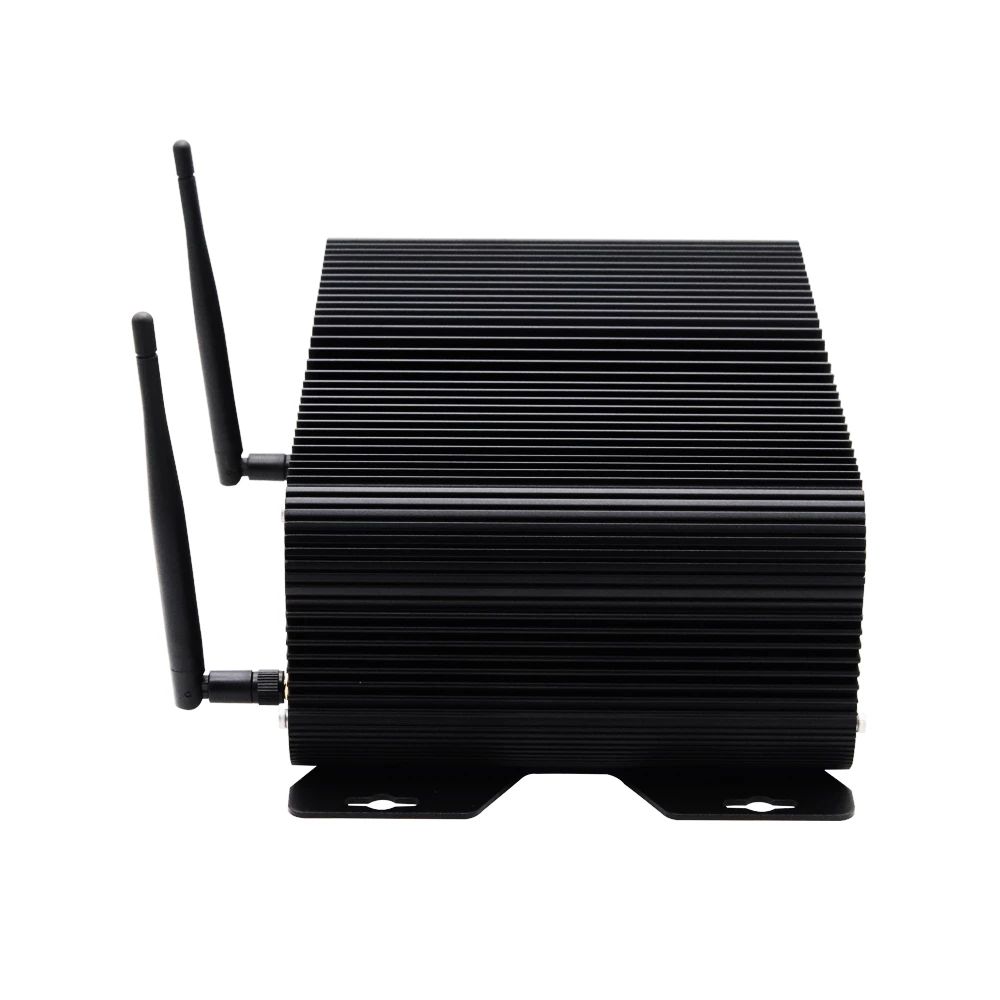

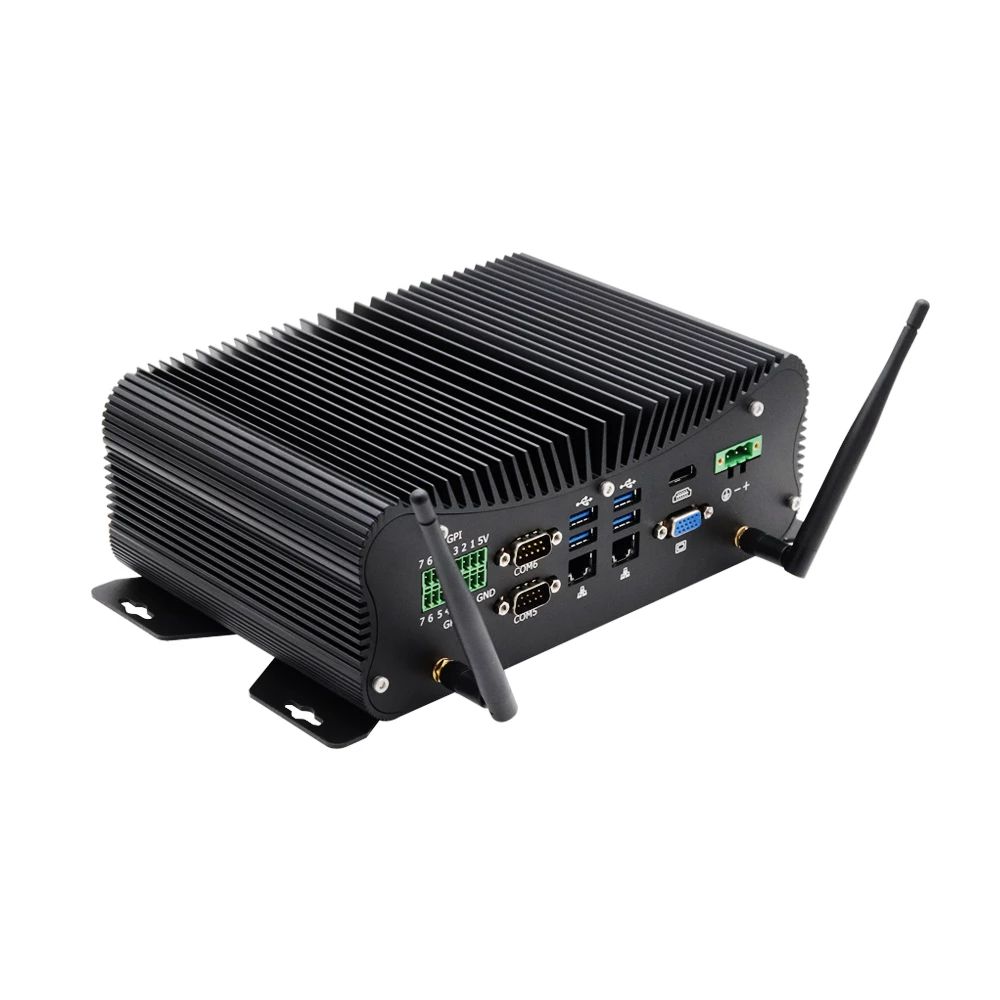

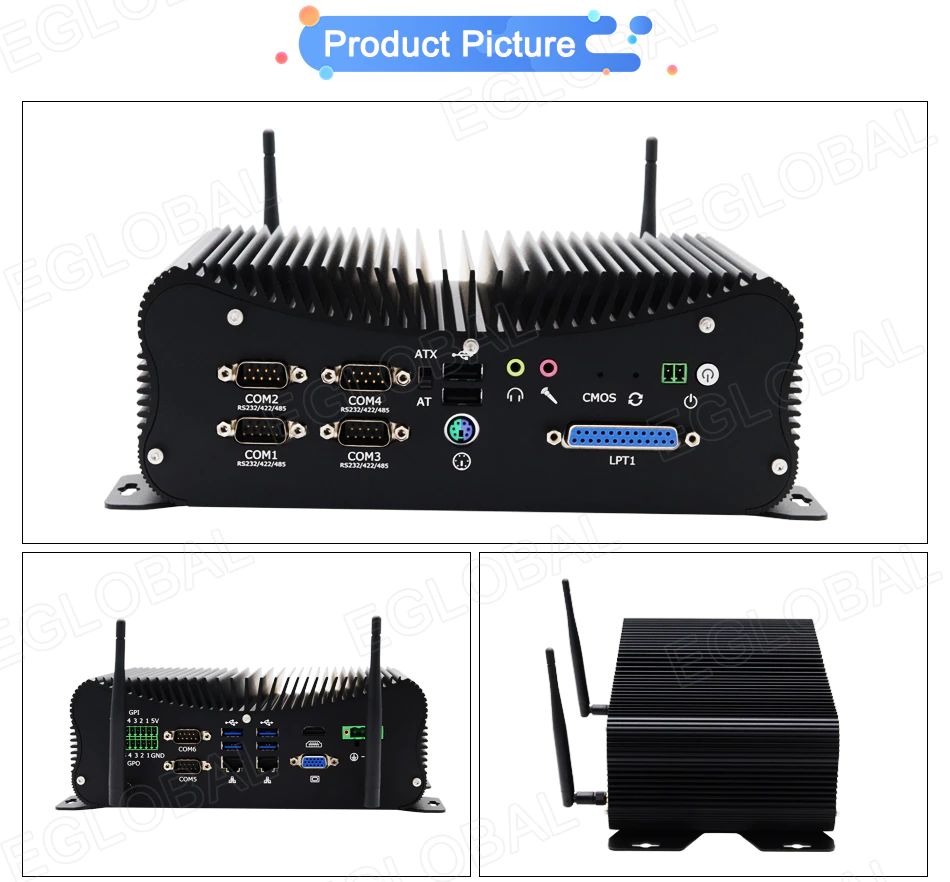

Product Picture of Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

Product Picture Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

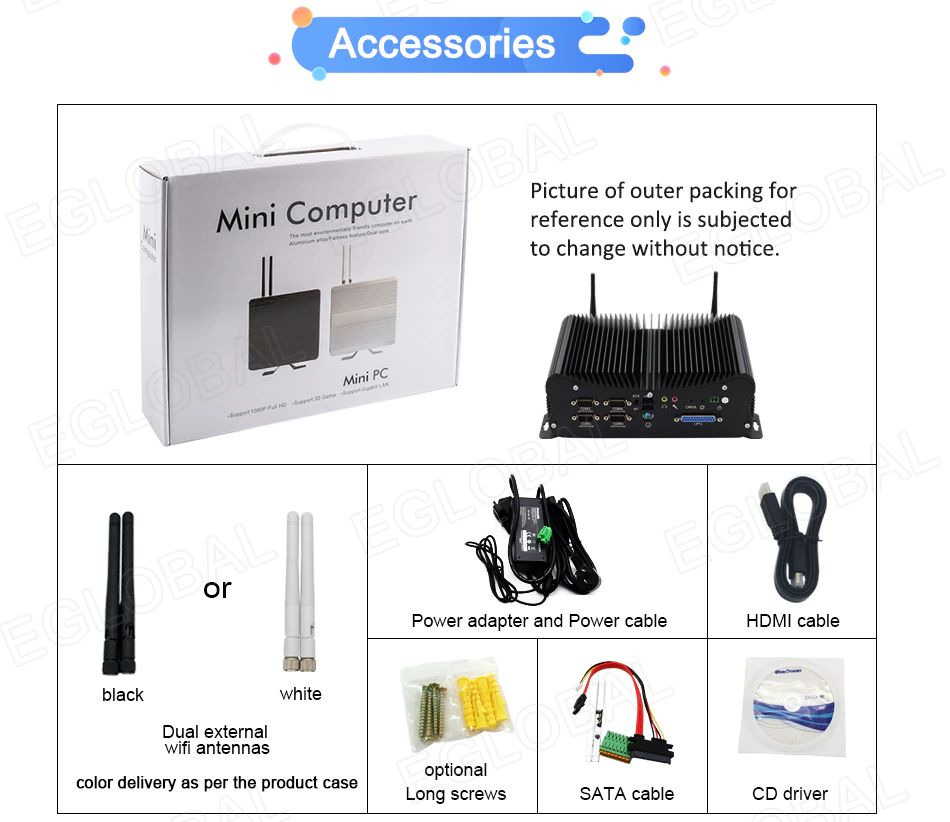

Accessories Mini Computer Picture of outer packing for reference only is subjected to change without notice. black white Dual external wifi antennas color delivery as per the product case Power adapter and Power cable HDMI cable optional Long screws SATA cable CD driver

More Information

Manufacturer

Eglobal

EAN-code

2437452614277

Graphics Card

Intel® UHD Graphics

HDD

SSD SATA 2.5", SSD mSATA, M.2 NVMe

Сonnection type

Wireless+Wired

Bluetooth

Yes

I/O

Switch	1 x Power On/Off Switch
Power	1 x 3pin phoenix terminal power block DC In, support 9~36V
Button	1 x ATX/AT quick switch
USB	4 x USB3.0, 2 x USB2.0
PS/2	1 x PS/2(keyboard and mouse 2 in 1)
Display	1 x VGA, 1 x HDMI
LAN	2 x Intel GbE RJ45 LAN
COM	6 x DB9 COM(4xCOM support RS422/RS485)
GPIO	1 x GPIO( 7pin input, 7pin output)
LPT	1 x LPT
Audio	1 x MIC, 1 x SPK
SIM	1 x embedded SIM card slot onboard
Others	1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input
