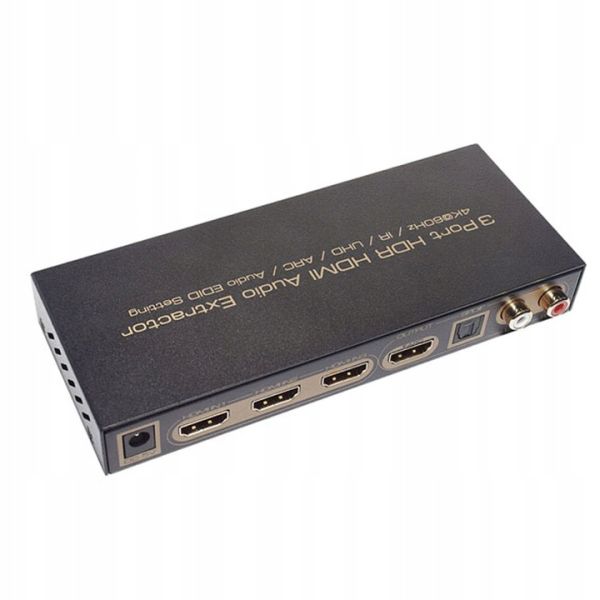

Switcher HDMI 3x1 4K TOSL

Our series of HDMI converters, switches, extension cords, matrices, and splitters is designed to make A/V device use more convenient, more comfortable, more efficient, and more economical.

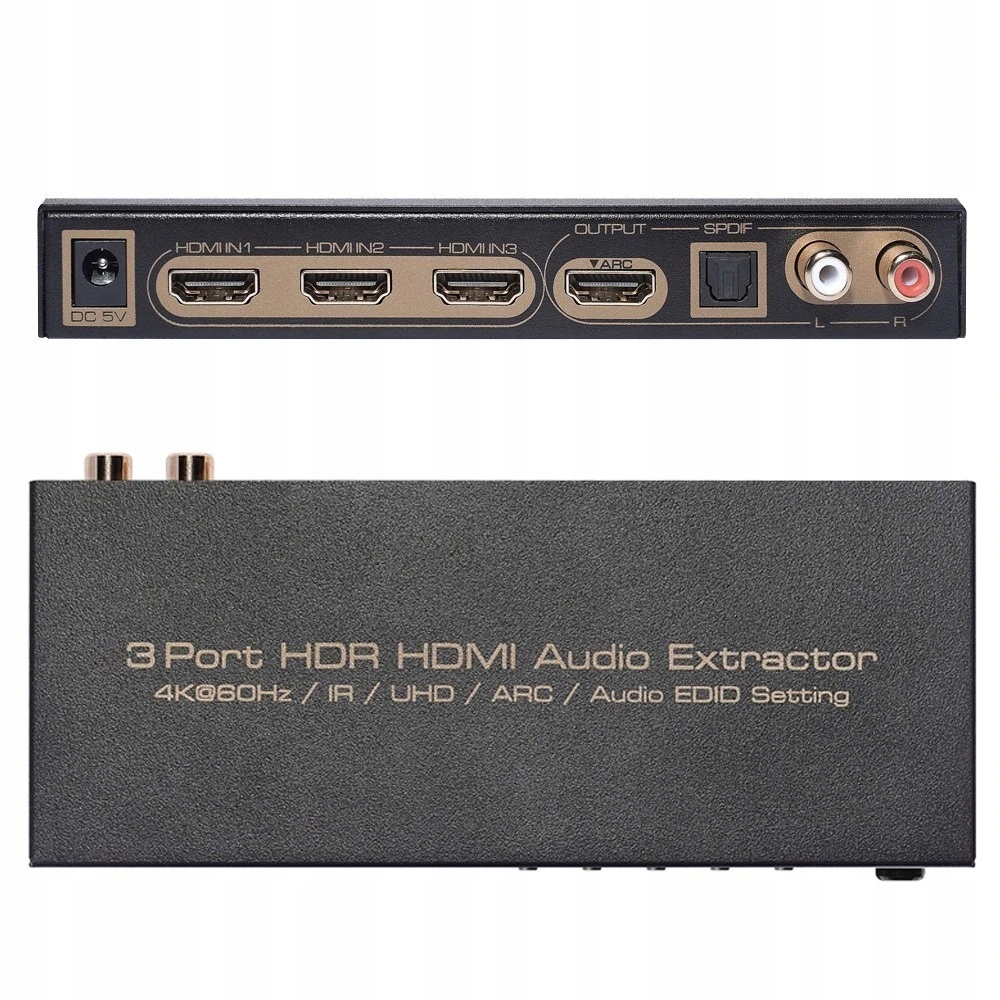

The 3x1 HDMI Audio Extractor Switch is a 3-port HDMI Audio Extractor with support for ARC, 3D, and HDR, 4Kx2K, which can easily switch three HD sources to one HD display. Also, each audio source has an SPDIF and L/R audio channel output. The switch supports the ARC function, which allows TV audio to be sent back to the AV receiver.

Features

• Three HDMI signal inputs pass to one HDMI receiver device
• Any HD signal source can output to the SPDIF or L/R port at full speed.
• HDR support
• Support for 4K*2K resolution @ 60hz
• Video format support: 4Kx2K / 60Hz 8Bit YcbCr4:4:4;
• Support ARC, audio, TV return, and optical port output
• HDMI to achieve audio signal split synchronization. Support 2.0 / 5.1 / PASS three types of audio mode options
• Digital SPDIF audio support: Dolby Digital (AC3), DTS, and LPCM2.0

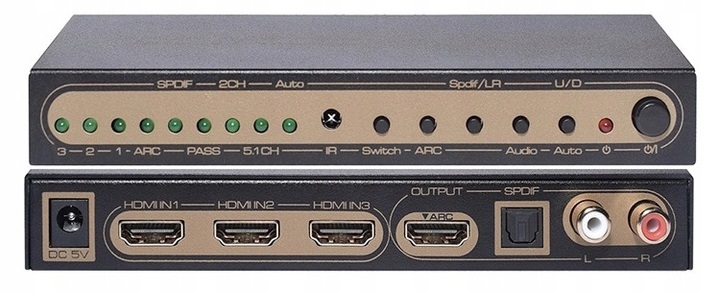

• LED signaling: when the source or sink is working, the LED will be clear.
• LED status light allows the consumer to easily see the working status.
• No quality loss

Operation and connection

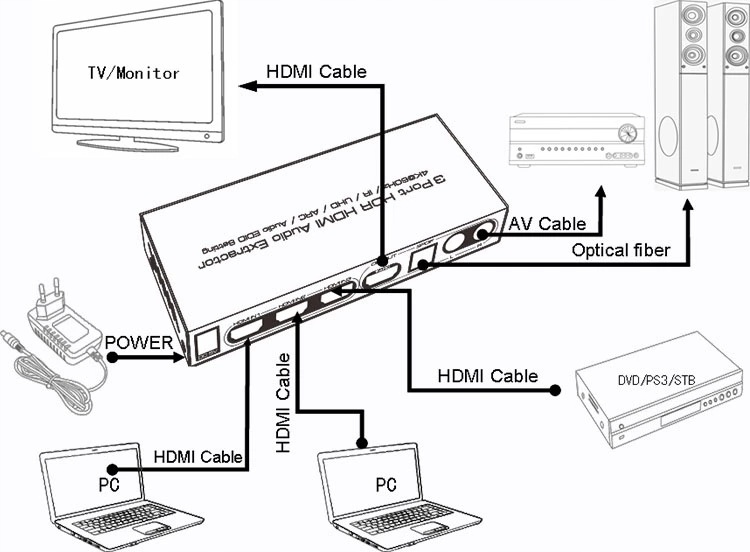

1. Use an HDMI cable to connect the 3-port HDMI Audio Extractor to HDMI source devices
2. Use one HDMI cable to connect the HDMI switch output port to an HD display.
3. Use an SPDIF optical cable to connect the switch port to the AV receiver.
4. Use an RCA audio cable to connect the audio L/R ports of the switch to an analog audio input port.
5. Use the IR remote control or the switch button to control and switch the signal source and the ARC/SPDIF function.
6. Connect the 5V power supply to the device.

Technical data

• HDMI resolution: 4Kx2K @ 60hz / 4Kx2K @ 30 Hz / 1080p / 1080i / 720p / 576? / 576i / 480? / 480i format output
• Audio formats support: DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
• Maximum bandwidth: 600MHz
• Max baud rate: 18Gbps
• TMDS signal input / output: 0.5~1.5V p-p (TTL)
• DDC signal input-output: 5 Volts p-p (TTL)
• Input cable distance: ?10m (1080p) / 5M (4K) AWG24 standard HDMI cable
• Output cable distance: ?10M (1080P) / 5M (4K) AWG24 standard HDMI cable
• Maximum current: 900mA
• PSU format. Input:: AC (50HZ, 60HZ): 100V-240V; output: DC5V / 2A
• Operating temperature range: -0 to + 40 ˘J
• Storage temperature range: -15 to + 55 ˘J
• Operating humidity range: 5 to 85% RH (no condensation)
• Storage humidity range: 5% to 95% RH (non-condensing)
• Dimensions (L x H x W): 160X64.5X22.5 (mm)
• Weight: 252g
