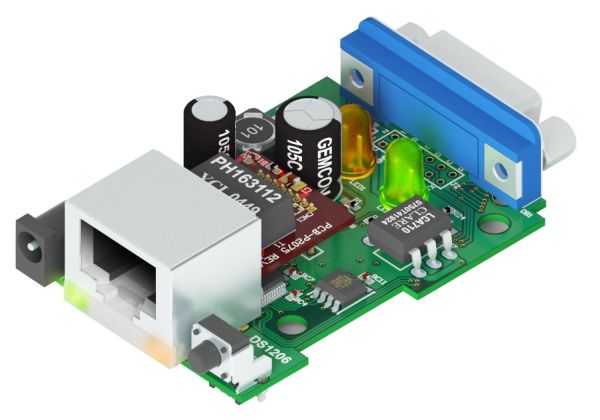

DS1206N is a BASIC-programmable board primarily designed for remote serial device management and RS232/Ethernet interface conversion ("serial-over-IP"). It comes with a fully loaded "serial-over-IP" firmware.

Similar to the DS1206 controller, a key feature of the DS1206N board is its multi-channel serial port. The device has a single DB9 connector, but can support up to 3.5 independent serial channels. If you're not using the DSR and DTR lines, they can be configured as the Rx and Tx lines for an additional channel. The same applies to the RTS and CTS signals. In total, up to 15 different combinations can be configured.

Three board modifications are available with different serial port and power supply implementations. It comes with a fully loaded "serial-over-IP" firmware.

Specifications

• Three modifications are available: DS1206N-RS, DS1206N-TM, and DS1206N-TS.

• Based on a high-performance 88MHz ASIC (T1000) controller.

• 10/100BaseT, auto-MDIX Ethernet port.

• 3.5 serial channels:

  • DS1206N-RS: RS232 port (DB9M connector);

  • DS1206N-TM, "-TS": TTL serial port ("pin" connector);



• Speed up to 921,600 bps;

• Parity modes: None/even/odd/mark/space;

• 7/8 bit data format;

• Full-duplex mode with flow control option;

• DS1206N-TM and "-TS": Half-duplex mode with data transmission direction control;

• Flexible line configuration (up to 15 different options), for example:

• Single channel: RX, TX, CTS, RTS, DSR, and DTR lines;

• 3.5 channels: RX, TX, RX2, TX2, RX3, TX3, and RX4 lines.

  • DS1206N-RS: optional "12V" output via DB9M connector;

  • DS1206N-TM: optional "12V" input via the serial port.



• Up to 1024KB of flash memory for firmware, applications, and data.

• 2KB EEPROM for data storage.

• 4 LEDs:

• green and red general status LEDs on the top panel of the device;

• Ethernet status LEDs on the RJ45 connector.

• Software-controlled built-in PLL.

• Power supply:

  • DS1206N-RS, "-TM": built-in converter, 10-24V (12V nominal);

  • DS1206N-TS: direct 3.3V input (+/- 5% tolerance).



• Board dimensions: 52.6x38.0mm.

• Firmware is updated via the serial port (RS232) or Ethernet.
