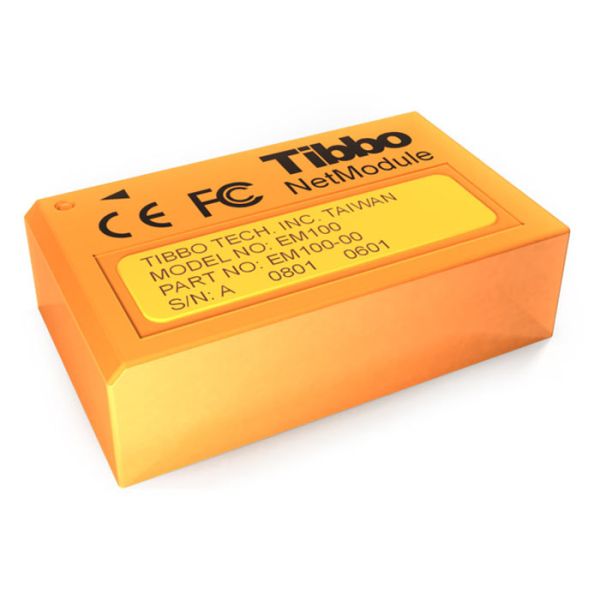

Serial to Ethernet Module

The EM100 module has built-in transformer isolation, so all you need for installation is a simple RJ45 network connector. This module has the lowest power consumption compared to all other Tibbo modules.

The EM100 module has a fully sealed enclosure (for environmental protection).

The product comes with Tibbo Device Server Toolkit software, which includes a virtual COM port driver for Windows and Linux.

Specifications:

• 10BaseT Ethernet port (built-in transformer isolation).
• TTL serial port (TX, RX, RTS, CTS, DTR, and DSR lines).
• 2 additional I/O lines.
• 4 lines for LEDs.
• Power supply: 40 mA at 5 V.
• Dimensions: 46x28x13 mm.
• Sealed enclosure.
• Firmware updates are available via Ethernet and the serial port.

Capabilities:

• Full and half-duplex serial port modes.
• Available modes: server, client, and server/client.
• Many other options for serial and local networks.
• Configuration is stored in EEPROM.
• Detailed status indication using external LEDs.
• Configuration via RS232 or Ethernet (UDP commands).
• Remote control of all I/O lines (including RTS, CTS, DTR, and DSR).
• "On-the-fly" commands for serial port configuration.
• "Modem" commands via RS232 control the network connection.
• Direct control of an ADSL modem.
• Supports UDP, TCP, ARP, ICMP (ping), DHCP, PPPoE, LCP protocols.
