HDMI repeater/amplifier &
SKU
HDR0101
PLN 44.00
Out of stock

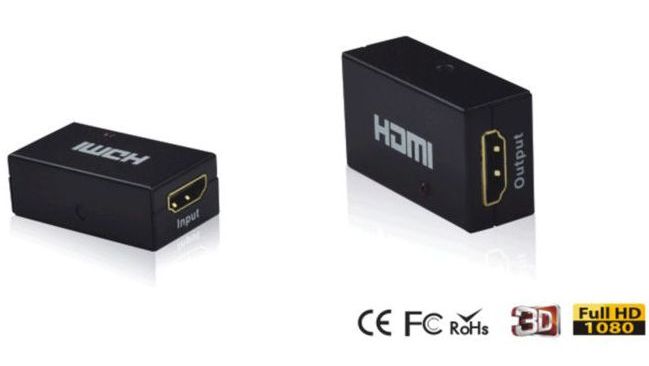

The HDMI Repeater is mainly used for supporting the HDMI Signal long transmitting distance by amplifying the HDMI differential signal. (Support 3D)
Categories: Converters and Adapters, Video Converter, HDMI Extender
FEATURES:
1.It can buffer and amplifier the signal.
2.26 AWG HDMI Cable up to 30M
3.Video Input Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
4.Video Output Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
5. No Loss of Signal Quality
6.Easy Operation
SPECIFICATIONS:
|
HDMI Connector |
Type A 19Pins Female |
|
HDMI Input |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
HDMI Output |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Max Transmission Rate |
165MHz |
|
Max Transmission Bandwidth |
4.95Gbps |
|
Input Video Signal |
1.2 volts p-p |
|
Output DDC Signal |
5Volts p-p (TTL) |
|
Operating Temperature range |
(-15 to +55°C) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Size(L*W*H) |
45X26X16.5 mm |
|
Weight |
30g |

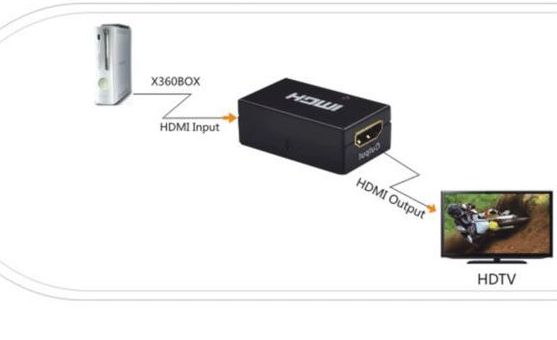

Operating and Connecting:
1. To use one Standard HDMI Cable to connect the HD Source with the repeater input interface.
2.To connect the output interface of repeater with the Display End by the Standard HDMI Cable.
| Manufacturer | ASK |
|---|---|
| Power Supply | N/A |
| Color | Black |
