HDMI Extender/Repeater 25
SKU
HDEX0015M1
PLN 76.00
Out of stock

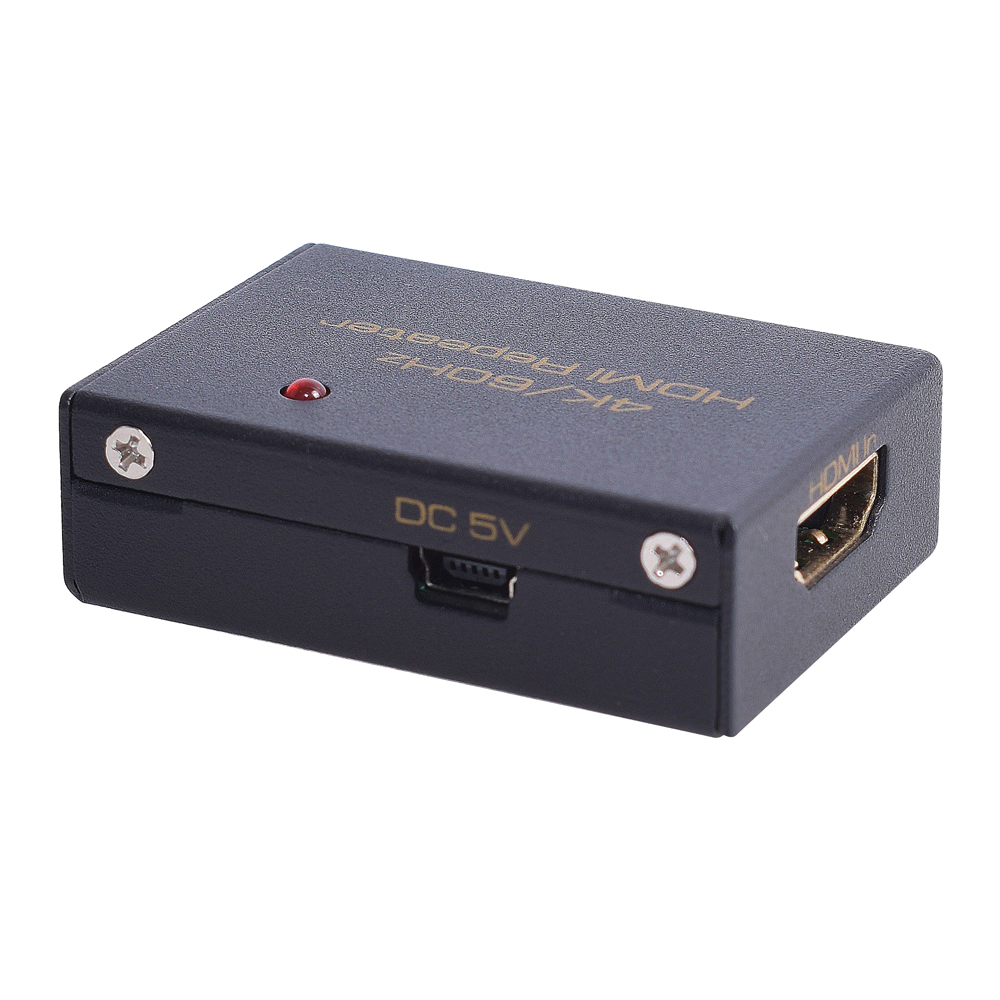

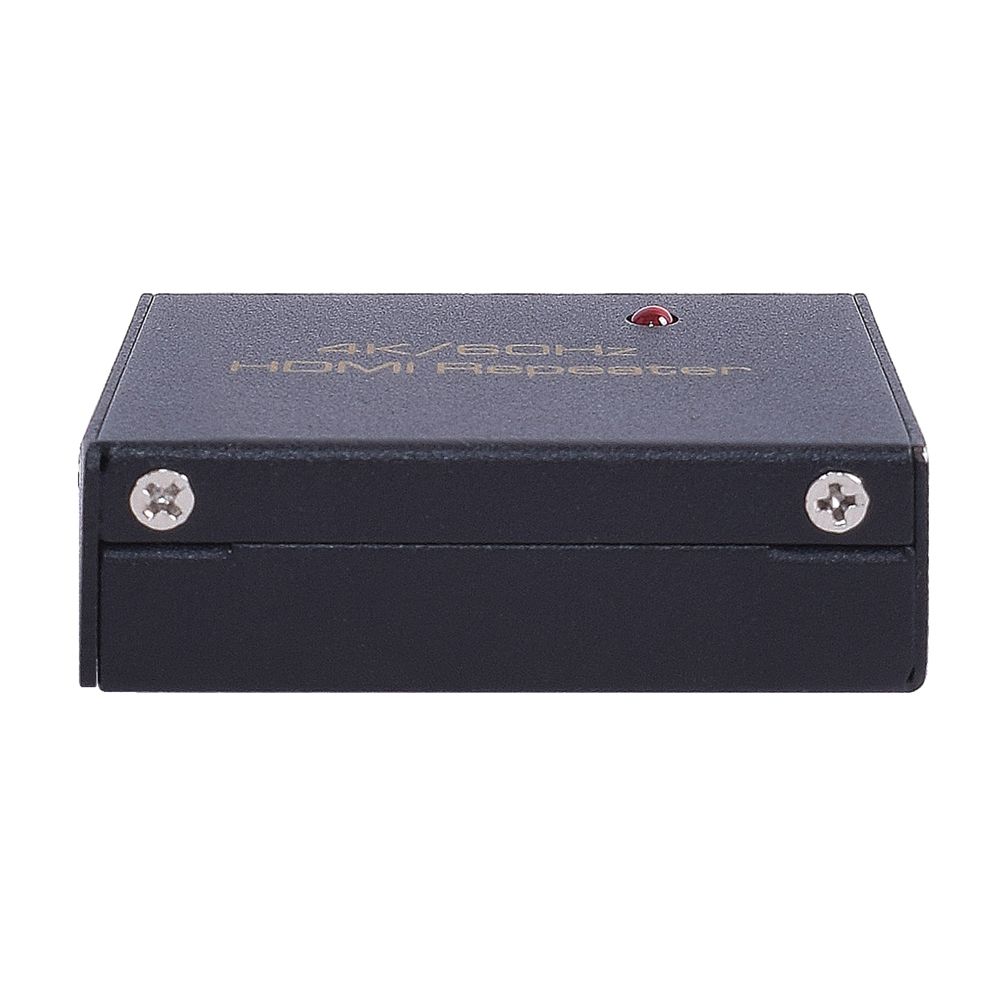

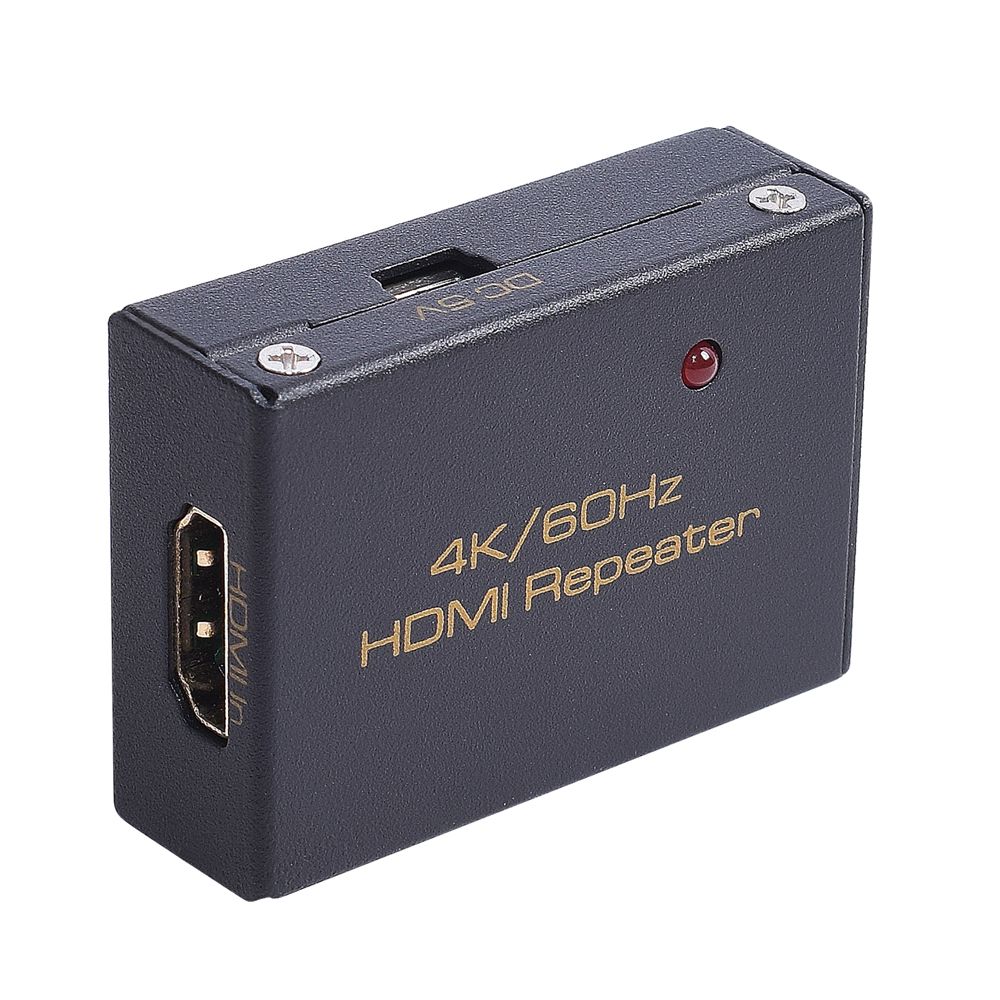

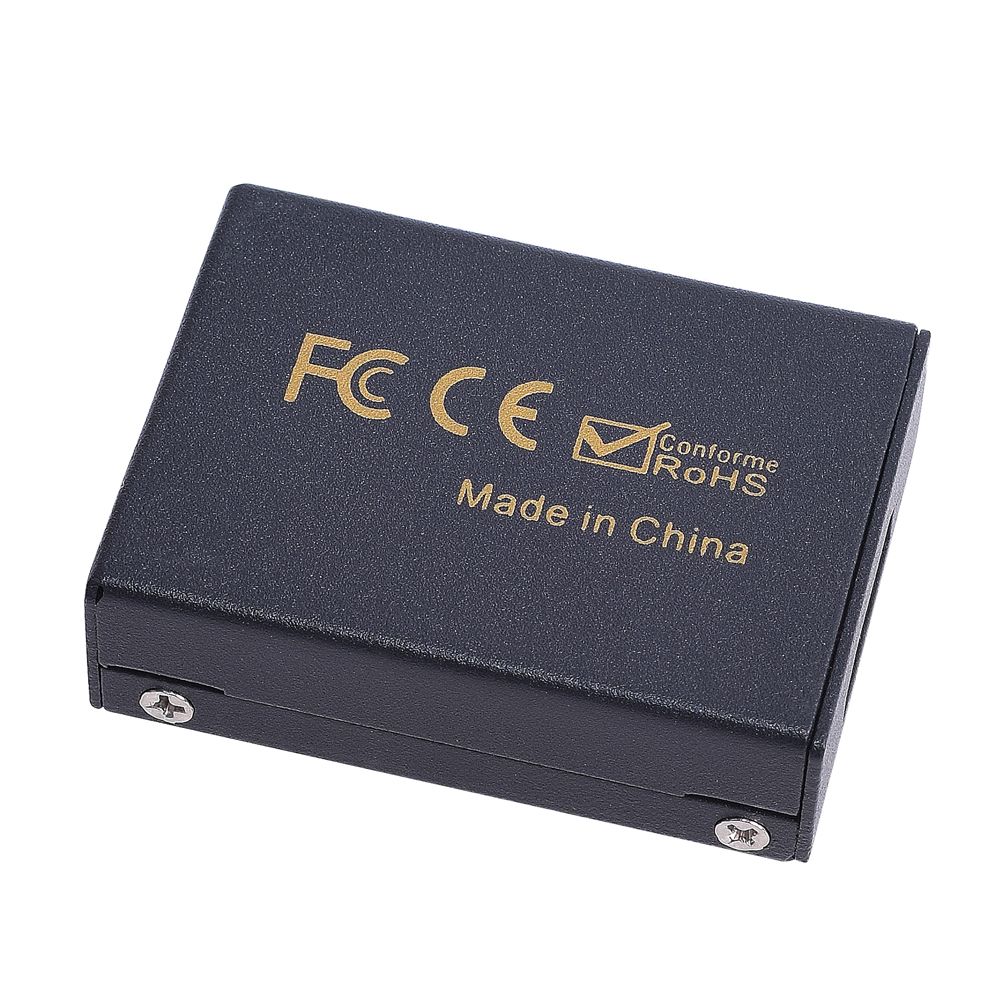

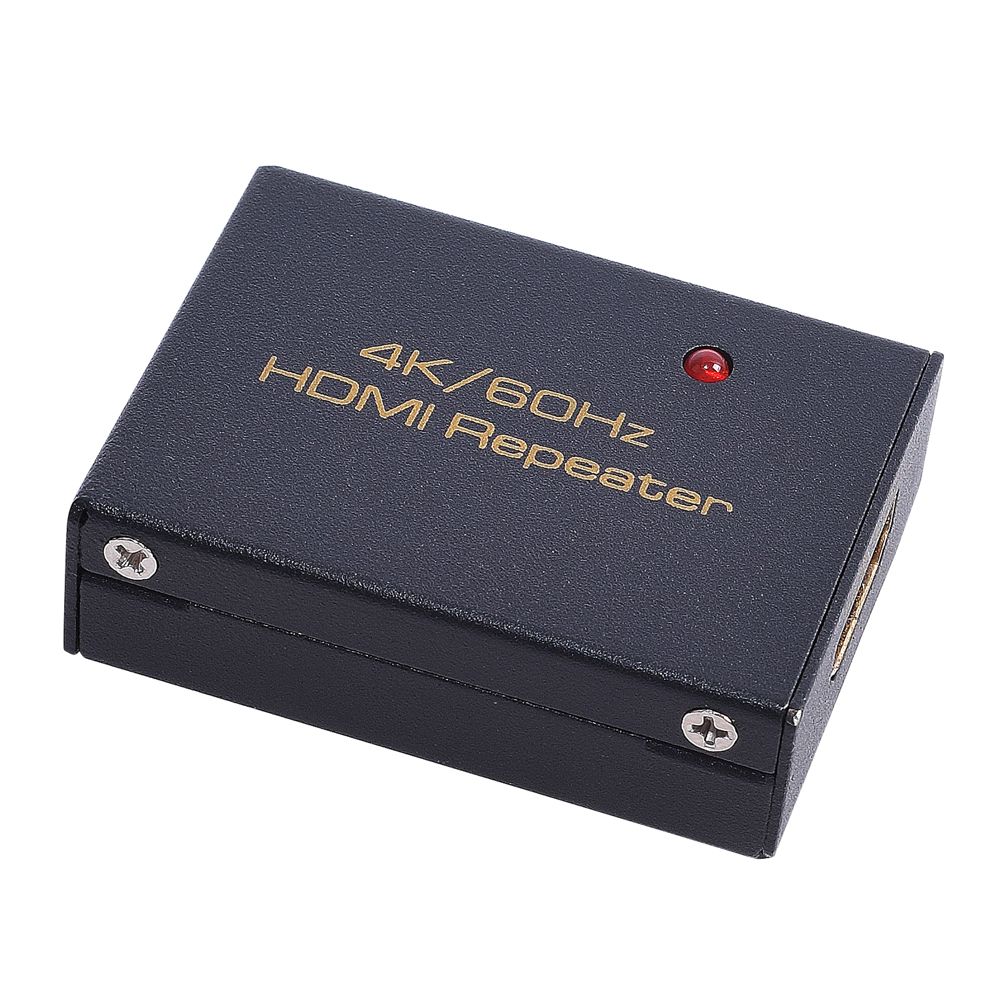

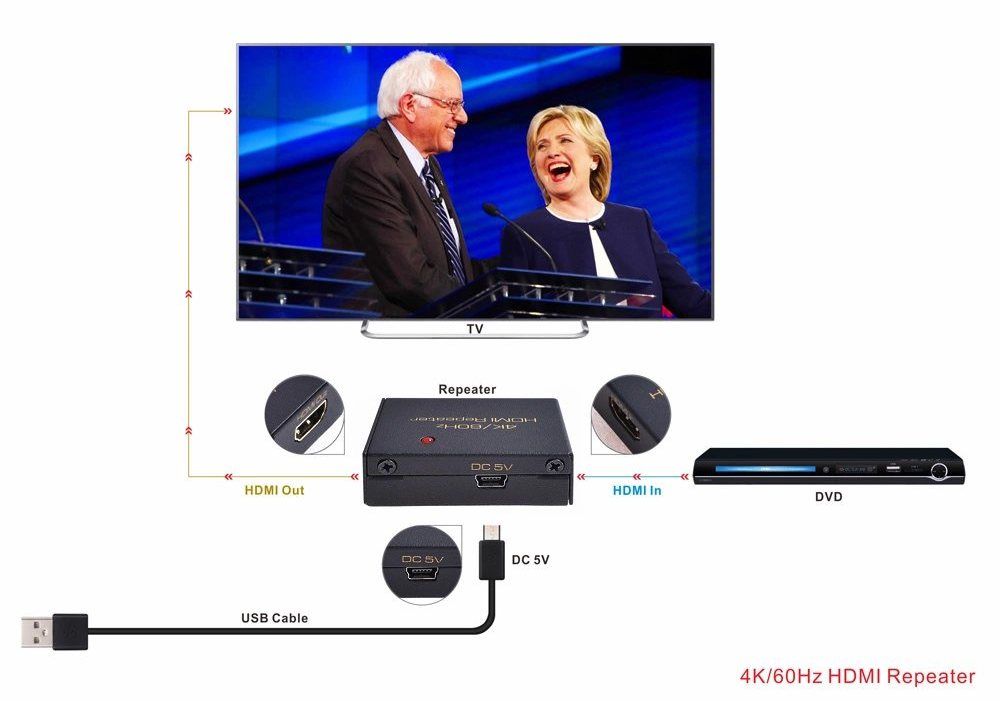

The repeater supports 1080P, 3D and 4K*2K/60Hz and it can do amplifier to the HDMI signato support long transmission of HDMI signal. It can buffer and amplifier the signal.
- Support HDR
- Support 4K*2K @60Hz resolution
- Video Format Support: 4Kx2K/60Hz 10Bit YcbCr4:2:0; 4Kx2K/60Hz 12Bit YcbCr 4:2:0 ; 4Kx2K/60Hz 8Bit YcbCr 4:4:4/ YcbCR4:2:0
- The input/output HDMI Cable length can be up to 15m for 1080P signaand the input/output HDMI cable length can be up to 10m for 4K*2K signal.( Pls use the standard AWG 24 HDMI Cable).
- No Loss of SignaQuality
- Easy Operation
Categories: Converters and Adapters, Video Converter, HDMI Extender
 |
 |
 |
 |
 |
 |
 |
|
 |
|
SPECIFICATIONS:

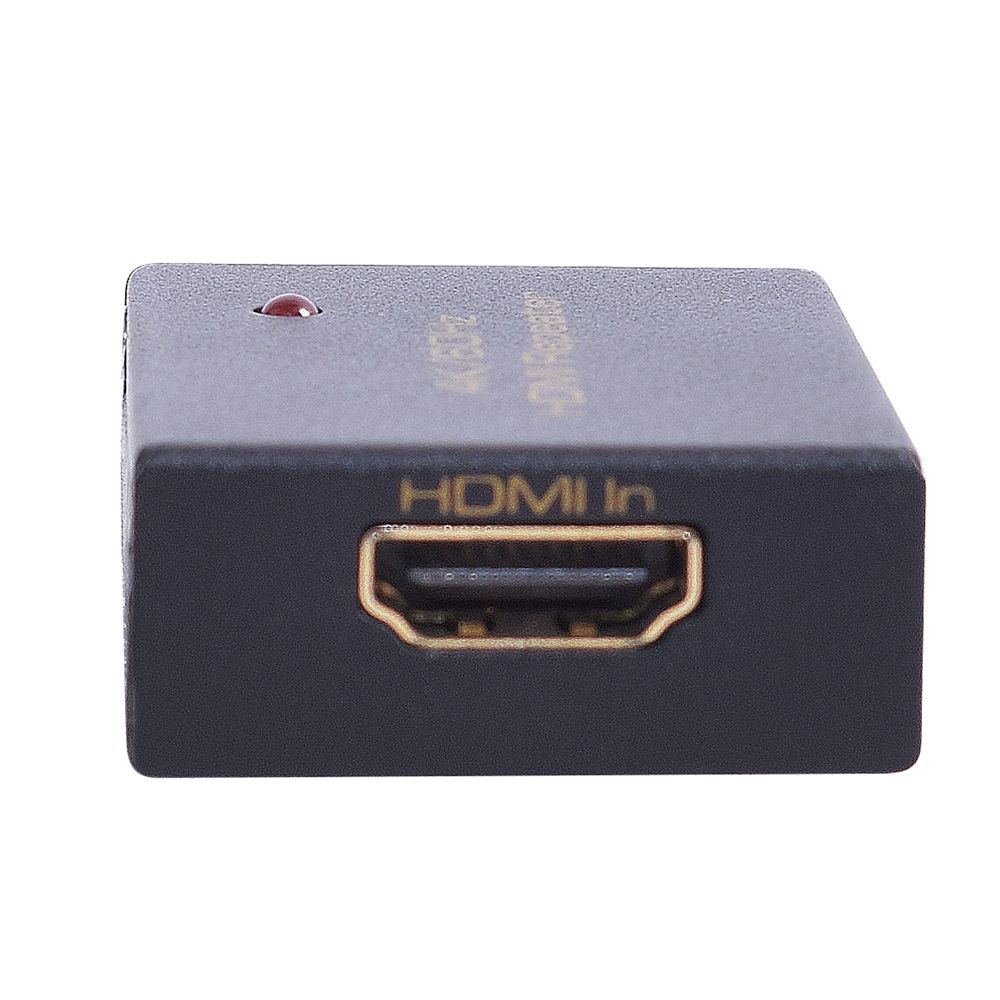

- HDMI Connector: Type A 19Pins Female
- HDMI Input: 4K@60Hz /4K@30Hz/1080P/1080i/720p/576p/576i/480P/480i
- HDMI Output: 4K@60Hz /4K@30Hz/1080P/1080i/720p/576p/576i/480P/480i
- Max Transmission Rate: 600MHz
- Max baud rate: 18Gbps
- Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal: 5Volts p-p (TTL)
- Input cable distance: ≤15m(1080P)/10M(4K) AWG24 HDMI standard cable
- Output cable distance: ≤15m(1080P)/10M(4K) AWG24 HDMI standard cable
- Max working current: 300mA
- Operating Temperature range: 0 to +40℃
- Storage Temperature range: -20 to +60℃
- Operating Humidity range: 5 to 85%RH (No Condensation)
- Storage Humidity range: 5 to 95%RH (No Condensation)
- Dimension (x W x H): 49X35.5X15.5 (mm)
- Weight: 46g
| Manufacturer | ASK |
|---|---|
| Power Supply | N/A |
| Color | Black |
