Computerized ECR VenPOS 5

Name: Computerized ECR VenPOS 554, 8.4-inch fanless terminal, 60 keys, MSR
Brand: Flytech
SKU: POS554
Price: 3999.00 PLN
Availability: OutOfStock

SKU

POS554

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PLN 3,999.00

Out of stock

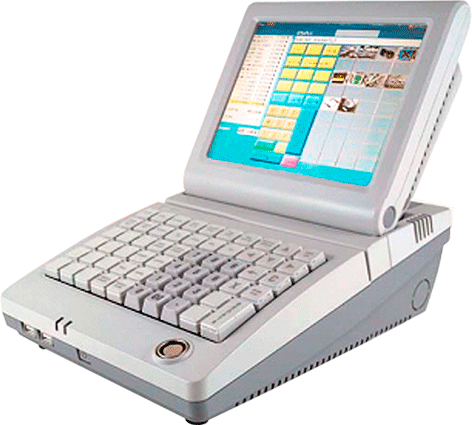

This is a compact 8.4" terminal with a programmable keyboard. Ideal for small and medium-sized retail stores. The terminal is equipped with a powerful, low-power Intel® Atom™ N270 processor. Thanks to the fanless technology, the terminal is protected against dust and dirt. The presence of a 60-key programmable keyboard, a customer display, and an I-button MSR provide additional functions for the cashier. This is a compact 8.4" terminal with a programmable keyboard. Ideal for small and medium-sized retail stores. The terminal is equipped with a powerful, low-power Intel® Atom™ N270 processor. Thanks to the fanless technology, the terminal is protected against dust and dirt. The presence of 60-key programmable keyboard, customer display, I-button MSR provides additional functions for the cashier.

Notify me when the price drops

Notify me when this product is in stock

Category: Modular

Free Delivery

For all oders over $110

14 Days Return

For any reason

Secure Payment

100% secure payment

24/7 Support

Dedicated support

Details

A compact 8.4" terminal with a programmable keyboard. It's ideal for small and medium-sized retail stores. The terminal features an efficient, low-power Intel® Atom™ N270 processor. Thanks to its fanless technology, the terminal is protected from dust and dirt. The 60-button programmable keyboard, customer display, and I-button MSR provide additional features for the cashier.

Benefits

Screen tilt angle
45°, 60°, 75°

Number of programmable keys 60

Screw design for easy access to HDD

Built-in MSR, Keyboard Option VFD 2nd display, iButton Reader, Wi-Fi

Rich I/O ports, Support DC 24V out to thermal printer

Small foot-print, All-in-One, Fanless

Technical Specifications

Model Name	POS 554
Motherboard	C35
Processor	Intel® Atom™ Processor N270 (512K Cache, 1.60 GHz, 533MHz)
Chipset	Intel® 945GSE Express + ICH7M
System Memory	1 x DDR2 DIMM up to 2GB
Graphics Memory	Share System Memory up to 224MB
LCD Touch Panel
LCD Size	8.4" TFT LCD
Brightness	250 cd/m2
Resolution	800x600
Touch Screen	8.4" resistive
Storage Devices
Hard Drive	1 x 2.5" HDD 160G (SATA interface) or SSD (optional)
I/O Ports
PS/2	1
USB	4 (2 front+2 rear)
Serial	4 x RJ-45 COM (Powered COM3/COM4 +5V/+12V jumper-configurable)
Parallel	1
LAN	1 x RJ-45 (10/100/1000Mbps Giga LAN)
Second Display	VGA (female type connector with power by jumper setting)
DC In 19V	1
DC Out 24V	1 (Receipt printer)
Cash Drawer	1 x RJ-11 (12V/24V cash drawer)
Power Button	1
Audio
Internal Speaker	2 x 2W internal speakers
Power Supply
Power Adapter	Adapter (DC 90W, 19V, 4.7A)
Programmable Keyboard
PS/2 Keyboard	60 programmable buttons
Communications
Wireless LAN	Mini PCI-E WLAN card IEEE 802.11 b/g/n
Main Modules	MSR	iButton	VFD
Component Type	3 tracks	Magnetic reader	2 x 20 characters
Certificates
EMC & Safety	FCC Class A / CE Mark / LVD
Environment
Operating Temperature	5°C ~ 35°C (41°F ~ 95°F)
Storage Temperature	-20°C ~ 55°C (-4°F ~ 131°F)
Dust and Water Protection Class	IP54 (front bezel)
Dimensions (W x D x H)	224 x 336.5 x 227 mm
Weight	3.4kg
Supported OS	Windows® XP Professional, Windows® Embedded, POSReady 2009, Windows® XP Embedded, Windows® XP Professional for Embedded, WinCE, Windows® 7, Linux
