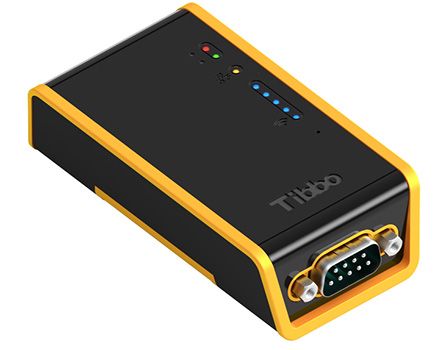

The WS1102 is a compact Tibbo BASIC/C-programmable wireless controller equipped with an RS232/422/485 serial port. The product targets serial-over-IP (SoI) and serial control applications.

Notify me when the price drops

Programmable Wireless Controller Tibbo WS1102 RS232/422/485 to WiFi is available to buy in increments of 1

Category: Tibbo Devices

Free Delivery

For all oders over $110

14 Days Return

For any reason

Secure Payment

100% secure payment

24/7 Support

Dedicated support

Details

The WS1102 is a compact Tibbo BASIC/C-programmable wireless controller equipped with an RS232/422/485 serial port. The product targets serial-over-IP (SoI) and serial control applications.

This cloud-native device incorporates Wi-Fi (802.11a/b/g/n over 2.4GHz/5GHz) and Bluetooth Low Energy (BLE) interfaces that introduce several new features, such as Wi-Fi auto-connects, wireless debugging, over-the-air (OTA) updates, and Transport Layer Security (TLS) support. As a vendor-agnostic product, it can communicate with Microsoft Azure, Google Cloud, Amazon Web Services (AWS), and virtually any other cloud services provider.

There are eight LEDs on the device's front: green and red main status LEDs, a yellow access point association (link) LED, and five blue LEDs, which can be used for Wi-Fi signal strength indication or other purposes. A buzzer is provided as well.

Each WS1102 is supplied with a DIN rail and wall mounting plates.

The WS1102 comes preloaded with a full-featured Serial-over-IP (SoI) application that turns the WS1102 into a powerful serial-over-IP (SoI) device (a.k.a. a "device server"). A versatile Modbus Gateway application is also available.

Here is How You Can Use the WS1102

As a Serial-over-IP (SoI) Device

Serial-over-IP conversion is a large part of what we do, and there is an entire section of our website dedicated to serial converters (a.k.a. "serial device servers"). We offer an open-source serial-over-IP (SoI) app that turns the WS1102 into a full-featured RS232/422/485-to-IP converter.

Build Your Own IoT Solution

The WS1102 is programmable in Tibbo BASIC and Tibbo C. Develop your very own Internet of Things (IoT) solution from scratch or take inspiration from our open-source applications and code samples published in the Code and Apps section.

Key Features

High-performance ARM CPU

Stores two Tibbo BASIC/C apps

Integrated Wi-Fi connectivity (802.11a/b/g/n)

Wireless debugging via Wi-Fi

TLS1.2 (RSA-2048)

Integrated Bluetooth Low Energy connectivity (BLE 4.2)

Supports over-the-air (OTA) updates

RS232/422/485 port

Buzzer

Onboard RTC (no backup battery)

4MB ﬂash for TiOS and two apps + 4MB for the flash disk file system

2048-byte EEPROM

From Low-Code to No-Code With CODY

Low-code software development is the future because no one has the time to write and debug complex applications line-by-line.

Enter CODY, our online code generator that produces working Tibbo BASIC applications from the information you enter on a few simple configuration screens. For many usage scenarios, such as sensor-to-cloud applications, CODY will output fully functional, immediately deployable WS1102 code.

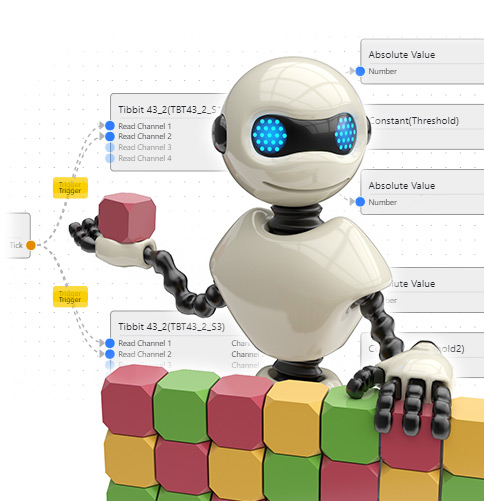

CODY's magic bullet is AppBlocks. With AppBlocks, all supported features and software modules are represented by functional blocks, which you drag onto and interconnect inside a project canvas. This draw-an-application approach turns CODY into a truly no-code development tool for many types of WS1102 applications.

Here are two short videos that show what CODY is: Part 1, Part 2.

Fast Deployment With the L.U.I.S. App

Anyone who has ever deployed a device on a target network knows that complications often come from silly little things, like the configuration of Wi-Fi parameters. You know how it goes: To set the AP name and password, the device you are dealing with must temporarily become an access point, which you then connect to from your phone, etc. On and on this goes, wasting your precious time.

Enter the Loadable User Interface System (L.U.I.S.), our wireless configuration solution for Tibbo devices.

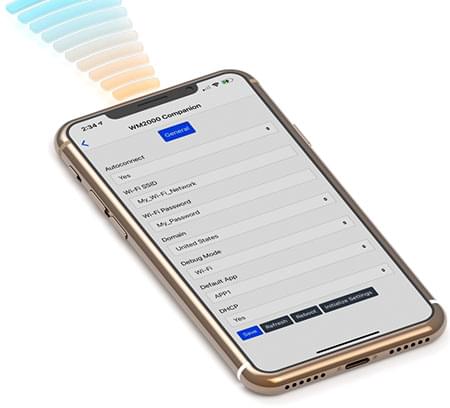

L.U.I.S. allows you to configure compatible Tibbo devices via their BLE interface. The L.U.I.S. app (iOS, Android, web) automatically discovers nearby devices that support BLE configuration. After you select a device to work with, the app loads configuration pages from the device itself. Wi-Fi parameter configuration, IP selection, and many other settings are suddenly within easy and convenient reach!

It gets even better: The WS1102 also supports over-the-air firmware upgrades via BLE using our Tibbo Updater app (iOS, Android, web)!

Hardware

Specifications:

Powered by Tibbo OS (TiOS)
Stores up to two compiled Tibbo BASIC/C binaries (apps)⁽¹⁾
- A Device Configuration Block (DCB)⁽²⁾ defines which of the two apps normally runs on power-up
- Forced launch of APP0 through the MD button
Wi-Fi interface (802.11a/b/g/n)
- Supported frequencies:
  - 2.4GHz (2,412MHz ~ 2,462MHz)
  - 5.0GHz band 1 (5,180MHz ~ 5,240MHz) and band 4 (5,745MHz ~ 5,825MHz)
- Standards compliance:
  - FCC 15C and 15E Class B (FCC ID: XOJ-WS1102)
  - EN 300 328 V2.2.2
  - EN 301 893 V2.1.1
  - EN IEC 62311
- Transmission distance: At least 100m in open space
- Supported Wi-Fi modes:
  - Station
  - Infrastructure (not available when using the SoI app)
- Security:
  - WEP
  - WPA-PSK
  - WPA2-PSK
- Controlled via a simple-to-use, yet sophisticated API
- TLS1.2 with RSA-2048 cryptosystem⁽³⁾
- Optional "autoconnect" — automatic association with a designated Wi-Fi network as defined by the DCB⁽²⁾
- Optional debugging of Tibbo BASIC/C applications via the Wi-Fi interface⁽⁴⁾
Bluetooth Low Energy (BLE 4.2)
- 2.4GHz (2,402MHz ~ 2,480MHz)
- Standards compliance:
  - FCC 15C and 15E Class B (FCC ID: XOJ-WS1102)
  - EN300 328 V2.2.2
  - EN IEC 62311
- Transmission distance: 15m (tested) in open space
- Controlled via a simple-to-use, yet sophisticated API
- Can access the DCB via a new, integrated console⁽²⁾
Internal high-gain Wi-Fi/BLE PCB antenna
RS232/422/485 port on a DB9M connector
- Port modes are software-selectable
- TX, RX, RTS, CTS, DTR⁽⁵⁾, and DSR⁽⁵⁾ lines
- Baudrates of up to 921,600bps
- None/even/odd/mark/space parity modes
- 7 or 8 bits/character
- RTS/CTS and XON/XOFF flow control
Built-in buzzer
RTC (no backup battery)
58KB SRAM for Tibbo BASIC/C variables and data
4MB flash for code storage
- System files and TiOS occupy a combined 2,408KB
- 1,688KB available for storing up to two app binaries
Additional 4MB flash for the hardened fault-tolerant file system
2048-byte EEPROM for data storage
Eight LEDs
- Green and red main status LEDs
- Yellow access point association (link) LED
- Five blue LEDs (for Wi-Fi signal strength indication, etc.)
Power: 12VDC (9 ~ 18V)
- Current consumption at idle of 55mA ~ 65mA @12VDC
- Current consumption when in operation (transferring data) of ~80mA @12VDC with spikes of up to 130mA
Dimensions (LxWxH): 90 x 48 x 25mm
Operating temperature range: –40°C to +85°C⁽⁶⁾⁽⁷⁾
Firmware and compiled Tibbo BASIC/C apps can be updated via:
- Serial port
- Wi-Fi interface
- Bluetooth Low Energy (BLE) interface
Tibbo BASIC/C applications can be debugged via Wi-Fi⁽⁴⁾ or serial port⁽⁵⁾
Supplied with an SoI app preloaded
Supplied with an SoI companion app preloaded
- The app allows editing of the DCB from the L.U.I.S. smartphone app (available for iOS and Android)
- Users are free to modify the app for additional functionality
IEC 62368-1 (LVD 2014/35/EU) safety standard compliant
EMC and immunity qualifications:
- FCC 15B Class B
- (BS) EN 55032
- (BS) EN IEC 61000-3-2
- (BS) EN 61000-3-3
- (BS) EN 55035
- (BS) EN 61000-4-2
- (BS) EN IEC 61000-4-3
- (BS) EN 61000-4-4
- (BS) EN 61000-4-5
- (BS) EN 61000-4-6
- (BS) EN 61000-4-8
- (BS) EN IEC 61000-4-11
- ETSI 301 489-1
- ETSI 301 489-17

Although two independent Tibbo BASIC/C compiled binaries (apps) can be stored in the WS1102's flash memory, only one can run at a time.
Several of the WS1102's configuration parameters are stored in the DCB, which is accessible via a new integrated console. Our BLE Terminal web app leverages the Web Bluetooth API (compatible with the Chrome, Chromium, Edge, and Opera web browsers) to connect to the WS1102's console. Configuration properties can also be read and set through Tibbo BASIC/C code.
TLS is supported on a single outgoing TCP connection.
To enable Wi-Fi debugging, you must enable autoconnect — automatic association with a designated Wi-Fi network. This can be accomplished via the integrated BLE console or in code.
The TX and RX line of the debugging UART are connected to the DTR and DSR lines of the serial port. When the serial debugging is enabled, these lines cease functioning as the DTR and DSR lines. To avoid occupying the DTR and DSR lines for debugging, use wireless debugging instead. The debug mode can be selected via the integrated BLE console or in code.
The WS1102 is compliant with the IEC/EN 62368-1 safety standard in the –40°C to +85°C range. To maintain this compliance in the field, use an external DC power source outputting 0.5A @ 9VDC ~ 18VDC (less than 15W) that is also IEC/EN 62368-1 certified and can operate in the –40°C to +85°C range.
Tested according to procedures I, II, and III of MIL-STD-810H Method 501.7 and MIL-STD-810H Method 502.7.

Included Accessories

DIN rail mounting plate
Wall mounting plate and two screws

Optional Accessories

TB1100 terminal block adapter (version "B" recommended)
12V/0.5A adapter: APR-P0011(US), APR-P0012(EU), APR-P0013(UK)
WAS-P0004(B) DB9M-to-DB9F serial cable (device-to-PC)
WAS-P0005(B) DB9F-to-DB9F serial cable (device-to-device)

See Also:

DS1100 single-channel RS232 controller
DS1101 3.5-channel RS232 controller
DS1102 3-channel RS232/422/485 controller

Programming

Create powerful, network-enabled applications in Tibbo BASIC and Tibbo C. Learn more...

Platform objects:

beep — generates buzzer patterns.
bt — in charge of the BLE (Bluetooth Low-Energy) interface.
button — monitors the MD (setup) button.
fd — manages the flash memory file system and direct sector access.
io — handles I/O lines, ports, and interrupts.
pat — "plays" patterns on a pair of status LEDs.
romfile — facilitates access to resource files (fixed data).
rtc — keeps track of date and time.
ser — controls the serial channels.
sock — socket comms (up to 16 UDP, TCP, and HTTP sessions).
stor — provides access to the EEPROM.
sys — in charge of general device functionality.
wln — handles the Wi-Fi interface.

Function Groups: 27 string functions, 8 date/time conversion functions, encryption/hash calculation functions (RC4, MD5, SHA-1), and more.

Variable Types: Signed and unsigned 8-bit, 16-bit, and 32-bit types; floating point and string types; user-defined arrays and structures.

Files and Documentation

TiOS Firmware	tios-ws1102-4_02_01.bin — uploadable via Device Explorer* Files for over-the-air (OTA) firmware updates can be produced with the .TCU File Generator
SoI Firmware	soi_application-4_38-(WS1102).bin
Documentation	DS/WS1102 Hardware Manual WS1102 Programming Platform Serial-over-IP Solutions Manual
CE Certificates	EU EMC Directive EU RED Directive Safety EU LVD Directive
UKCA Certificate	UKCA EMC Directive
FCC Certificates	FCC Part 15B 2.4GHz band 5.0GHz band

* Device Explorer is a part of Tibbo IDE (TIDE) software. It installs alongside TIDE, and you can also install it separately, without installing TIDE. Both TIDE and Device Explorer can be downloaded here.
