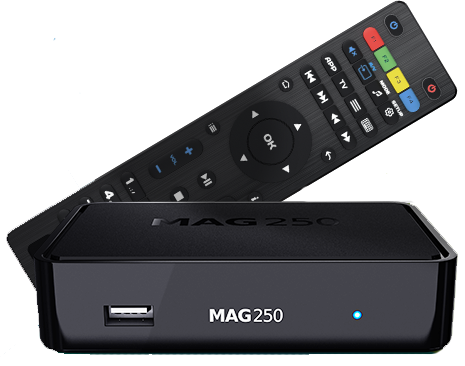

IPTV OTT Set Top Box MAG2
SKU
ITV-MAG250
PLN 356.00
Out of stock
MAG250 is a key model in the popular MAG series, designed for easy launch in IP-based networks. The Set-Top Box is designed for ISPs, OTT-operators and content aggregators that provide services based on IPTV, OTT and VoD. MAG250 contains a whole set of functions that are in high demand with operators, such as playback of digital TV channels in high quality, streaming video support and video on demand.
STi7105 450Mhz, Linux 2.6.23, Composite AV, HDMI 1.3, USB x 2, S/PDIF, LAN, WiFi.
Categories: Electronics, Business & Industrial
Specifications:
Dimensions
- Width/depth/height, (mm) - 127/87/30
- Weight, g - 190
Hardware
- Processor - STi7105
- RAM - 256 Mb
- Flash memory - 256 Mb
Software
Operating system - Linux 2.6.23
Built-in Media Portal with WebKit-based IPTV-functionality:
- HTTP 1.1, HTML 4.01 XHTML 1.0/1.1;
- DOM 1, 2, 3, CSS 1, 2, 3;
- XML 1.0, XSLT 1.0, XPath 1.0;
- SOAP 1.1;
- JavaScript ECMA-262, revision 5;
- Media JavaScript API;
- C layer SDK
DRM option - Verimatrix(optional), Securemedia
Middleware supported - Ministra TV-platform, OFT-Media, Netup, SmartLabs, Netris, Beenius
Interfaces
Audio output:
- S/PDIF,
- HDMI 1.3-output,
- Composite + stereo A/V output,
- Ethernet 100 Mb/s,
- USB 2.0 (WiFi-adapter can be connected)
Sources of media content:
- PC and NAS in local network,
- Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP)
- USB-devices
Audio&Video
- Audio сodecs - MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), Dolby Digital (optional)
- Audio formats - MP3, MPA, M4A, WMA (optional), Ogg, WAV
- Video modes - 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC
- Video сodecs - MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; HD video supporting (up to 40 Mbit/s and above)
- Video containers - MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
- Image formats - JPEG, PNG, BMP, GIF, RAW
- Subtitles - DVB, SRT, text MKV
- Playlist formats - M3U
Standard set
- MAG250Set-Top Box,
- User manual,
- Mini jack cable to RCA (A/V),
- Power adapter 5V 2A,
- Remote control,
- 2 AAA batteries.
| Manufacturer | NBS |
|---|---|
| RAM | 1GB |
| Storage capacity | - |
| Power Supply | N/A |
| WiFi | 802.11 b/g/n |
| Bluetooth | No |
| 3D | Hardware 3D graphics acceleration |
| 3G | Support external 3G dongle |
| Support language | Multilingual |
| Decoder format | - |
| Media format | - |
| Music format | - |
| Photo format | - |
| Color | Black |
