Tibbo devices are currently the functional analogues of Moxa RS232/Ethernet interface converters, which, in some respects, surpass the competitor in providing a higher quality and more convenient product.
Tibbo's main competitive advantages:
1. A virtual COM port driver that works stably under various OS versions (including Windows, Linux, and etc.), has an intuitive interface for setting parameters and fully emulates a physical COM port.
2. Free programming of Tibbo devices and open source codeof standard firmware, which allows you to quickly refine the functionality of the module to solve the problem. For example, organize your own protocol gateway or set an algorithm for intermediate data conversion between RS232/422/485 and Ethernet interfaces.
3. In a crisis, the issue of cost is especially relevant. The retail price of Tibbo devices is on average 15-30% cheaper than similar Moxa products. For example, at the beginning of 2015, the Tibbo DS1100 device with a power supply cost 28% less than its closest analogue, the Moxa NPORT 5110.

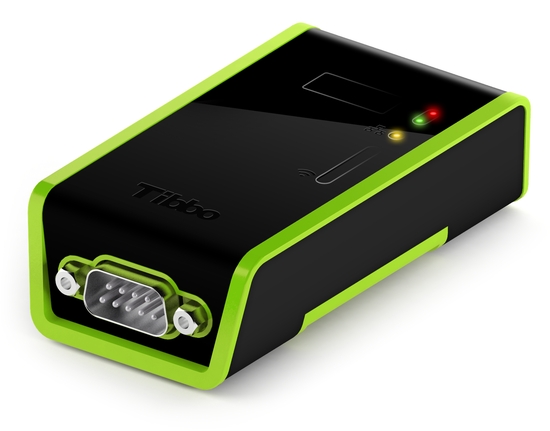

Overview of comparative characteristics of the Tibbo DS1100 and Moxa NPORT 5110 modules
| Parameter | Moxa NPORT 5110 | Tibbo DS1100 |
| Number of RS232 ports | 1 | 1 |
| Connectors | DB9 (male) | DB9 (male) |
| Signal lines | Tx, Rx, RTS, CTS, DTR, DSR, DCD, GND | Tx, Rx, RTS, CTS, DTR, DSR, GND, +Vin/out (optional) |
| Data bit | 5,6,7,8 | 7,8 |
| Parity | none, even, odd, 0, 1 | none, even, odd, 0, 1 |
| Stop bits | 1, 1.5, 2 | Any valid value, calculated automatically |
| Flow Control | RTS/CTS, XON/XOFF | RTS/CTS, XON/XOFF |
| Data Transfer Rate, bps | 110...230400 | 110...230400 |
| Number of Ethernet Ports | 1 | 1 (up to 16 sockets) |
| Connectors | RJ45 | RJ45 |
| Protocols | ICMP, IP, TCP, UDP, DHCP, BooTP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP, Rtelnet, ARP | ICMP, IP, TCP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP, Rtelnet, ARP, ModBus RTU, ASCII/TCP (when using ModBus protocol gateway firmware) |
| Isolation, kV | 1.5 | 1.5 |
| Configuration methods | Windows utility, Web console, Telnet console, Serial console | Windows utility, Web interface, Telnet console, Serial console, AggreGate, Linux utility |
| Operating voltage | 12 ~ 48 V (DC) | 9..18 V (DC), 12 V - nominal, optional PoE (48 V) |
| Current consumption | 128.7 mA (at 12 V) | about 260 mA (at 12 V) |
| Operating temperature, deg. C | 0..55 | -5..+70 |
| Operating humidity, % | 5..95 | 10..90% |
| Overall dimensions, mm | 80х52х22 | 90x48x25 |
| Mounting | Desktop/wall-mounted, DIN rail (optional) | Desktop/wall-mounted, DIN rail (included) |
If you are interested in Tibbo products, our managers are always happy to help in choosing the right device.
