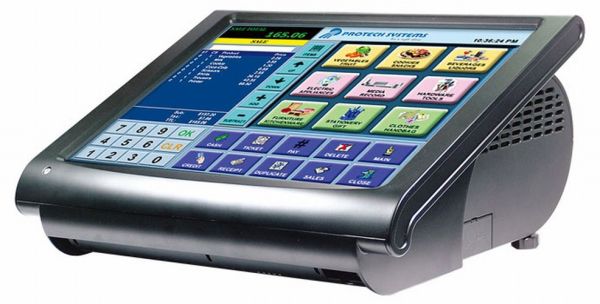

POS-terminal Protech PS35

New integrated 15-inch touch POS terminal PS3520 with a built-in printer (optional). Optimized ergonomic design and high performance.

Features

• Intel ® Atom ™ D525 Pineview processor
• 15" LCD display with touch panel
• Universal application design
• Advanced Thermal 57/80 mm with easy paper loading and automatic cutter
• Optional MSR, I-Button and fingerprint reader, as well as a WiFi module
• High Speed DDR3 module
• Small size, optimized design

Technical Specifications

System

• Processor Intel ® Atom ™ Pineview D525
• RAM 1 x DDR3 SO-DIMM, 1GB DDR3 SO-DIMM (up to 4GB)
• Chipset Intel ® 945GSE and 7m
• Network Fast Ethernet 10/100/1000Base-T
• Power supply 120W Nutrition
• Weight 4.5 kg (fanless)
• Dimensions (W x H x D) 300 x 299 x 135 mm (11.81 "x 11.77" x 5.31 ")
• Compatible OS Windows XP / XPe, Linux, WEPOS, POSReady 2009
• HDD 1 x 2.5 "SATA HDD (160GB Standard)
• CF Compact Flash Bootable CF I / II Type memory slot

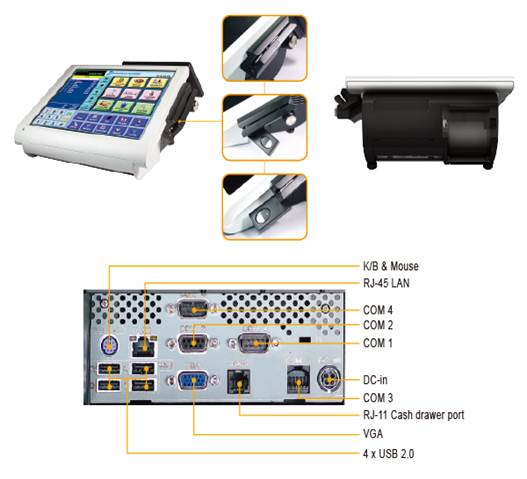

I/O

• USB 5 USB 2.0 ports
• RS 232 3 x DB-9 and 1 x RJ45, +5 V/12V selection
• PS / 2 1 x PS / 2 ports (default from keyboard)
• 1 x LAN 10/100/1000 Mbit / s
• Audio, 1 x speaker with 2W power
• 1 x VGA DB-15 VGA interface
• Drawer, 1 x RJ11 port for drawer (12V/24V)
• 57/80 mm with easy paper loading and automatic cutter

Display

• Customer display (optional) VFD customer display 20 characters two lines
• LCD 15 "TFT LCD
• Max. resolution 1024 x 768
• Brightness 250 cd / m ²
• Touch screen analog, 5-wire resistive

Environment

• Operating temperature 0 ° ~ 35 ° C (+32 ° ~ 95 ° F)
• Storage temperature -20 ° ~ 60 ° C (-4 ° ~ 140 ° F)
• Humidity 20 ~ 90%

Colors

• Black and white
