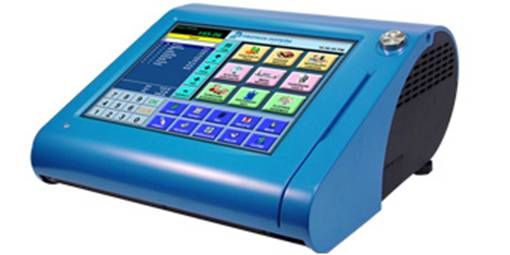

POS-terminal Protech POS3

CPU

Intel ® Atom ® N270

RAM

1 x DDR2 SO-DIMM, 512 MB DDR2 SO-DIMM (max 1 GB)

Chipset

Intel ® 945GSE & ICH7M

Network

Fast Ethernet 10/100/1000Base-T

Power Supply

120W power supply

Weight

4.5 kg (fanless)

Dimensions (W x H x D)

300 x 299 x 135 mm (11.81" x 11.77" x 5.31")

OS Compatibility

Windows XP / XPe, Linux, WEPOS, POSReady 2009

HDD

1 x 2.5" SATA HDD (160GB Standard)

CF

Bootable Compact Flash CF I / II Type memory slot

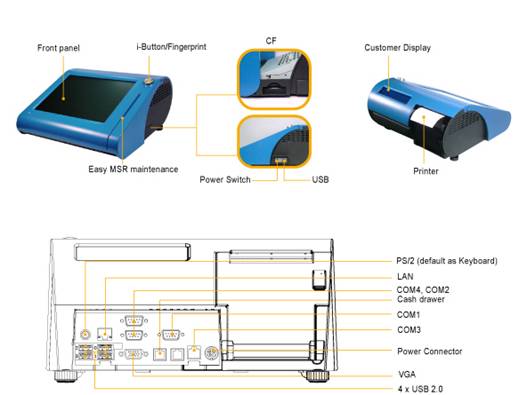

I/O

USB

4 x USB 2.0 / 1 x USB 2.0 on the bezel side

RS 232

3 x DB-9 (COM 1/2/4), 1 x RJ45 (COM 3), 5 / 12V selectable (COM1 ~ 3)

PS / 2

1 x PS / 2 ports (default from keyboard)

LAN

1 x 10/100/1000 Mbit / s

Audio

1 x speaker with 2W power

VGA

1 x DB-15 VGA interface

Drawer

1 x RJ11 port for drawer (12V/24V)

Printer

57 / 80 mm thermal printer with easy paper loading and auto cutter

Display

Viewing Angle

0 ~ 65 °

LCD

10.4" TFT LCD

Max. Resolution

1024 x 768 / 800 x 600

Brightness

300 / 230 cd / m²

Touch Screen

analog, 5-wire resistive

Environment

Operating Temperature

0° ~ 35° C (+32° ~ 95° F)

Storage Temperature

-20° ~ 60° C (-4° ~ 140° F)

Humidity

20 ~ 90%
