Powerful industrial mini PC with Intel® Core™ 13th Gen, triple 2.5 Giga LAN, eight COM ports, and triple-display output — perfect for automation, digital signage, and embedded control.
The VenBOX VB-iPC16-1335U is a next-generation industrial mini PC powered by the Intel® Core™ i5/i7 13Gen (Alder Lake) processor, offering exceptional computing performance in a compact, fanless aluminum chassis. Designed for automation, control systems, digital signage, and IoT applications, it provides high connectivity, wide voltage input, and industrial reliability for 24/7 operation.
Built on the Intel® Alder Lake architecture, the VB-iPC16 delivers outstanding performance and low power consumption. It integrates Intel® Iris® Xe Graphics for 4K triple-display output via 2 × HDMI 2.0 and 1 × DP 1.4.
Equipped with 3 × Intel i226 2.5 GbE RJ45 LANs and 8 × RS-232 COM ports (COM1 & COM2 switchable to RS-485/422 in BIOS), the system supports reliable connectivity for industrial controllers, PLCs, and automation networks.
Supports up to 64 GB DDR5 SO-DIMM memory (2 slots), dual M.2 NVMe PCIe 4.0 ×4, and 1 × SATA III 6 Gb/s for SSD/HDD — allowing fast data access and system responsiveness.
Compact fanless aluminum chassis (255 × 55 × 80 mm) ensures efficient heat dissipation and protection from dust and vibration. Wide temperature tolerance from –10 °C to +60 °C and 9 – 19 V DC input make it suitable for continuous use.
Features GPIO interface, onboard SIM slot for cellular connectivity, Wake-on-LAN, RTC, and watchdog timer for remote and autonomous operation in embedded environments.
Basic Information: |
|
| CPU | Onboard Intel Core i5-1335 |
| TDP | 15W |
| Motherboard | 19 x 15 cm |
| Chipset | Alder Lake |
| Memory | 2 x SO-DIMM DDR5 Slot, support 4GB/8GB/16GB/32GB/64GB |
| OS | Windows 10/Windows 11, WES 10, Linux |
| PXE | YES |
| Audio | Intel High Definition Audio and USB Audio and HID |
| Network | |
| 3 x Intel i226 2.5G Network Connection (10/100/1000/2500Mbps BaseT LAN) | |
| Video | Intel® Iris® Xe Graphics eligible |
Wi-Fi: |
|
| Module |
|
| Antenna | 2 x inner RF cables and 2 x external antennas |
Power and Working Environment: |
|
| Input | 100-240V AC/50-60HZ |
| Output | 12V-+19V, recommend 19V/4.74A |
| Operating Temperature | 10°C/+60°C |
| Storage Temperature | -20°C/+80°C |
| Relative Humidity | 10%~90%@30°C(non-condensing) |

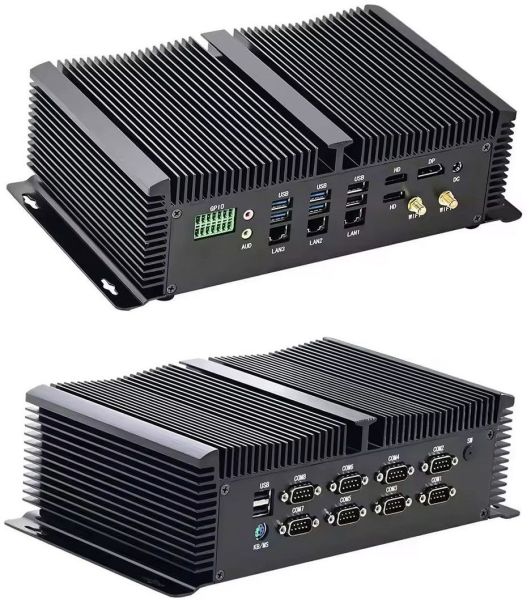

Input/output port: |
|
| Switch | 1 x Power On/Off Switch |
| Power | 1x 19V DC In |
| USB |
|
| Display |
|
| LAN | 3 x RJ45 Intel 2.5G LANs |
| COM | 8 x RS232 (COM1, COM2 can change to RS485/422 from BIOS) |
| Audio |
|
| PS/2 | 1x PS/2 |
| GPIO | 1 x GPIO |
| SIM | 1 x embedded SIM card slot onboard |
Storage: |
|
| M.2 | 2 x M.2 2280 NVMe PCIe 4.0X4 SSD slot |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Product Dimension & Details: |
|
| Size | 255 x 55 x 80mm |
| Weight | Net 1.5kg, Gross 3.5kg |
| Shell | Black color aluminum alloy (any customized color for bulk order) |
| Mounting | 4 mounting holes one the case baseplate |
| Cooling Mode | Fanless, without a cooling fan |
| Functions | AWAL, Wake On LAN, RTC, Watchdog |
Package Content: |
|
| Standard |
|
| Optional |
|
The VenBOX VB-iPC16-1335U combines industrial-grade durability, powerful Alder Lake performance, and versatile I/O in a fanless design. Ideal for automation, embedded control, digital signage, and IoT solutions where reliability, connectivity, and energy efficiency are critical.
| Manufacturer | Eglobal |
|---|
