Solid-state drives (SSDs) have become the default storage choice in modern PCs, servers, and embedded systems. But “SSD” is not a single category—two drives with the same capacity can differ dramatically in speed, endurance, latency consistency, and behavior under heat or power loss. That matters if you’re running a business workstation, an edge gateway, a mini PC in a kiosk, or an industrial computer that must operate reliably 24/7.

This article breaks SSDs down into the components that actually determine real-world outcomes: NAND flash types (SLC/MLC/TLC/QLC), reliability metrics (TBW, DWPD, MTBF and friends), and the technologies and protocols that separate a basic consumer drive from a storage solution designed for heavy workloads or harsh environments. We’ll also compare consumer vs industrial operating temperatures and discuss why thermals can be more important than peak benchmark numbers.

1) How an SSD Works (In 3 Minutes)

An SSD stores data in NAND flash memory cells. Unlike hard drives, SSDs have no moving parts. The “brain” of an SSD is its controller, which manages reading, writing, wear leveling, error correction, caching, and communication with the host system through interfaces like SATA or NVMe.

• NAND flash stores the bits (your data), but it wears out with writes.
• Controller firmware decides how to place data and how to extend life.
• Cache (DRAM or host memory buffer) helps mapping and performance.
• Over-provisioning reserves spare flash to replace worn blocks and maintain speed.
• Temperature and power stability can change behavior under load.

Key takeaway: SSD quality is not just about advertised “up to” read speed. It’s about endurance, latency stability, and the controller’s ability to handle real workloads safely.

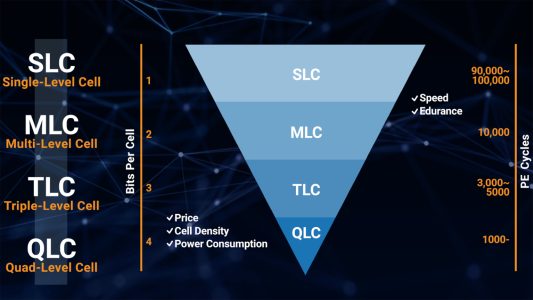

2) NAND Flash Types: SLC vs MLC vs TLC vs QLC

The biggest fundamental difference between SSDs is the number of bits stored per NAND cell:

• SLC (Single-Level Cell): 1 bit per cell
• MLC (Multi-Level Cell): 2 bits per cell (true MLC; not “marketing MLC”)
• TLC (Triple-Level Cell): 3 bits per cell
• QLC (Quad-Level Cell): 4 bits per cell

More bits per cell means higher density and lower cost per GB—but also lower endurance, more complex error correction, and slower sustained writes (especially when the SLC cache is exhausted).

2.1 The “SLC Cache” Trick (Why Some SSDs Feel Fast… Until They Don’t)

Many TLC and QLC drives use a portion of NAND as a pseudo-SLC cache. Short bursts of writes (copying a few GB, installing apps, browser cache activity) can look extremely fast. But when the cache fills, sustained write speed may drop—sometimes dramatically—because the drive must write into TLC/QLC mode and also reorganize data in the background.

Practical advice: if your workload includes large continuous writes (4K video capture, surveillance recording, industrial logging, VM images, databases), prefer higher-end TLC with strong sustained write behavior—or MLC/SLC-class industrial SSDs.

3) Reliability Metrics: TBW, DWPD, MTBF—and What They Really Mean

SSD endurance is not guesswork. Vendors use a set of industry-style metrics to communicate reliability expectations, but they are often misunderstood. Let’s decode the important ones:

3.1 TBW (Terabytes Written)

TBW is the total amount of data the drive is warranted to accept writes for during its warranty period. For example, a 1 TB SSD with 600 TBW means the vendor expects it to handle 600 TB of writes under warranty conditions.

TBW is useful for consumer and business buyers, but remember:

• It’s a warranty rating, not a guaranteed failure point.
• It depends on workload patterns and write amplification.
• Two “1 TB” SSDs can have wildly different TBW values.

3.2 DWPD (Drive Writes Per Day)

DWPD tells you how many full drive writes per day the SSD can handle over the warranty period. For example, 1 DWPD on a 1 TB drive means you can write ~1 TB per day (on average) during the warranty period.

DWPD is a common metric in enterprise and industrial specs because it directly maps to workload intensity.

3.3 MTBF (Mean Time Between Failures)

MTBF is a statistical measure of expected time between failures across a population of drives (often quoted as 1.5 million or 2 million hours). It does not mean your SSD will run for 2 million hours. Use MTBF mainly for reliability modeling and comparing product families, not for predicting the lifespan of a single unit.

3.4 Other Important Metrics: UBER, AFR, and End-to-End Data Protection

• UBER (Uncorrectable Bit Error Rate): how often an uncorrectable error might occur. Lower is better.
• AFR (Annualized Failure Rate): estimated percentage of drives that might fail per year (more common in enterprise contexts).
• End-to-end data protection: controller-level checks that help ensure data integrity across the full path (host → controller → NAND).

4) Technologies & Protocols That Matter (NVMe, DRAM, HMB, PLP, TRIM, ECC, Over-Provisioning)

Two SSDs can use the same NAND type but perform and survive very differently due to controller features and host interface. Here are the technologies that most strongly influence real-world results.

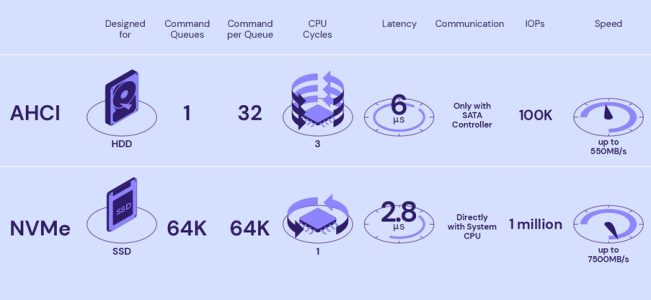

4.1 SATA vs NVMe (and Why Protocol Matters)

SATA SSDs communicate using AHCI—designed originally for hard drives. NVMe was designed for flash and supports deeper queues, lower latency, and higher throughput over PCIe.

Rule of thumb: for typical office PCs, SATA can still feel “fast enough.” For anything modern and IO-heavy—VMs, creative work, local databases, industrial analytics—NVMe is the better long-term platform. But NVMe requires thermal planning in mini PCs and sealed industrial boxes.

4.2 DRAM Cache vs DRAM-less (and the Role of HMB)

SSDs maintain a mapping table between logical blocks and physical NAND locations. Keeping this mapping in DRAM improves performance and reduces write amplification. DRAM-less SSDs store more mapping info in NAND, which can be slower and increase wear.

HMB (Host Memory Buffer) is a feature in many NVMe DRAM-less SSDs that allows the drive to borrow a small portion of system RAM to improve mapping performance. HMB can help, but it’s not always equivalent to having dedicated DRAM.

• DRAM SSD: typically better sustained performance, lower latency, better for heavy IO
• DRAM-less + HMB: decent for mainstream use, but avoid for write-heavy and latency-critical scenarios
• DRAM-less without HMB: often the lowest tier; performance may degrade under pressure

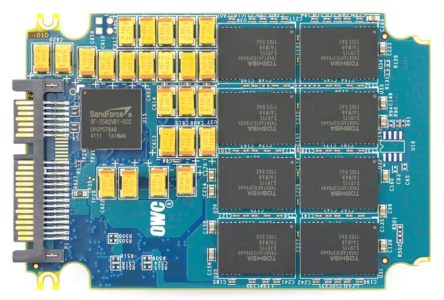

4.3 PLP (Power Loss Protection) and Why Industrial Systems Care

PLP means the SSD has power-loss protection—usually capacitors that provide enough energy to flush in-flight data from cache to NAND safely when power is cut unexpectedly.

This matters for industrial computers and transport systems where sudden power loss can happen. Without PLP, you risk:

• File system corruption
• Metadata loss (especially for databases, logs, and critical configs)
• Long recovery time or forced reimaging in the field

Note: consumer SSDs may have “data protection” marketing claims, but true PLP is typically found in enterprise/industrial SSDs.

4.4 TRIM, Garbage Collection, and Why Free Space Helps

TRIM tells the SSD which blocks are no longer in use, allowing the SSD to pre-clean them for future writes. Along with garbage collection, TRIM helps maintain performance and reduce write amplification.

Practical tip: keep at least 10–20% free space on consumer SSDs. In industrial deployments, intentionally reserve capacity using over-provisioning or partition planning.

4.5 ECC and Over-Provisioning

ECC (Error Correction Code) is essential because NAND errors increase as cells wear and as temperatures rise. Higher-density NAND like QLC depends heavily on strong ECC to remain stable over time.

Over-provisioning provides spare blocks that the SSD can use to replace worn-out areas and to maintain speed under sustained writing. Many “industrial” SSDs reserve more spare area by design.

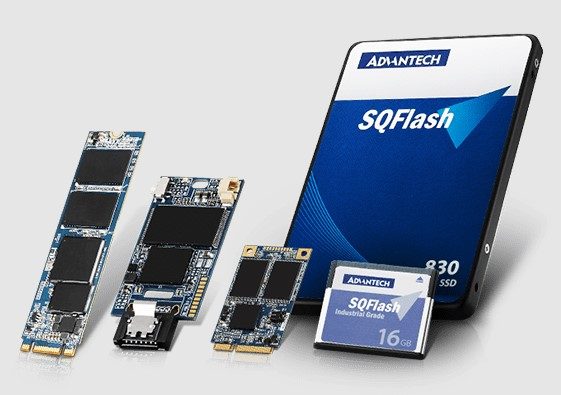

5) Consumer vs Industrial SSDs: Temperature, Environment, and 24/7 Reality

A consumer SSD can be perfect in a desktop PC, yet fail or behave unpredictably in a fanless industrial enclosure, a control cabinet, a vehicle, or an outdoor kiosk. The core issues are usually temperature, vibration, power stability, and write workload.

5.1 Operating temperature and thermal throttling

SSD controllers and NAND performance are temperature dependent. NVMe drives in particular can reach high temperatures and throttle (reduce speed) to protect themselves.

5.2 Vibration and shock

SSDs generally handle shock better than HDDs, but industrial environments can expose connectors, PCBs, and enclosures to constant vibration. For transport, use reliable mounting, avoid loose M.2 retention, and consider industrial-grade SSDs designed for such conditions.

5.3 Workload patterns: why “light office use” is different from “edge logging”

Many consumer SSDs are optimized for bursty client workloads. Industrial and IoT devices often do the opposite: write small amounts of data continuously (logs, telemetry, databases, cache, video buffers). That pattern can exhaust endurance and cause performance cliffs if the SSD is not designed for it.

6) Choosing the Right SSD: Practical Rules by Use Case

6.1 Office PC / business laptop

• Prefer TLC over QLC for long-term consistency
• NVMe is ideal, but ensure thermal control in compact laptops
• Look for reasonable TBW and a reputable controller/firmware history

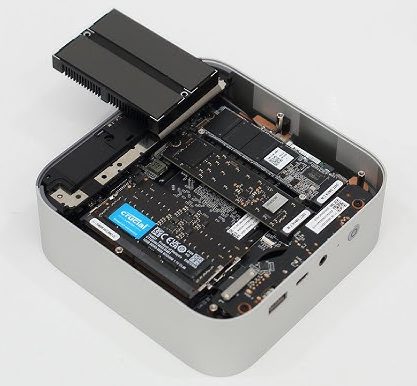

6.2 Mini PCs, kiosks, signage players (24/7)

• Choose business-grade TLC with solid sustained writes
• Plan cooling: heatsink, thermal pads, airflow path
• Consider higher endurance (higher TBW) even if capacity is the same
• Keep free space and avoid “always full” drives

6.3 Servers, NAS, virtualization

• Consider enterprise/industrial SSDs with better endurance and latency consistency
• DWPD matters more than peak sequential speed
• Prefer PLP if running databases or critical services

6.4 Industrial and transport (edge computing, automation, fleets)

• Prefer industrial SSDs with strong endurance, ECC, and (ideally) PLP
• Validate operating temperature range and actual enclosure thermals
• Design for power stability (DC-UPS, proper shutdown strategy)
• Use monitoring: SMART metrics, temperature alerts, preemptive replacements

7) Common SSD Myths and Mistakes

Myth 1: “Higher MB/s means better SSD”

Peak sequential throughput is only one dimension. For responsiveness, random IO, latency stability, and sustained writes are often more important.

Myth 2: “All TLC SSDs are the same”

Controller quality, firmware tuning, cache strategy, and over-provisioning can make two TLC drives behave completely differently under stress.

Myth 3: “QLC is always bad”

QLC can be excellent for read-heavy scenarios and large libraries where writes are low. It becomes risky when used for heavy continuous writes.

Mistake: Running an NVMe drive in a sealed box without thermal planning

If your NVMe drive throttles, you may see sudden slowdowns or unpredictable performance. In industrial systems, sustained performance matters—so thermals must be designed, not assumed.

8) Checklist: What to Look for in an SSD Specification Sheet

• Interface: SATA or NVMe (PCIe Gen3/Gen4/Gen5)
• NAND type: TLC vs QLC (or MLC/SLC-class for industrial)
• Endurance: TBW or DWPD (for your capacity)
• Cache strategy: DRAM, HMB, SLC cache behavior
• Data protection: ECC, end-to-end protection, PLP (if needed)
• Thermal behavior: operating temp range, throttling thresholds
• Warranty terms: years and endurance limit

Conclusion: Buy the SSD That Matches Your Reality

SSDs are one of the most important “hidden” components in system stability and performance. Choosing the right drive means understanding the trade-offs: NAND type, endurance metrics, controller features, and operating environment. For consumer PCs, a quality TLC NVMe drive is often the sweet spot. For 24/7 mini PCs, kiosks, and industrial computers, endurance, thermals, and power-loss resilience can matter more than peak benchmark numbers.

If you want predictable uptime and lower maintenance cost, pick SSDs as part of a system design—cooling, power stability, monitoring, and workload profile included. That approach pays off in total cost of ownership, especially in business and industrial deployments.
