PCB micro computers (industrial SBCs and embedded boards) are the hidden workhorses inside kiosks, vehicle gateways, control cabinets, and onboard transport systems.

• Compare platforms: x86/x64 vs ARM, including Raspberry Pi and industrial ARM boards
• Understand OS options: Linux vs Windows vs bare-metal (“basic”)
• Evaluate alternatives: Android MicroPC and Tibbo device servers
• Choose by use case: factories, fleets, rail, logistics, smart city, and edge AI
• Estimate Total Cost of Ownership (TCO): lifecycle, maintenance, failures, updates, and compliance

PCB micro computers—often called industrial SBCs (single-board computers), embedded controller boards, or micro PCs on a PCB—are the brains behind modern automation, mobile telematics, ticketing systems, and many 24/7 devices. Unlike office PCs, these boards are designed to survive vibration, temperature cycles, dust, and long service intervals where “just reboot it” is not an acceptable maintenance plan.

In this guide we’ll compare x86/x64 and ARM platforms (including Raspberry Pi), evaluate the role of Android MicroPC devices, and explain where a dedicated Tibbo Device Server can beat a full SBC. We’ll also cover practical OS strategies (Linux vs Windows vs bare-metal) and show how to estimate Total Cost of Ownership (TCO)— the factor that usually decides the winning architecture in industrial and transport deployments.

What “PCB Micro Computer” Means in Industrial and Transport Projects

A PCB micro computer is a compact computing platform where CPU, RAM, storage interfaces, and I/O live on a board that can be integrated into an enclosure, a vehicle gateway, or a control cabinet. It typically offers:

• Wide I/O: Ethernet, USB, UART, RS-232/RS-485, CAN, GPIO, SPI/I2C, sometimes PoE
• Industrial power: 9–36V or wider input, transient protection, ignition sensing for vehicles
• Long lifecycle: stable BOM and availability far beyond consumer hardware

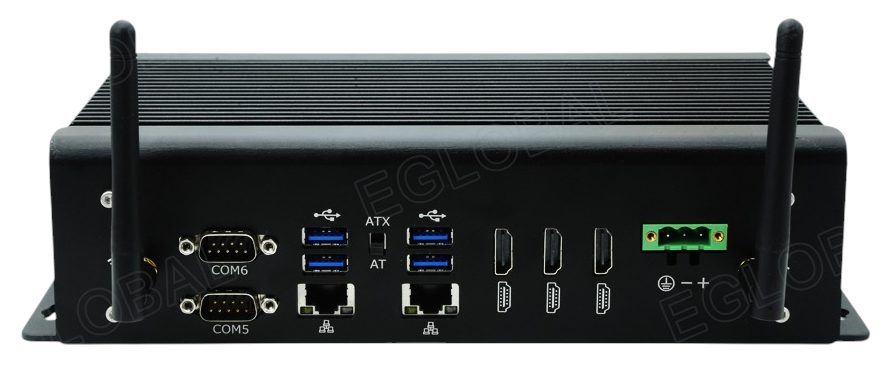

• Ruggedization: fanless designs, conformal coating options, vibration-resistant connectors
• Integration flexibility: embedded mounting, DIN-rail carriers, custom backplanes

In transport (buses, trams, rail, logistics fleets), the same concept appears as onboard computers for telemetry, e-ticketing, passenger information systems, and security/monitoring. The constraints are stronger: power disturbances, cold starts, constant vibration, and strict maintenance windows.

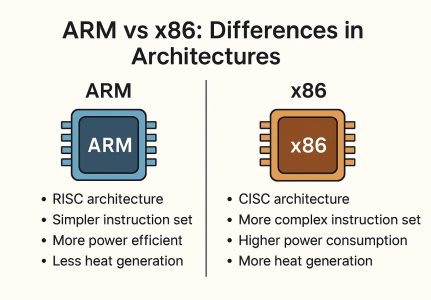

Platform Landscape: x86/x64 vs ARM (and Why It’s Not Just About Performance)

Choosing a platform is not only a CPU benchmark decision. In industrial systems, the platform defines your software ecosystem, device driver reliability, security update approach, peripheral compatibility, and long-term supply chain risk.

x86 and x64 (Intel/AMD): The Compatibility Powerhouse

x86/x64 dominates when you need maximum compatibility with industrial software stacks, Windows-based HMI/SCADA, legacy drivers, or specialized peripherals. Typical strengths include:

• Software availability: broad support for enterprise/industrial applications
• Windows ecosystem: easiest path for Windows IoT and many vendor tools
• Virtualization: helpful for consolidation, isolation, and migration projects
• PCIe expansion: more mature support for advanced NICs, accelerators, and capture cards

ARM: Efficient, Integrated, and Often Cost-Optimized

ARM-based SBCs are attractive for low power, integrated I/O, and simpler edge tasks. They excel in sensor gateways, IoT bridges, lightweight edge compute, and energy-sensitive deployments. Key strengths:

• Power efficiency: ideal for battery-backed or always-on remote nodes
• Integrated peripherals: SPI/I2C/GPIO/serial often “native” and plentiful
• Lower unit cost: especially for high-volume, standardized deployments
• Strong Linux ecosystem: good fit for containerized edge services

Quick Platform Comparison Table

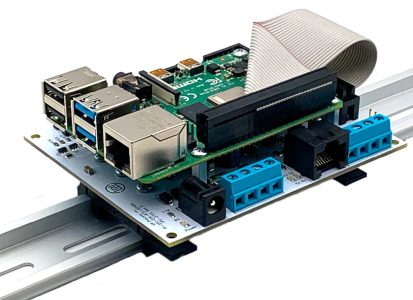

Raspberry Pi in Industrial and Transport: Great Tool, Wrong Assumptions

Raspberry Pi is often the first board engineers reach for because it is accessible, documented, and supported by a huge community. But in real industrial and transport environments, the decision requires clarity: Raspberry Pi can be excellent—if you build an industrial system around it correctly.

Where Raspberry Pi Makes Sense

• Prototype and pilot projects where time-to-first-demo matters
• Edge gateways with light compute and predictable peripherals
• Digital signage with controlled supply chain and stable images
• Lab/education deployments that later migrate to industrial SBCs

Where Raspberry Pi Often Fails in Production

• Storage risk: SD cards are not industrial SSDs; you need proper endurance strategy
• Availability volatility: consumer supply constraints can disrupt projects
• EMC and enclosure: you must engineer shielding, grounding, and connectors properly
• Maintenance: unmanaged OS images and updates become a fleet problem fast

If Raspberry Pi is your platform choice, treat it like an industrial product: use industrial storage (or SSD boot), locked-down OS images, watchdogs, thermal management, and a controlled update channel. Otherwise, Raspberry Pi becomes a “cheap board” that produces expensive downtime.

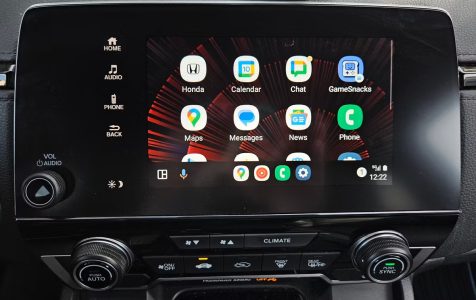

Android MicroPC: When “Appliance UI” Beats General-Purpose Computing

Android MicroPC devices are compact computers based on SoCs often used for media playback, kiosks, infotainment, and simple edge interfaces. In industrial/transport contexts, Android can be surprisingly effective when: the workload is mostly UI, touch interaction, media, and cloud integration.

Advantages of Android MicroPC in the Field

• Fast UI development: mature frameworks and hardware acceleration
• Appliance behavior: consistent boot-to-app operation (kiosk mode)
• Low power: typical SoC efficiency suits always-on devices
• Peripheral ecosystem: cameras, LTE modems, Bluetooth, GNSS often integrate smoothly

Limitations You Must Accept

• Industrial I/O: RS-485/CAN/Modbus often requires gateways or vendor-specific drivers
• Lifecycle management: update policy depends on vendor; long-term support can be uncertain
• Hard real-time: Android is not a real-time OS; deterministic control is a poor fit

A good rule: use Android MicroPC for kiosk-like roles (ticket machines, passenger screens, dispatch terminals), and pair it with a dedicated industrial controller or gateway for deterministic I/O tasks.

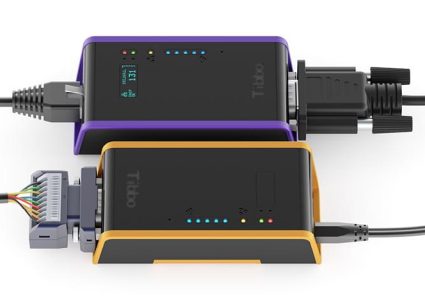

Tibbo Device Servers: The “Less Computer, More Reliability” Option

When your main task is to bring legacy serial devices (RS-232/RS-485) onto Ethernet/IP networks, a full SBC may be unnecessary. Tibbo Device Servers and similar embedded gateways can be a better fit: fewer moving parts, fewer updates, simpler failure modes, and often higher reliability for pure connectivity.

What a Device Server Solves Well

• Serial-to-Ethernet bridging for Modbus RTU, NMEA, proprietary protocols
• Reliable port virtualization and remote management
• Industrial field wiring with minimal OS maintenance
• Deployments where “no unnecessary software” is a security requirement

When You Still Need a Full PCB Micro Computer

• Edge analytics, local database, or complex logic
• Multi-interface gateways (LTE, Wi-Fi, GNSS, CAN) with local processing
• Multiple applications, containers, or custom UI

Device Server vs SBC vs Android MicroPC: A Practical Table

Operating Systems: Linux vs Windows vs Bare-Metal (“Basic”)

The OS choice impacts everything: driver support, security updates, remote management, application stack, and the daily effort required to keep a fleet stable.

Linux: Flexible, Automatable, and Great for Edge Gateways

• Strengths: strong networking, containers, automation, cost control, customization
• Ideal for: gateways, edge services, data collection, protocol translation
• Watch-outs: you need disciplined image management and update policy

Windows (including IoT / embedded variants): The App Compatibility Path

• Strengths: vendor tools, Windows HMIs, many peripherals “just work”
• Ideal for: SCADA/HMI, industrial UI apps, enterprise integration
• Watch-outs: update strategy, licensing model, long-term servicing approach

Bare-Metal / Basic Firmware: Minimal Attack Surface, Maximum Control

“Basic” systems—microcontroller firmware or tiny RTOS-like stacks—are still relevant when you want: deterministic behavior, minimal maintenance, and a very small security surface.

• Strengths: reliability, low overhead, predictable behavior
• Ideal for: simple controllers, connectivity boxes, dedicated appliances
• Watch-outs: limited features, higher development cost for complex logic

OS Decision Matrix

Industrial and Transport Use Cases: Where PCB Micro Computers Shine

PCB micro computers usually win when you need a compact, rugged, integratable platform that can run continuously and survive the real world. Here are the most common high-value deployments.

Industry (Factories, Energy, Utilities)

• Edge gateways: data acquisition from PLCs and sensors (Modbus, OPC UA gateways)
• Machine vision edge nodes: pre-processing images before cloud/central analytics
• SCADA/HMI panels: embedded PCs behind touchscreens and industrial monitors
• Predictive maintenance: vibration/temperature monitoring with local analytics

Transport (Fleet, Rail, Logistics)

• Telematics gateways: GNSS + LTE + CAN/OBD integration with local buffering
• Ticketing & passenger info: onboard validation systems, displays, route data
• Video + storage: NVR-style solutions in vehicles with shock-resistant storage
• Cold start and power events: designed for ignition cycles and voltage spikes

Smart City / Public Infrastructure

• Parking meters and roadside cabinets with industrial power and weather protection
• Remote monitoring nodes for lighting, traffic control, and environmental sensing
• Connected kiosks and outdoor terminals (often paired with climate control devices)

Price vs Quality: What You Really Pay For

Engineers often compare only unit price. However, in industrial and transport deployments, the real cost is not the board—it's the service lifecycle. That’s why low-cost consumer boards sometimes become the most expensive choice.

Typical Price Bands (Very Rough Guidance)

Instead of focusing only on price, evaluate: expected downtime cost, support effort, required spares, and the cost of field maintenance visits. In transport, a single “truck roll” or depot visit can exceed the price difference between consumer and industrial hardware.

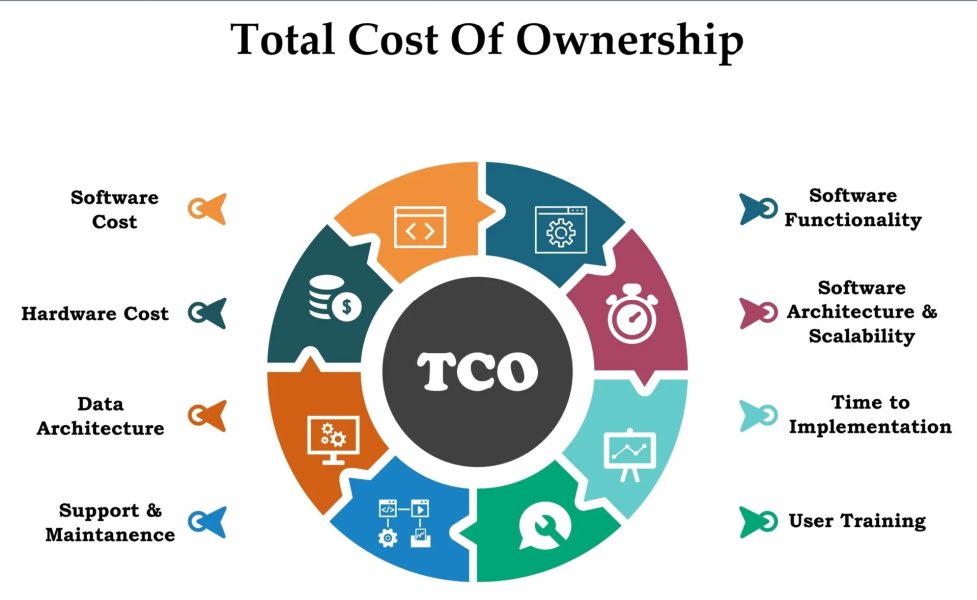

Total Cost of Ownership (TCO): The Embedded Reality Check

TCO is the sum of all costs across a product’s life: design, integration, deployment, updates, failures, replacements, and end-of-life migration. In industrial and transport systems, TCO can dominate hardware cost by a wide margin.

TCO Components You Should Include

• Engineering cost: porting drivers, building images, test automation, compliance
• Production cost: carrier boards, connectors, enclosures, thermal components
• Fleet management: remote monitoring, update pipelines, incident response
• Downtime cost: lost revenue, SLA penalties, operational disruption
• Spares strategy: stock, storage, replacements, compatibility across revisions
• End-of-life: migration effort when the platform becomes unavailable

Simple TCO Comparison Table (Example Logic)

The takeaway: if your device must operate 24/7, in vehicles, outdoors, or in industrial cabinets, you rarely win by saving a small amount on the board and paying repeatedly in maintenance and downtime later.

How to Choose the Right PCB Micro Computer: A Practical Checklist

1) Start With the Use Case (Not the CPU)

• Is this primarily connectivity (serial-to-Ethernet)? Consider a device server.
• Is this primarily UI and media? Android MicroPC or x86 with a locked-down image.
• Is this edge compute with analytics? Industrial x86/x64 or strong ARM with proper storage.

2) Define the Environment

• Temperature range, condensation risk, dust exposure
• Vehicle power events: cold crank, load dumps, ignition cycles
• Vibration and shock constraints (mounting + connectors matter)
• EMC/EMI requirements (shielding, grounding, metal enclosure)

3) Plan the Software Lifecycle Upfront

• How will you update devices? Scheduled windows? OTA? Depot-only?
• How will you monitor health (watchdog, telemetry, logs)?
• What is your security policy (patching, certificates, access control)?

4) Storage Strategy Is Not Optional

• Prefer industrial SSD/eMMC for 24/7 write workloads
• Use read-only root partitions or overlay FS where possible
• Implement log rotation and telemetry buffering carefully

5) Evaluate Vendor and Supply Chain

• Expected availability: 3–5 years vs 7–10 years matters in transport
• Documentation quality and driver support
• Ability to provide consistent revisions and long-term support

Recommended Architecture Patterns (Industry & Transport)

Pattern A: “Gateway + Cloud” for Fleet and Remote Sites

• Industrial ARM SBC with LTE/GNSS + RS-485/CAN interfaces
• Linux with containers for protocol translation and buffering
• Optional device server for isolated serial networks

Pattern B: “Windows HMI + Embedded IO” for Automation

• x86/x64 industrial board running Windows (or IoT variants)
• Dedicated I/O modules (RS-485, GPIO, fieldbus) with known drivers
• Strict update windows + kiosk-style locked down environment

Pattern C: “Android Terminal + Industrial Gateway” for Kiosks

• Android MicroPC handles UI and user interaction
• Industrial gateway/device server handles Modbus/serial and secure networking
• Clear separation reduces attack surface and maintenance load

Conclusion: The Best Board Is the One With the Lowest “Surprise Cost”

PCB micro computers are foundational to modern industrial and transport systems—from factory gateways to onboard fleet controllers. The winning design is rarely the cheapest board in a spreadsheet. It is the platform that offers: stable supply, predictable software lifecycle, reliable I/O, and a realistic path to manage a fleet for years.

If you need maximum compatibility and industrial software support, x86/x64 is often the safest choice. If you need efficiency and integrated I/O for gateways, ARM platforms can deliver excellent value. For pure connectivity tasks, Tibbo device servers and similar gateways can outperform a full SBC in reliability and maintenance cost. And when the workload is UI-centric, Android MicroPC can be an efficient appliance—especially when paired with an industrial gateway.

Ultimately, your decision should be driven by TCO: maintenance effort, update strategy, downtime risk, and supply chain stability. That is where industrial-grade PCB micro computers prove their value—not only in performance, but in years of predictable operation.
