VoIP telefon DMP330 (IPP-

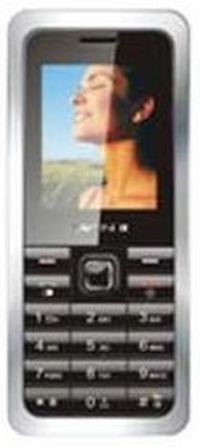

VoIP Phone DMP330 is the dual mode handset that supports both GSM900/1800/1900 and VoIP over WiFi (WLAN) network.
The handset can be used outdoors in the GSM network areas and also in Hot spot circumstances with WiFi usage. It is a SIP based VoIP in a suitable 802.11 WiFi environment.

Feature

• Form Factor: Bar Type
• Screen: 1.8” TFT LCD
• Phone function: Triband GSM Phone and WiFi SIP phone
• Camera: 1.3M Pixel CMOS sensor
• Multimedia: MP3 Player
• Phonebook capacity: 1000 records
• Ringtone: 64 Polyphonic or MP3 downloadable ringtone
• JAVA: MIDP2.0
• External Memory: MicroSD
• Internet Browser: WAP
• E-Mail: POP3/IMAP4
• Bluetooth: A2DP
• WiFi Security: WPA2

Specification

GSM:

• Triband (GSM-900 DCS-1800 PCS-1900)
• GPRS Class 10
• Vocoder: HR/FR/EFR/AMR

WiFi VoIP Phone:

• WiFi : IEEE802.11b/g
• Protocol: SIP RFC3261
• Vocoder: G.711ALaw/ G.711uLaw/ G.726(24/32kbps)/ G.823.1/ G.729

Camera:

• Resolution: Small/ Middle/ Large(1280x1024Pixel)
• Sensor: CMOS 1.3M Pixel
• Other: Low Lux photo Display:
• 1.8” TFT LCD with 262k colors
• Resolution: QCIF+ (176x220 pixel)
• LCM Luminance: 150cd/m2

Multimedia:

• Audio Format: MP3, AAC, AAC+
• Melody: 25 selectable melodies
• Video player/recorder : MPEG4, H.263, 3GPP
• JAVA: MIDP 2.0+ JSR185
• Application: picture, ringtone, calendar, game

Hardware Basic:

• Talk time: 240min (GSM Mode), 160mins (VoIP Mode)
• Standby time: 180hrs (GSM Mode), 150hrs (VoIP Mode)
• Battery Capacity: Lithium 1000mAh
• Antenna type: embedded antenna
• Build-in Storage memory: 64MB
• Ring-in type: melody or vibrator

Environment

• Dimension: 105(L)x45(W)x15(T) mm
• Weight: 89
• Operating temperature: 0~40?
• Storage temperature: -20~60?
• Operating humidity: 20%~80%

Certification Compliance:

• FCC Part 15 Class B
• CE Class B
• EN60950
