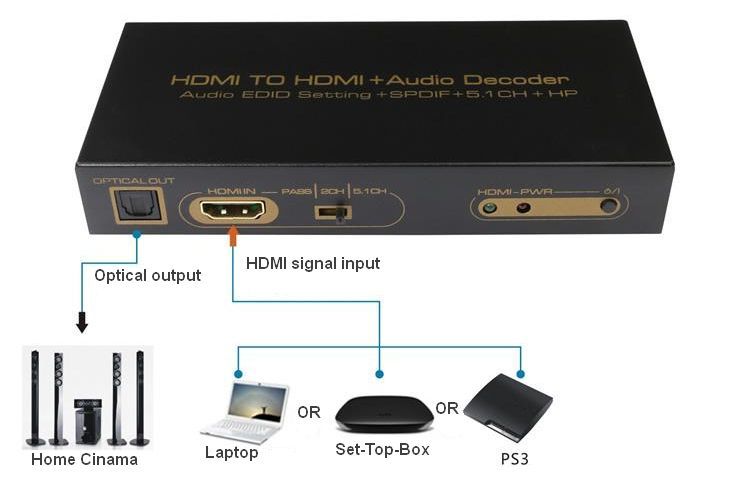

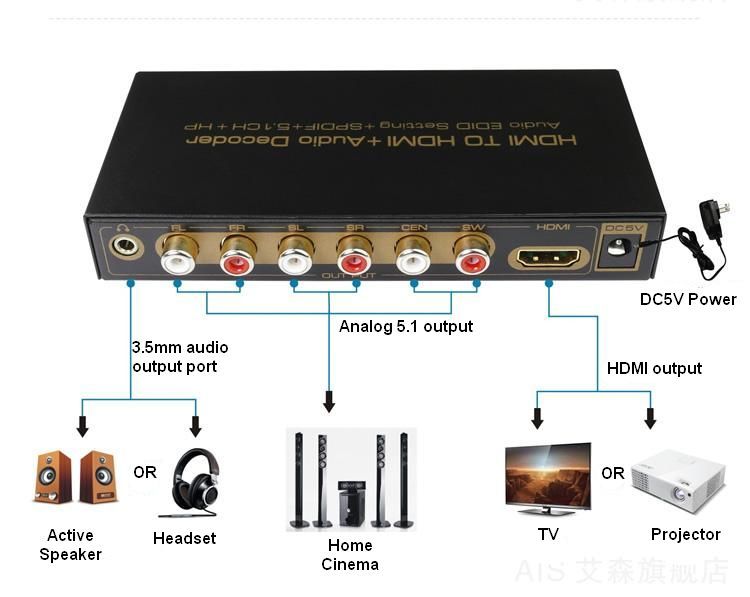

The HDMI TO HDMI audio decoders can help you to separate HDMI signal to synchronized HDMI signal and digital audio SPDIF optical output, after internal audio DSP decoding and high-quality DAC converter output 5.1 channel analog audio to your amplifier. Support Dolby Digital AC-3, DTS, LPCM and other digital audio formats decoding. With DVD player, Blu-ray player, Network player, HDMI high-definition output terminal set-top box, PS2, PS3, Xbox360, PC and other entertainment devices.
| HDMI resolution | up to 1080P/50/60fs (3D 24/30fs) |
| Video color format | Support 24bit/deep color 30bit, 36bit |
| HDMI Audio Format | DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD |
| Digital audio decode format | Dolby Digital (AC3)/DTS/LPCM 2CH |
| HDMI Maximum bandwidth | 225MHz |
| HDMI Maximum baud rate | 6.75Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p (TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| DSP sample frequency range | 32~96 KHz |
| DSP Bit rate range | 16~24 Bit |
| Analog output level (1kHz@0dB) | 1V RMS |
| SNR @ 0dB (CCIR/ARM) | >=85dB |
| Distortion | <=0.1% |
| Frequency response | 20Hz~20KHz |
| Headphone output power (1kHz@0dB RL=32) | 20mW |
| HDMI input cable distance | <=15m AWG26 HDMI standard cable |
| HDMI output cable distance | <=18m AWG26 HDMI standard cable |
| Maximum working current | 500mA |
| Power adapter format Input | AC 100V~240V 50HZ/60Hz, DC5V/1A |
| Operating Temperature range | -10 to +55oC |
| Storage Temperature range | -20 to +60oC |
| Operating Humidity range | 10 to 90%RH (No Condensation) |
| Storage Humidity range | 5 to 95%RH (No Condensation) |
| Dimensions | 139 x 64 x 22mm |
| Weight | 220g |
| Manufacturer | ASK |
|---|---|
| Power Supply | N/A |
| Color | Black |
