Rugged industrial fanles

Name: Rugged industrial fanles mini PC VenBOX G13-10200H Intel Core i7 10Th, 3xHDMI 1.4, 2xRJ45, 2xIntel 2.5G LAN, 6xCOM, GPIO
Brand: Eglobal
SKU: G13-10750H
Price: 5139.00 PLN
Availability: InStock

SKU

G13-10750H

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PLN 5,139.00

In stock

The VenBOX G13-10200H is a rugged industrial fanless mini PC powered by an Intel Core i7 10th Generation processor. With 3x HDMI 1.4 outputs, 2x RJ45 ports, 2x Intel 2.5G LAN, 6x COM ports, and GPIO support, this mini PC is designed for high performance in harsh environments. Perfect for automation, visualization, and IoT gateway applications in Industrie 4.0 settings.

Notify me when the price drops

Rugged industrial fanles mini PC VenBOX G13-10200H Intel Core i7 10Th, 3xHDMI 1.4, 2xRJ45, 2xIntel 2.5G LAN, 6xCOM, GPIO is available to buy in increments of 1

Categories: Industrial PC, Industry

Free Delivery

For all oders over $110

14 Days Return

For any reason

Secure Payment

100% secure payment

24/7 Support

Dedicated support

Details

Fanless system

Advanced passive cooling system to ensure fanless operation, even under full load and in harsh environments.

Modular design

I/O, wireless, storage and PCIe configuration for great flexibility.

Designed for high performance

Equipped with Intel® Tiger Lake-UP3 and an integrated Iris Xe GPU, the Alderamin Pico MK4 offers great computing performance, e.g. for ML and AI.

Operating temperature

Wide operating temperature range from -40 to +70 °C for trouble-free operation in harsh environments.

Wide DC-in range

9 - 48 V DC input for maximum power supply flexibility.

6 COM ports + GPIO

Providing flexibility to connect devices and machines for serial data transmission.

Extremely robust Industrial Grade mini PC suitable for wide range use. Equipped with powerful Intel Core i7 10Th Generation CPU computing power for a wide range of automation and visualization tasks. Due to their impressive computing power in relation to their size, the PCs are mainly suited for use in Industrie 4.0 applications, for example as an IoT gateway.

Highlight

Optional Intel 8th/9th/10th generation H-series core i5/i7 CPU
2 x Intel i225V 2.5G LAN and 6 x DB9 COM (2 x COM can change to RS232/485/422 from BIOS)
Support 3 x HDMI 1.4 three display output synchronously
Support 2 x DDR4 RAM slot, max 64GB DDR4 RAM
Full Aluminum Alloy Black colour shell for heat dissipation, Exquisite production creation outside design
Fanless system without cooling fan, fit for industrial grade field, works as long as 24 hours
Installation: support desktop and wall-mounted.

Specification

Basic Information:
CPU Onboard	Intel Comet Lake 14nm CPU Intel Core i7-10750H 4.8GHz Max 5.0GHz (Turbo boost Technology) Six Cores Twelve Threads 12MB cache TDP 45W Intel UHD Graphics Intel Comet Lake 14nm CPU Intel Core i5-10200H 2.4GHz Max 4.1GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 45W Intel UHD Graphics
TDP	Refer to the above CPU
Chipset	SOC
Memory	2xSO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB
OS	Windows 10, Windows 11, WES 10, Linux
PXE	YES
Audio	Intel high-definition audio controller
Network	2 x Intel(R) i225V Gigabit Network Connection l0/l00Mbps/l000Mbps BaseT LAN
Video	Refer to the above CPU
Storage:
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
M.2	1 x M.2 slot for NVME 2280 SSD
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi:
Module	1 x mini PCIe-half port for Wi-Fi/Bluetooth module, 1 x mini PCIe-full port for 3G/4G/WiFi & Bluetooth module
Antenna	2 x inner RF cables and 2 x external antennas
Input/output port:
Switch	1 x Power On/Off Switch
Power	1 x 3pin phoenix terminal power supply input, support 9~36V
Button	1 x ATX/AT quick switch
USB	4 x USB3.0, 2 x USB2.0
Display	3 x HDMI 1.4
LAN	2xRJ45 Intel 2.5G LAN
COM	6 x DB9 C0M(2xC0M support RS232/RS422/RS485)
GPIO	1 x GPIO( 7pin input, 7pin output)
Audio	lx MIC, IxSPK
SIM	1 x embedded SIM card slot onboard
Others	1 x CMOS clear button, 1 x 2pin phoenix terminal power supply input
Power and Working Environment:
Input	100-240V AC/S0-60HZ
Output	9V~36V
Operating Temperature	-20°C/+60°C
Storage Temperature	-30^oC/+70°C
Relative Humidity	10%~90%@30°C(non -cond en sing)
Product Dimension & Details:
Size	24015065mm
Weight	Net 2kg, Gross 2.5kg
Shell	Black colour aluminum alloy(any customized colour for bulk order)
Mounting	4 mounting holes on the case baseplate
Cooling Mode	Fanless, without a cooling fan
Functions	AWAL, Wake On LAN, RTC, Watchdog
Package Content:
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag 2xWi-Fi antennas, 1xHDMI cable, 1xUser eManual,
Optional	1xLong Screws Bag

Accessories: Picture of outer packing for reference only is subjected to change without notice. SATA cable, Brown Packing Box, Screw HDD, Stents, WiFi, Power cable, Power adapter

The Package includes:

1 * Mini PC Device
1 * EU/AM/BR/AU standard Power Adapter
1 * Set of SATA power and data cables (for 2.5" hard drive installation)
1 * Plastic Stand Holder
2 * WiFi Antennas
1 * HDMI Cable

Fanless Industrial Mini PC: 2x Intel i225V 2.5G LAN, 6 x DB9 COM + 6 x USB, Support 3 x HDMI 1.4 triple display, Support Windows 11 OS via TPM2.0, 2 x RJ45 Intel 2.5G LAN, 1 x mini PCIE-half, 1 x mini PCIE-full, 4 x USB3.0, 2 x USB2.0, Work as long as 24 hours, 6 x DB9 COM, 3 x HDMI 1.4, triple display, Fanless no cooling fan, Completely sealed and dustproof

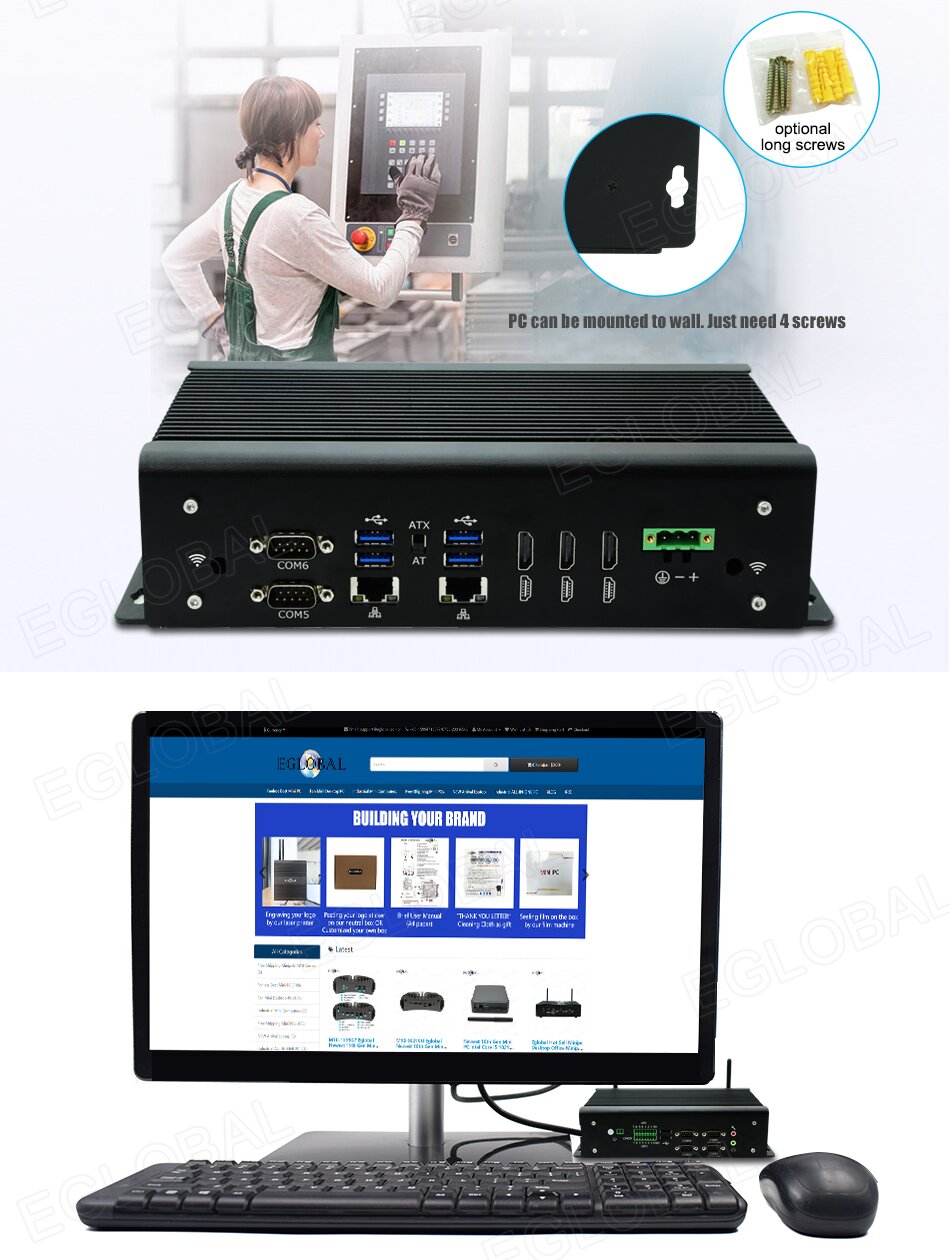

4G/WIFI Module Can be equipped with 3G/4G communication or Wi-Fi connection module, and embedded with a SIM card slot, remote wireless communication more convenient, aliminating wiring troubles. Support Wi-Fi Installation The base cover with 4 x holes for hung on walls
