  • Industrial Mini PC VenBOX G3 Embedded Intel Core i3 8130U, Dual LAN, 6*COM, SIM

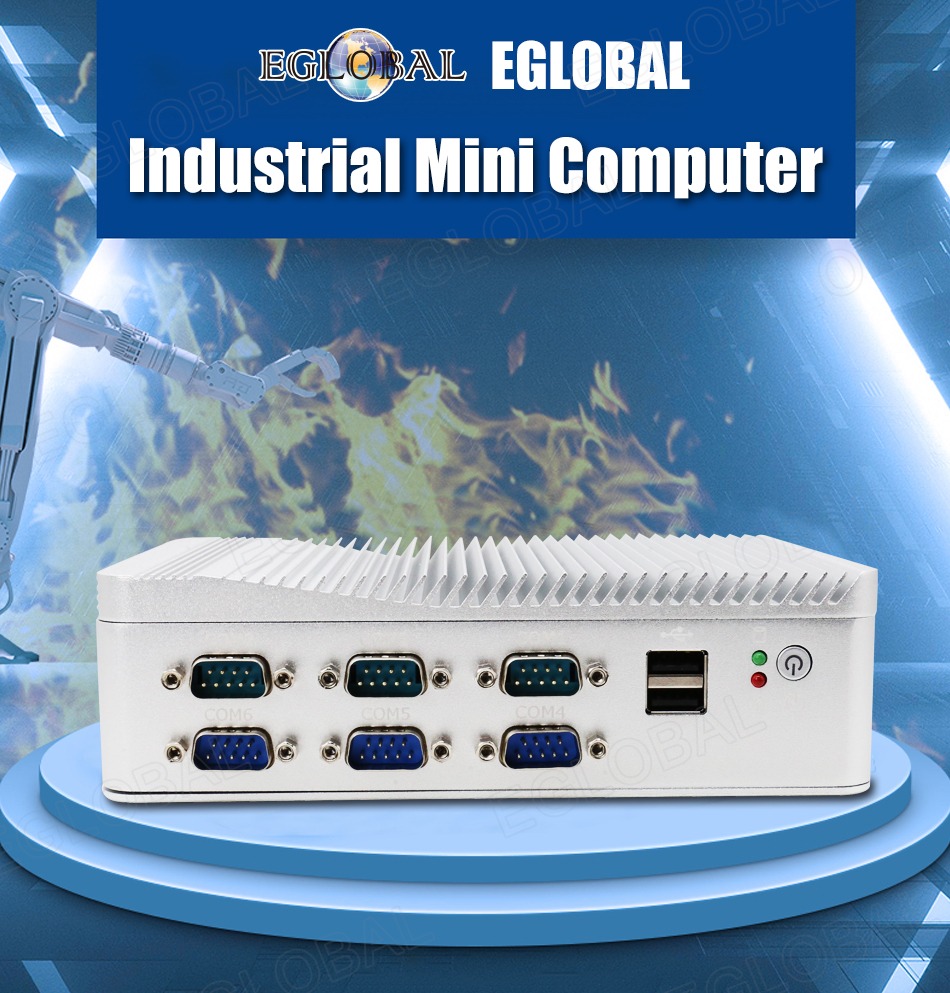

Industrial Mini PC VenBOX

SKU
G3
main product photo
PLN 1,999.00
Out of stock
G3 industrial mini PC with Intel Core i3-8130U, dual LAN, 6×COM ports, SIM slot, fanless design, ideal for automation, kiosks, and embedded systems.
Notify me when the price drops
Notify me when this product is in stock
Categories: Windows mini PC, Industrial PC

Free Delivery
For all oders over $110

14 Days Return
For any reason

Secure Payment
100% secure payment

24/7 Support
Dedicated support

The Eglobal G3 Embedded Industrial Mini PC is a compact, fanless, and high-performance solution engineered for industrial and commercial applications. Powered by the Intel Core i3 8130U processor, it combines stability, connectivity, and flexibility for demanding environments such as automation, kiosks, digital signage, and embedded control systems.

Benefits

  • Reliable performance: Intel Core i3 8130U processor ensures smooth multitasking and stability.
  • Industrial connectivity: Dual LAN and 6×COM ports support legacy and modern devices.
  • Compact & fanless: Silent operation, dust-resistant design, and energy efficiency.
  • Flexible expansion: SIM slot for 4G/5G communication, storage expansion options.
  • Versatile deployment: Ideal for kiosks, POS, factory automation, and IoT projects.

Key Features

  • Processor: Intel Core i3 8130U (dual-core, 2.2GHz, up to 3.4GHz).
  • Memory: DDR4 SO-DIMM support (up to 32GB, model-dependent).
  • Storage: mSATA / M.2 / 2.5" SSD options for flexible storage.
  • Networking: Dual Gigabit LAN ports for redundancy and secure connections.
  • Serial Ports: 6×COM (RS-232/422/485) for industrial equipment.
  • SIM slot for mobile broadband connectivity (4G/5G).
  • Fanless, compact, and rugged chassis designed for 24/7 operation.
  • Rich I/O: USB, HDMI/DP/VGA outputs (model dependent).

Specification

Basic Information:
CPU Intel Core i3-7100U/ i3-8130U
TDP 15W
Motherboard Intel CRESCENTBAY ( Lynx Point-LP )
BIOS AMI BIOS, ACPI supported
Chipset KabyLake
Memory 1 x SO-DIMM DDR4 Slot 4GB/8GB/16GB/32GBDDR4-2400, LPDDR3-2133
OS Win10
PXE YES
Audio ALC662 HD Audio, 6 channel sound
Network Onboard 2.5G Network Connection 10/100Mbps/1000Mbps/2500Mbps BaseT LAN
Video Intel® HD Graphics 620
Storage:
mSATA 1 x mSATA3.0 slot for mSATA SSD
SATA 1 x SATA3.0 slot for SATA HDD or SSD

Power and Working Environment:
Input 100-240V AC/50-60HZ
Output 12V~+19V, recommend 12V/5A
Opera ti ng Tem perat ure 0/+60Centigrade
Relative Humidity 10%~90% (non-condensing)
Storage Temperature -20/+85 Centigrade
Relative Humidity 0%~50% (non-condensing)
MTBF MTBF =" S0,000h
Vibration frequency (5~ 200 Hz) (1g) acceleration amplitude (0.5mm)
Impact Acceleration (10g) duration (11MS)

Input/output port:
Switch 1 x Power On/Off Switch
Power 1 x 12V DC In
LED 2 x LED
USB 4 x USB3.0, 2 x USB2.0
Display 1 x VGA, 1 x HDMI 1.4
LAN 2 x RJ45 2.5G LAN
COM 6 x RS232 COM
Audio 1 x MIC, 1 x SPK
Others 1 x embedded SIM card slot onboard

Wi-Fi:
Module 1 x mini PCIE-haIf port for WiFi module 1 x mini PCIE-full port for 3G/4G module
Antenna 2 x inner RF cables and 2 x external antennas

Product Dimension & Details:
Size 180*120*52.5mm
Weight Net 1.05kg, Gross 2.0kg
Shell Silver color aluminum alloy (any customized color for bulk order)
Cooling Mode Fanless
Functions Watchdog, Auto power on, RTC, PXE boot. Wake On LAN

Package Content:
Standard
  • 1 x Mini PC,
  • 1 x Power Adapter,
  • 1 x Power Cord,
  • 1 x Screws Bag
  • 2 x WiFi antennas
  • 1 x HDMI cable
  • 1 x User Manual (paper, EN)
Optional
  • 1 x VESA mounting kit

Typical Applications

  • Factory automation and process control.
  • Self-service kiosks and vending machines.
  • Retail POS and digital signage.
  • Network security appliances and firewalls.
  • IoT gateways and embedded solutions.

Summary

The Eglobal G3 Industrial Mini PC delivers powerful computing in a small, fanless form factor. With Intel Core i3 8130U, dual LAN, 6×COM ports, and SIM connectivity, it’s a perfect choice for industrial automation, kiosks, and embedded projects. Available now at VenSYS online Store.

Eglobal G3 Embedded Industrial Mini PC – Intel i3 8130U, Dual LAN, 6 COM, SIM
6 x COM 1 x mini PCIE-half port for WiFi module 1 x mini PCIE-full port for 3G/4G module 4 x USB3.0 2 x USB2.0 Work as long as 24 hours VGA + HDMI dual display Fanless Completely sealed and dustproof

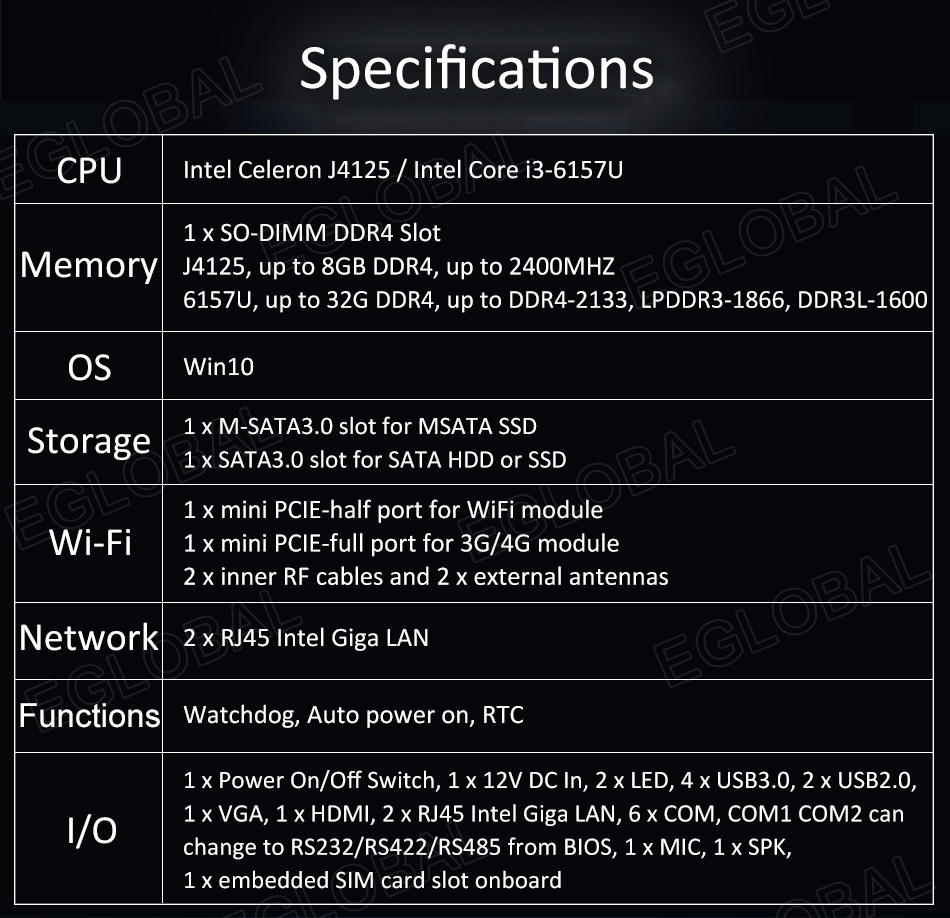

Specifications CPU Intel Celeron J4125 / Intel Core i3-6157U Memory 1 x SO-DIMM DDR4 Slot J4125, up to 8GB DDR4, up to 2400MHZ 6157U, up to 32G DDR4, up to DDR4-2133, LPDDR3-1866, DDR3L-1600 OS WinlO Storage 1 x M-SATA3.0 slot for MSATA SSD 1 x SATA3.0 slot for SATA HDD or SSD Wi-Fi 1 x mini PCIE-half port for WiFi module 1 x mini PCIE-full port for 3G/4G module 2 x inner RF cables and 2 x external antennas Network 2 x RJ45 Intel Giga LAN Functions Watchdog, Auto power on, RTC I/O 1 x Power On/Off Switch, 1 x 12V DC In, 2 x LED, 4 x USB3.0, 2 x USB2.0, 1 x VGA, 1 x HDMI, 2 x RJ45 Intel Giga LAN, 6 x COM, COM1 COM2 can change to RS232/RS422/RS485 from BIOS, 1 x MIC, 1 x SPK, 1 x embedded SIM card slot onboard

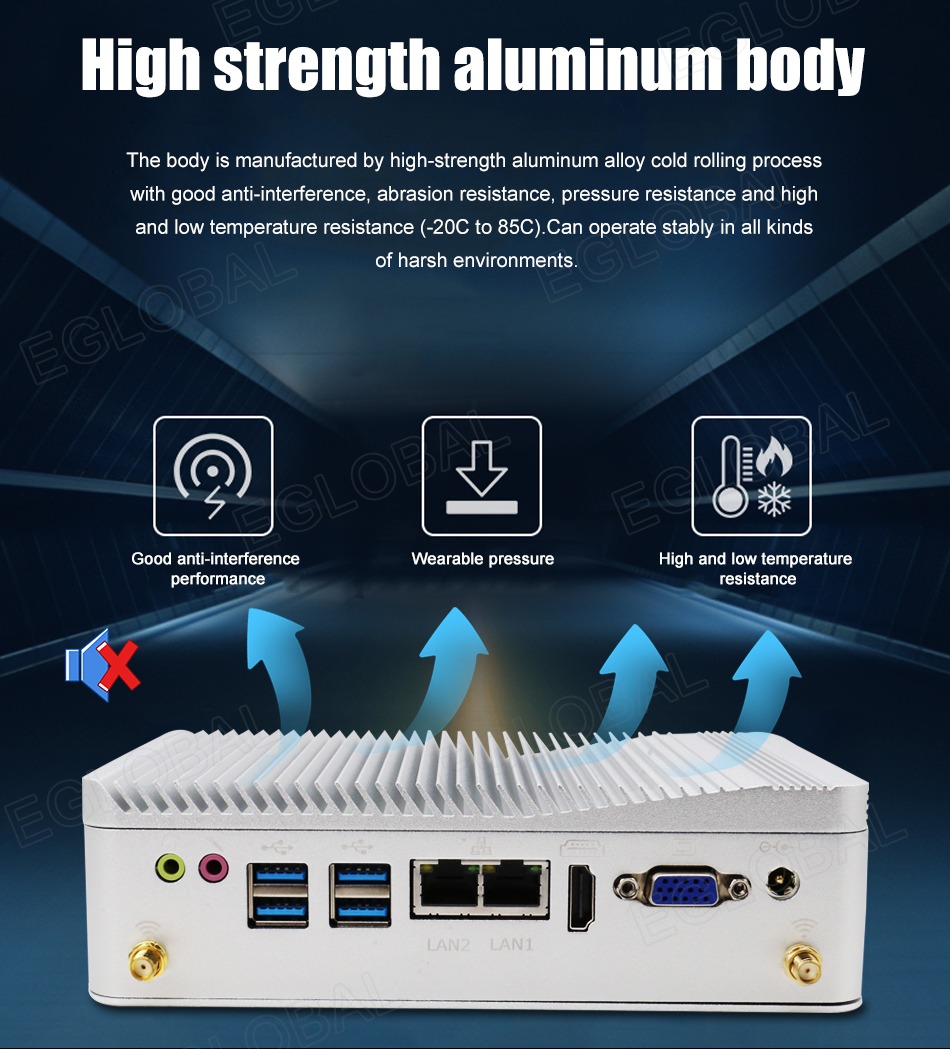

High strength aluminum body The body is manufactured by high-strength aluminum alloy cold rolling process with good anti-interference, abrasion resistance, pressure resistance and high and low temperature resistance (-20C to 85C).Can operate stably in all kinds of harsh environments. Good anti-interference performance Wearable pressure High and low temperature resistance

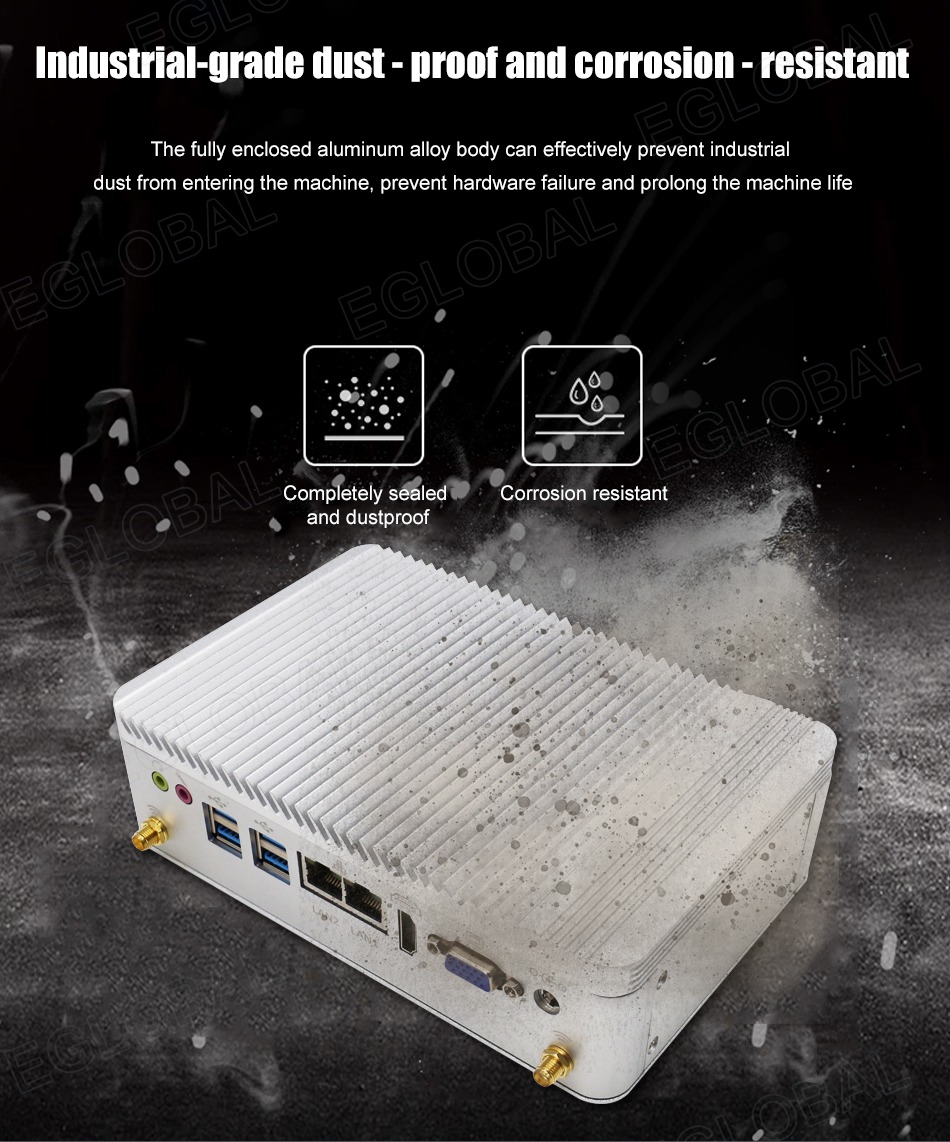

Industrial-grade dust - proof and corrosion - resistant The fully enclosed aluminum alloy body can effectively prevent industrial dust from entering the machine, prevent hardware failure and prolong the machine life Completely sealed and dustproof Corrosion resistant

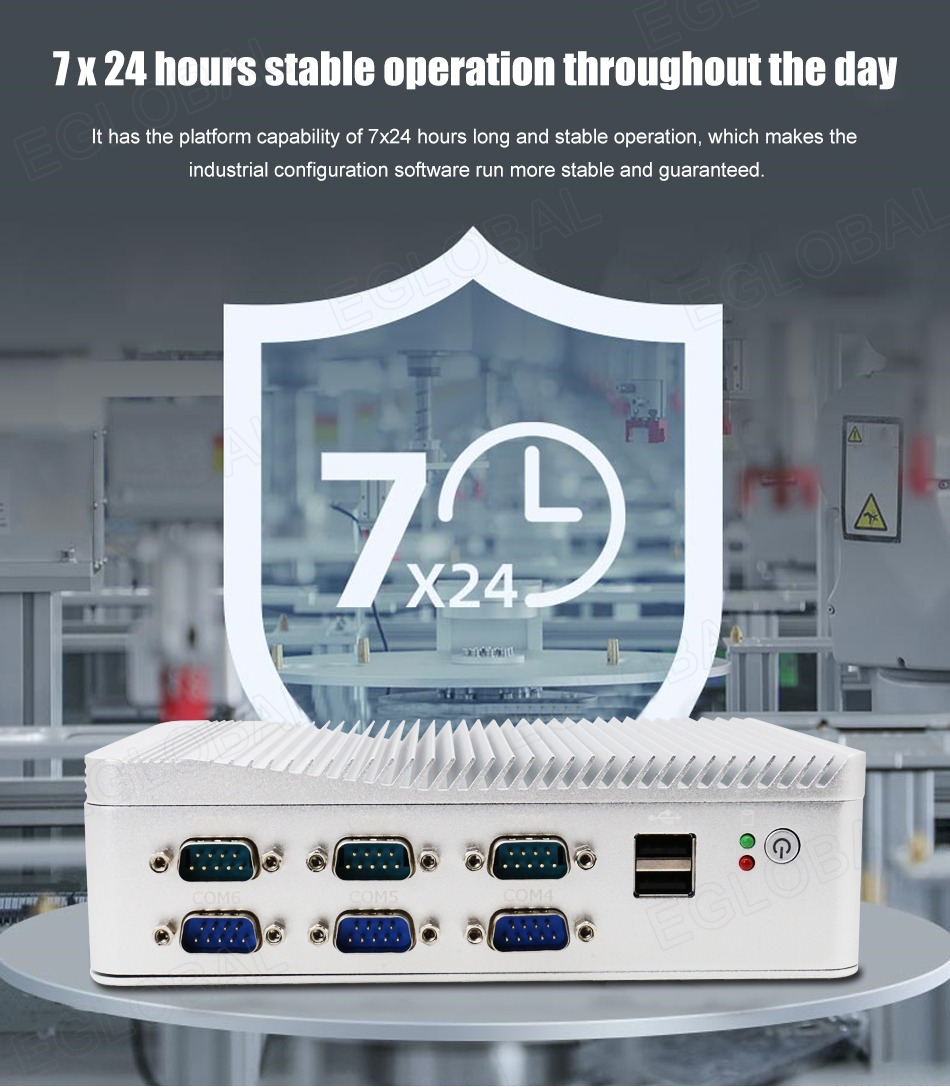

7 x 24 hours stable operation throughout the day It has the platform capability of 7x24 hours long and stable operation, which makes the industrial configuration software run more stable and guaranteed.

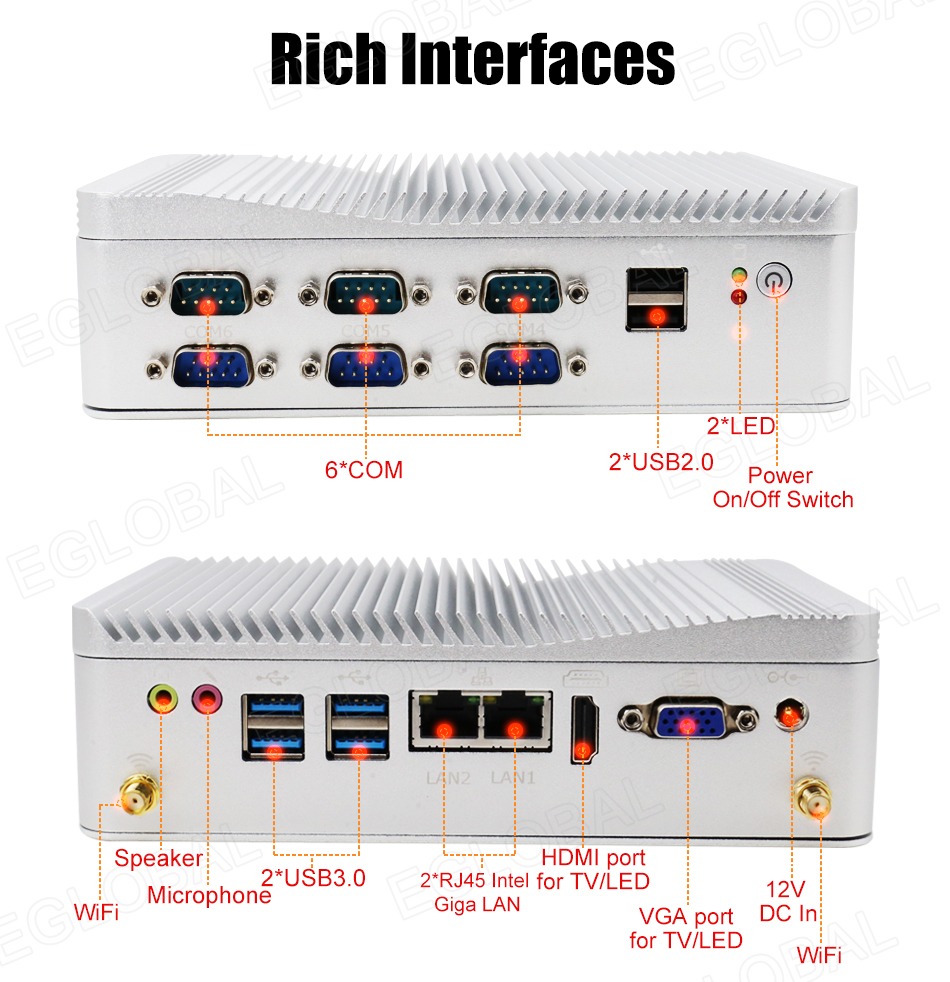

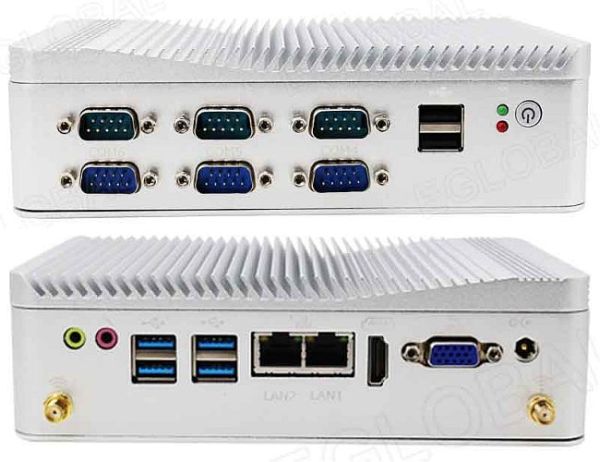

Rich Interfaces 2*USB2.0 2*1 FD 6*C0M On/Off Switch Speaker 2*USB3.0 HDMI port WiFi Microphone 2*RJ45 Intel for TV/LED Giga LAN VGA port for TV/LED 12V DC In WiFi

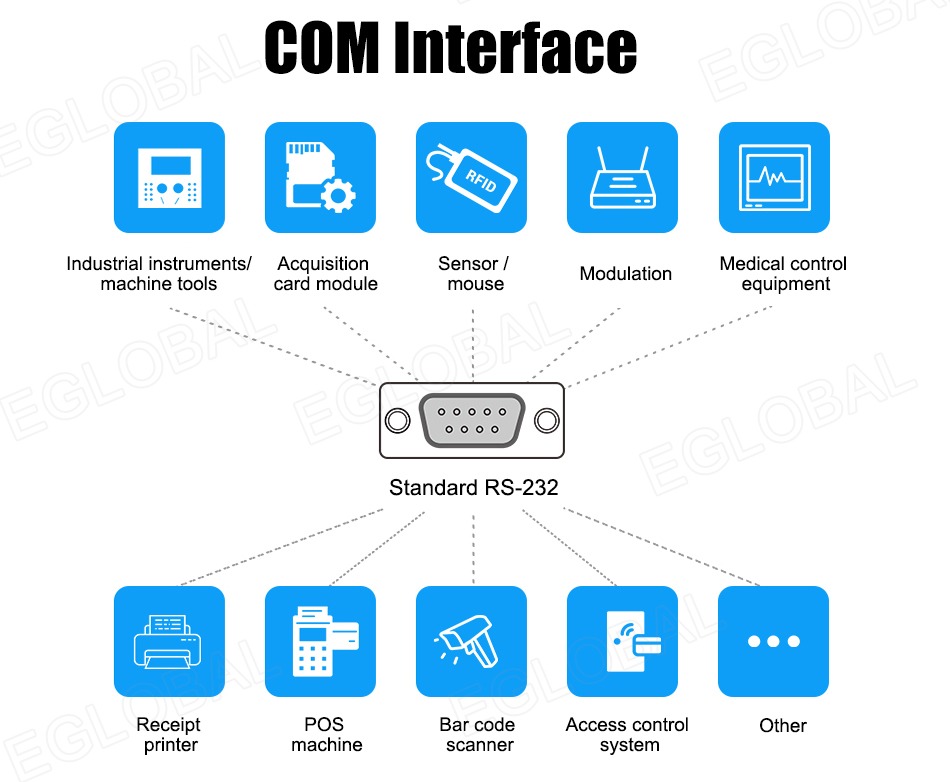

COM Interface Industrial instruments/ machine tools Acquisition card module Sensor/ mouse Medical control equipment Standard RS-232 Receipt POS Bar code Access control Other printer machine scanner system

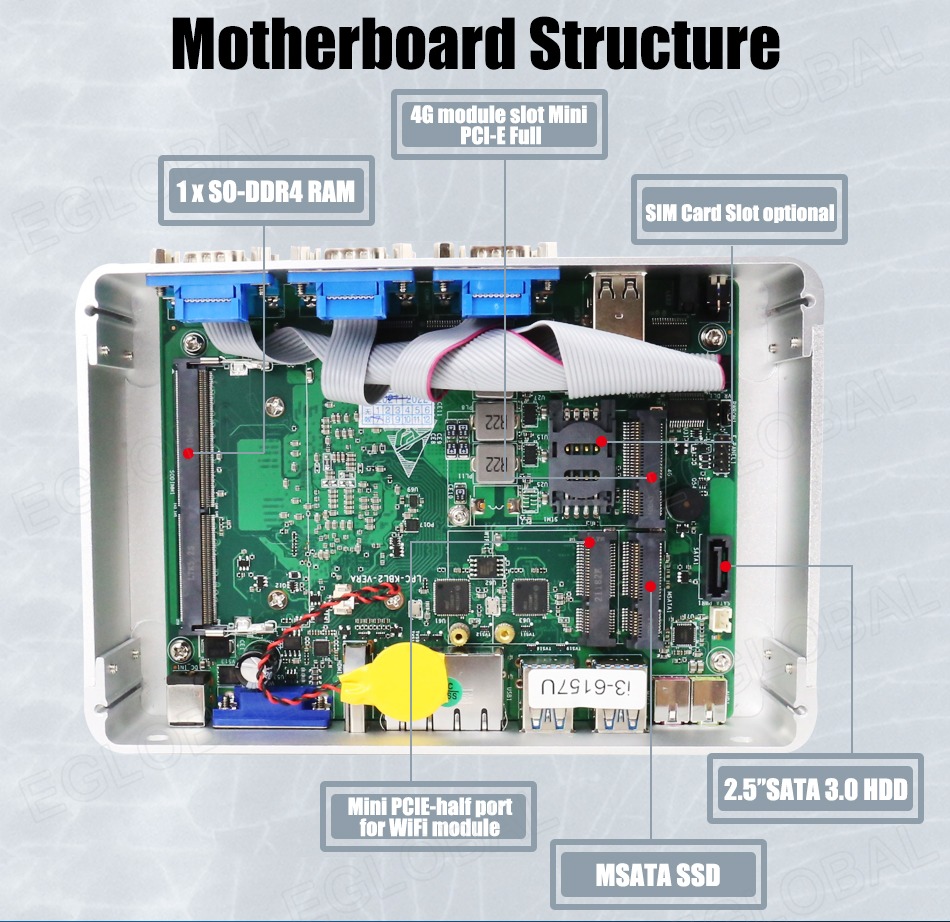

Motherboard Structure 1XS0-DDR4RAM 4C module slot Mini PCI-E Full SIM Card Slot optional Mini PCIE-half port for WiFi module 2.5”SATA3.0 HDD

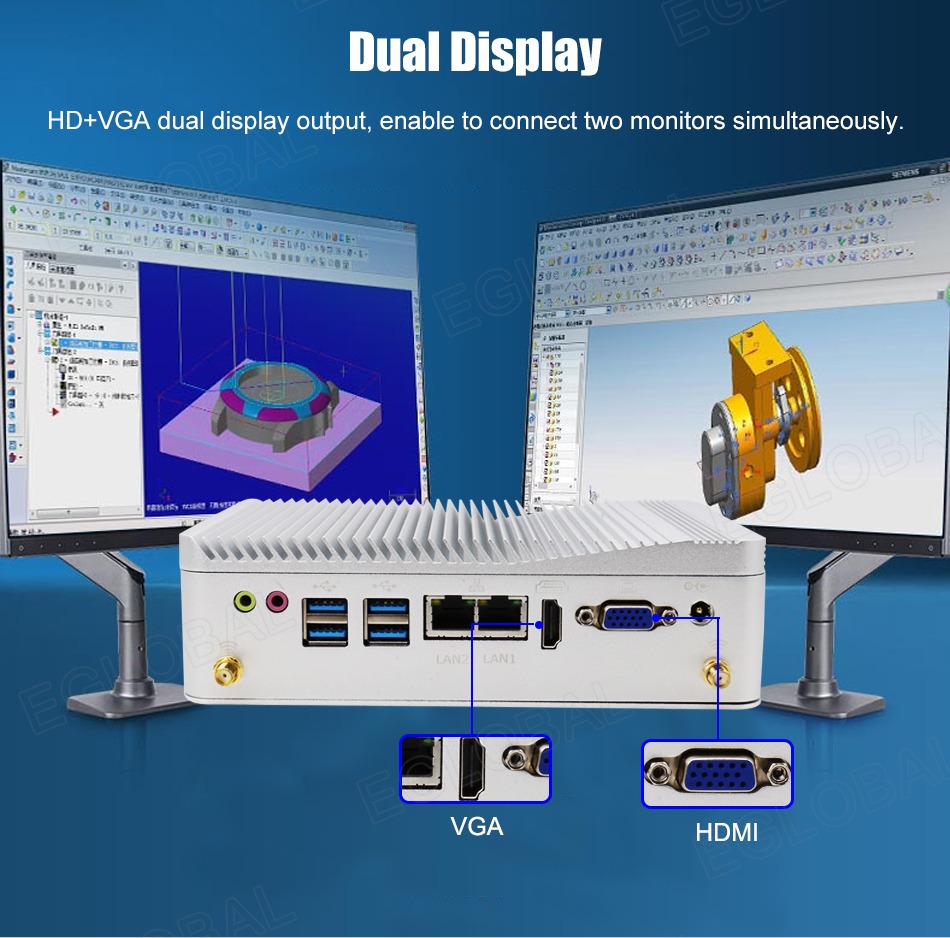

Dual Display HD+VGA dual display output, enable to connect two monitors simultaneously. VGA HDMI

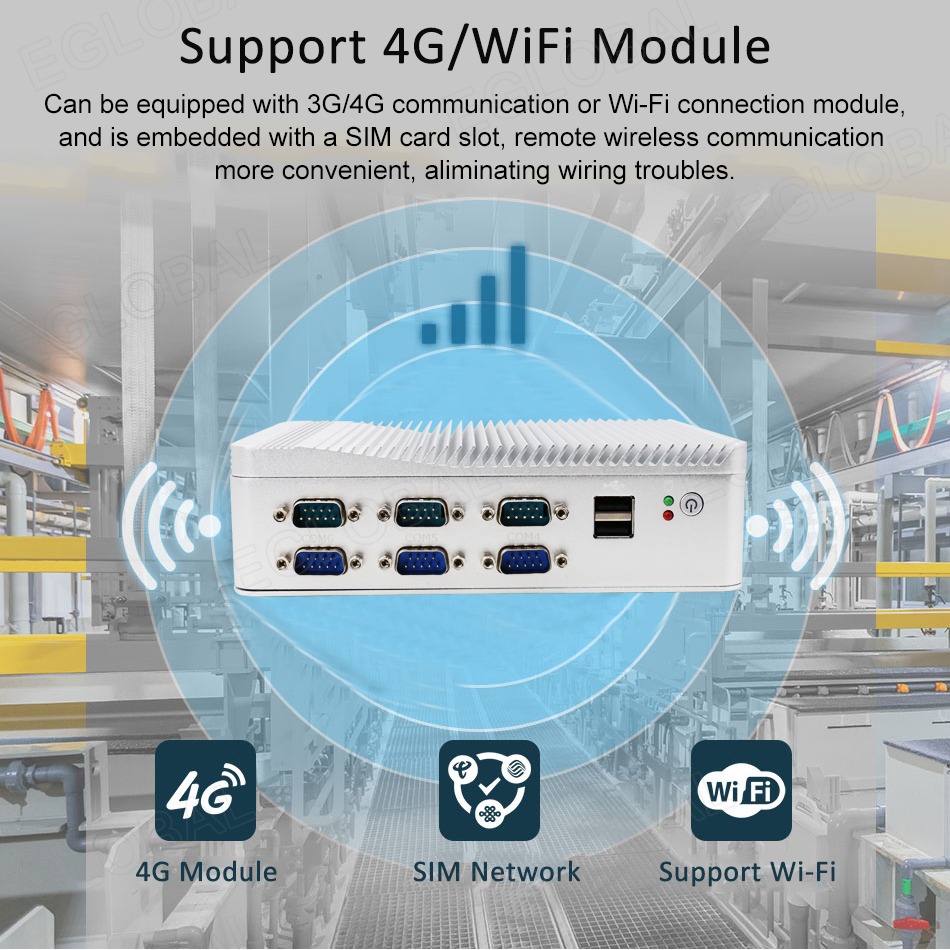

Support 4G/WiFi Module Can be equipped with 3G/4G communication or Wi-Fi connection module, and is embedded with a SIM card slot, remote wireless communication more convenient, aliminating wiring troubles. 4G Module SIM Network Support Wi-Fi

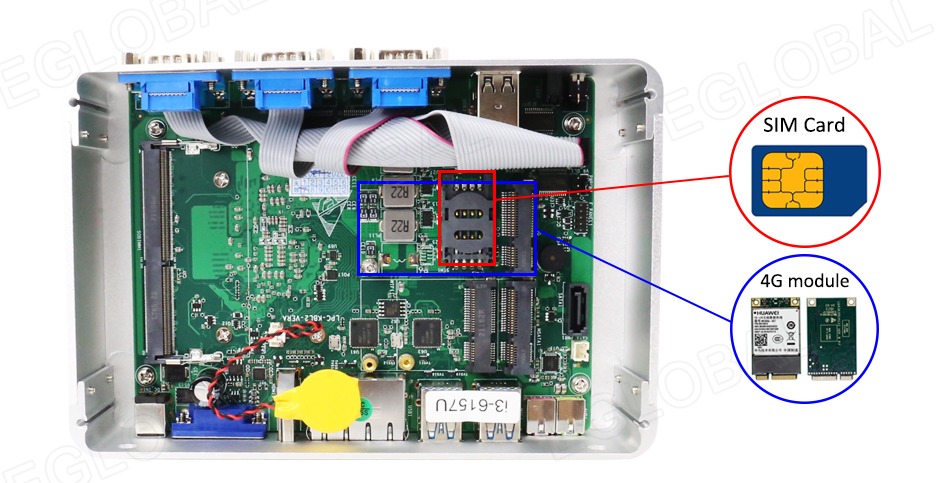

SIM Card 4G module

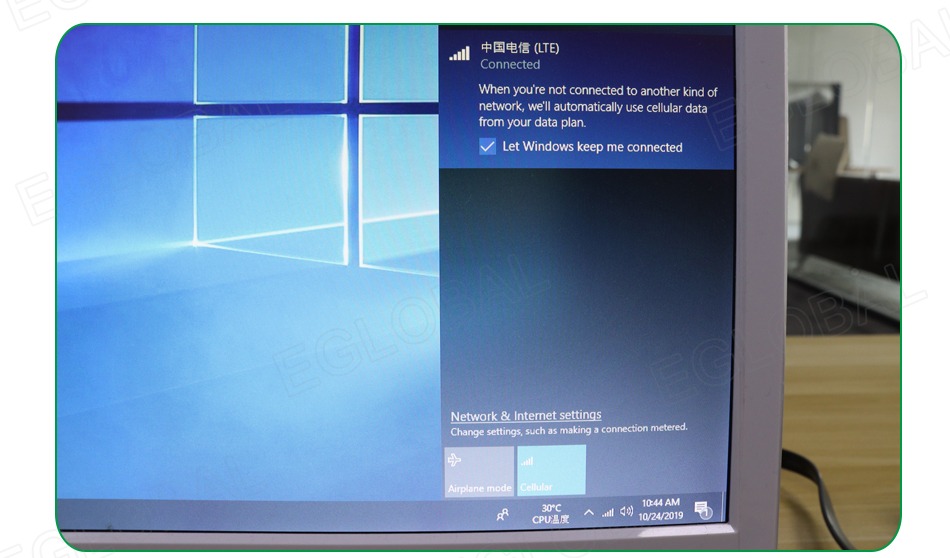

Connected When you’re not connected to another kind of network, we'll automatically use cellular data from your data plan. Let Windows keep me connected Network & Internet settings Change settings, such as making a connection metered.

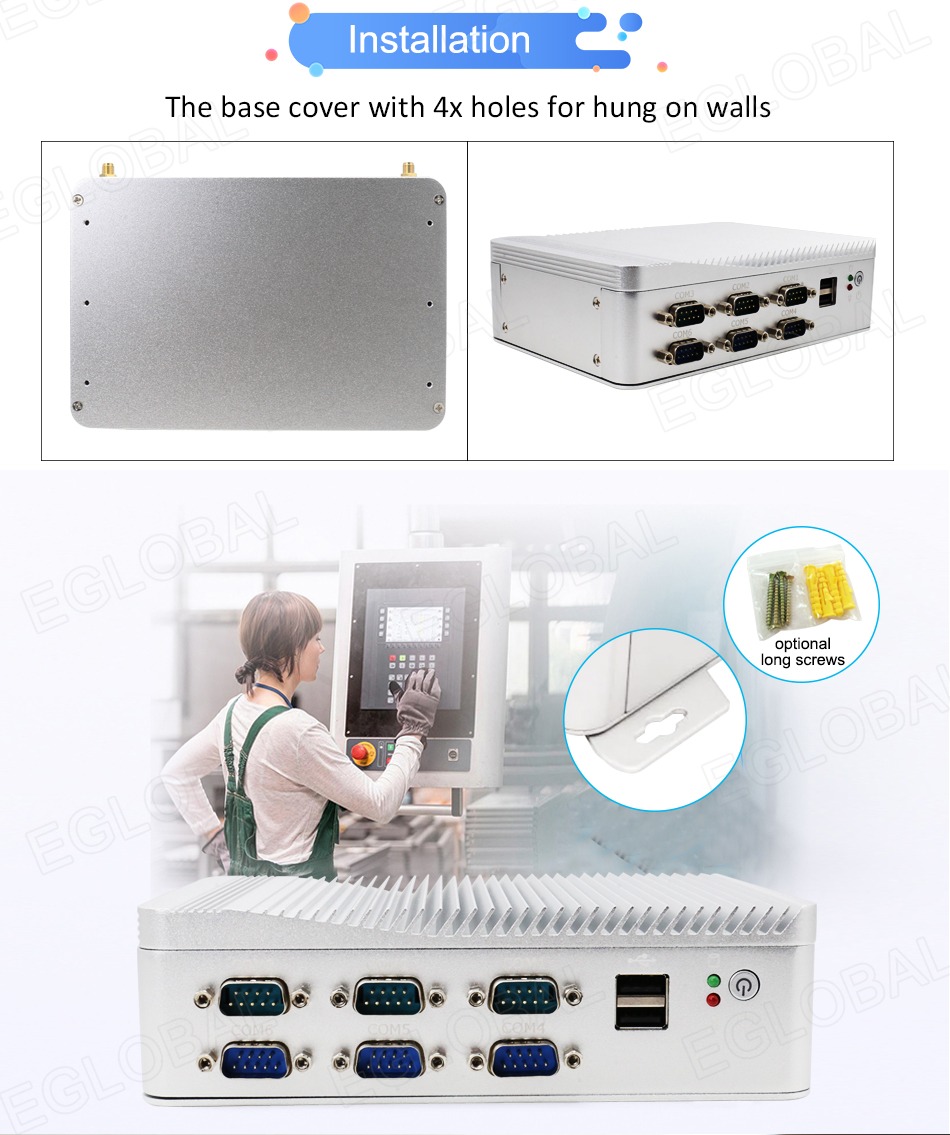

Installation - The base cover with 4x holes for hung on walls

Eglobal G3 Embedded Industrial Mini PC – Intel i3 8130U, Dual LAN, 6 COM, SIM
PC can be mounted to wall. Just need 4 screws

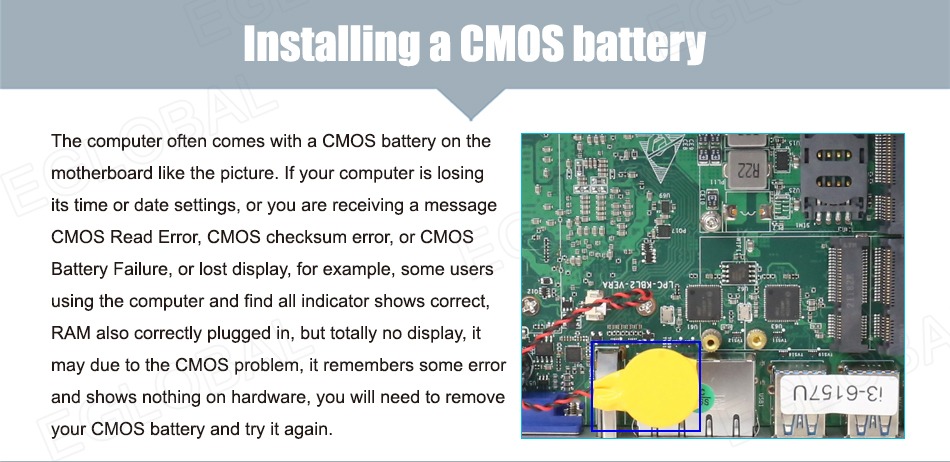

Installing a CMOS battery The computer often comes with a CMOS battery on the motherboard like the picture. If your computer is losing its time or date settings, or you are receiving a message CMOS Read Error, CMOS checksum error, or CMOS Battery Failure, or lost display, for example, some users using the computer and find all indicator shows correct, RAM also correctly plugged in, but totally no display, it may due to the CMOS problem, it remembers some error and shows nothing on hardware, you will need to remove your CMOS battery and try it again.
Installing Operating System Can support Windows7/8/10 & Linux OS When you want to install a new operating system for the computer, first you need to figure out which one you want to use, Operating systems have varies of system requirements, so make sure that your computer can handle a new operating system. Note: If our package don't include CD Driver, pis contact our Pre-sales to give you the Driver link to download if you install a new Operating System.
Application Automatic equipment Digital signage system Multimedia classroom Internet of Things system Large supermarket Gate access control system

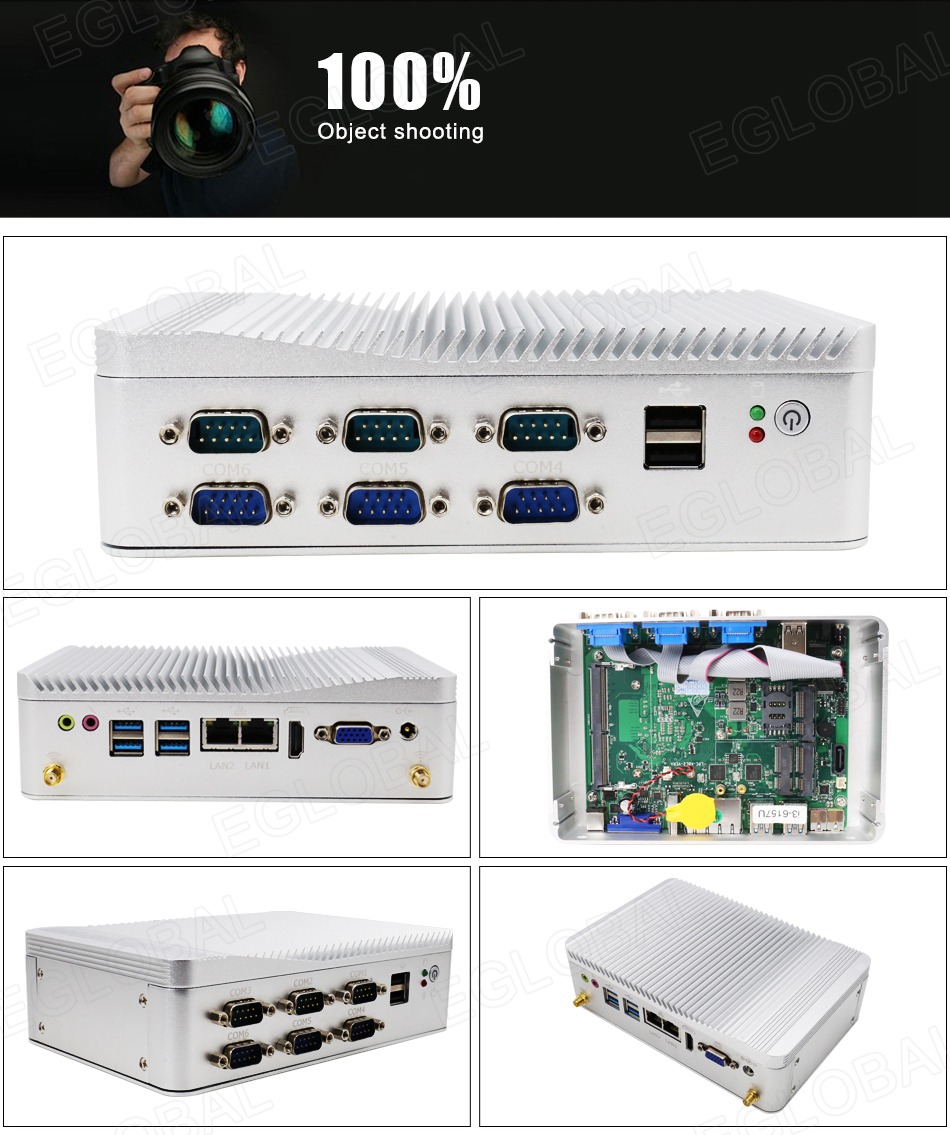

Real foto - 100% Object shooting

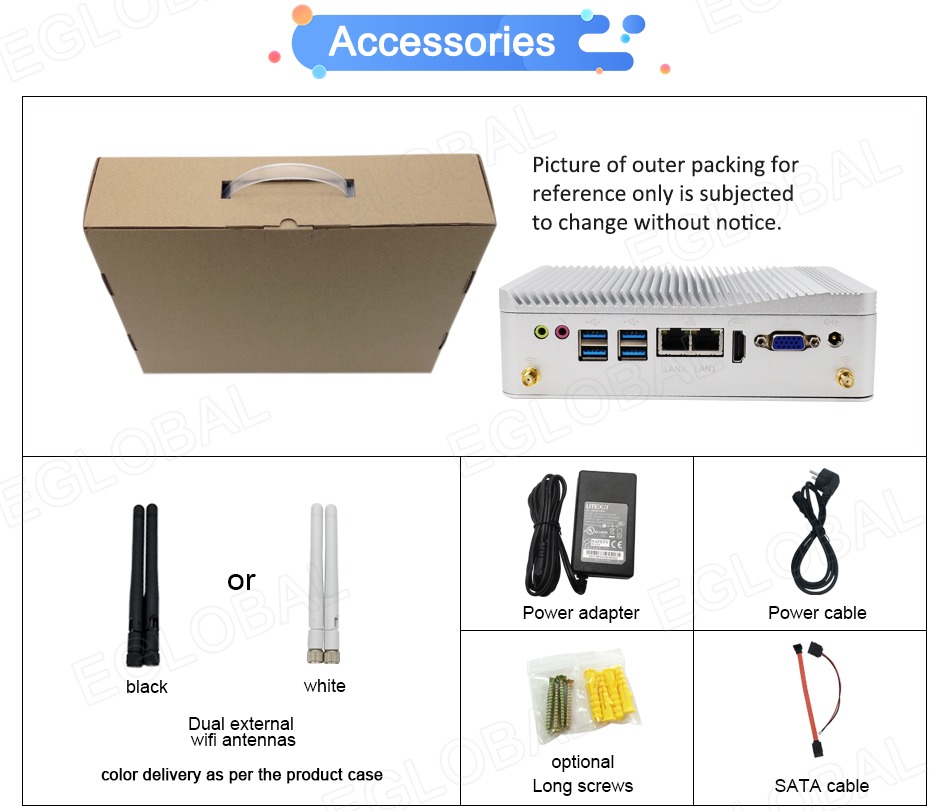

W Accessories Picture of outer packing for reference only is subjected to change without notice. or black white Power adapter Power cable Dual external wifi antennas optional Long screws color delivery as per the product case SATA cable
