19″ industrial touch panel PC with flexible Intel® CPU options (J6426 / Core i3-i7), fanless design, wide voltage input, and multiple I/O ports for automation and digital signage.

19″ TFT-LCD (1280×1024) touchscreen
Low Power Consumption, Intel Celeron or Core i3/i5/i7 CPU options
LCD + HDMI Dual Display, synchronous/asynchronous mode
Fanless aluminum chassis, IP65 front panel protection
2 × 2.5 GbE LAN, 6 × COM, 6 × USB, HDMI out
DC 9–36V Wide Voltage Input & VESA 75/100 mount support

Notify me when the price drops

Industrial Fanless Panel PC, Touch Computer VenBOX VB-pPC1901B 19″ with Intel Celeron / Core i3-i7, RS232, GPIO, WiFI, BT is available to buy in increments of 1

Category: Panel PC

Free Delivery

For all oders over $110

14 Days Return

For any reason

Secure Payment

100% secure payment

24/7 Support

Dedicated support

Details

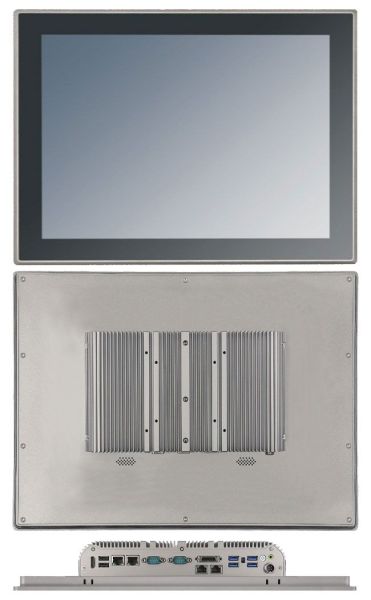

Industrial Panel PC – 19-inch Fanless Touch Computer

The VB-pPC1901B is a rugged, high-performance industrial panel PC designed for demanding environments and 24/7 operation. Built with an aluminum front panel and IP65 protection, it combines modern computing power with flexible configuration options – from Intel® Celeron® J4125/J6412 to Core™ i3/i5/i7 processors – making it ideal for automation, kiosks, machine control, and digital signage.

Benefits

Fanless design for silent, low-power, and maintenance-free operation.
Wide voltage input (9 – 36 V DC) ensures stable performance in industrial environments.
Flexible configuration with optional CPUs, RAM, and SSD storage capacities.
Rich I/O ports including multiple COM, USB, GPIO, and LAN interfaces for system integration.
Durable touchscreen with high-brightness 19.0″ TFT LCD and long LED backlight lifespan (30 000 h).

Key Features

1. High-Performance CPU Options

Supports Intel® Celeron® J4125/J6412 or 8th–11th Gen Intel® Core™ i3/i5/i7 processors with DDR4 SODIMM memory (1–2 slots). This flexibility lets you choose the right balance of speed and efficiency for your application.

2. Robust 19-inch Display

19.0″ TFT-LCD panel with 1280 × 1024 resolution, 250 cd/m² brightness, 16.7 M colors, and wide viewing angles (85°/85°). Available with resistive or projected capacitive touch technology.

3. Comprehensive Connectivity

Equipped with 4 × USB 3.0, 2 × USB 2.0, 6 × COM (RS-232/422/485), 2 × 2.5 GbE LAN (Intel i225V), HDMI output, audio line-out, GPIO × 10, and optional Wi-Fi/4G/5G modules via M.2 slots.

4. Expandable Storage

Includes M.2 2242/2260/2280 SATA, M.2 2280 NVMe, and 2.5″ SATA drive support – easily configurable with different SSD capacities to meet your project needs.

5. Industrial-Grade Reliability

Fanless aluminum design with -20 °C ~ +60 °C operating range, programmable watchdog timer, and long service life rated for >50 million touch operations.

Fanless aluminum chassis, IP65 front panel protection

Applications

Factory and machine automation
SCADA and HMI terminals
Kiosks and retail control panels
Digital signage and POS systems
Transportation and environmental monitoring

Specifications

Category	Item	Specification
System	Name	VB-pPC1901B
	Processor	Optional Intel Celeron J4125/J6412 or 8th/10th/11th Gen Intel Core i3/i5/i7 CPU
	System Memory	J4125/J6412 DDR4 SODIMM x 1; Intel Core i3/i5/i7 DDR4 SODIMM x 2
	Network	2x 2.5 GbE RJ45 Intel® i225V (Optional: 4 x 2.5GbE RJ45 Intel i225V)
	I/O Interface	4x USB2.0, 2x USB3.0 (J4125/J6412) 2 x USB2.0, 4 x USB3.0 (8th/10th/11th Gen Intel Core i3/i5/i7) 2x DB-9 COM1&COM2, RS-232/422/485 1 x Audio Line-out 2x 8Ω/1W Power Amplifier Output (Optional) 1x AT/ATX DIP Switch 1x HDMI 1x Expansion: Integrated 4-way 3-wire COM3-COM6, 10-way GPIO, 1 remote switch
	Storage	1 x M.2 2242/2260/2280 SATA; 1x SATA (2.5" SATA); 1x M.2 2280 NVME
	Expansion Slot	M.2 3042/3052 3G/4G/5G Module, Onboard SIM Card Slot; M.2 2230 WiFi Bluetooth
	Watchdog Timer	1〜65535 Seconds Programmable Setting
Supported System		Windows® 10/11, WES 10, LINUX
Structure	Material	Aluminum
	Mounting Method	VESA 75/ 100 Panel Mount
	Dimensions	437.27x361.27x68.8 mm
	Weight	TBD
Operating Environment	Working Temperature	-20°C 〜60°C
	Storage Temperature	-30°C 〜70°C
	Storage Humidity	10〜90%@30°C, Non-condensing
	Power Input	DC 9〜36V 3-pin Phoenix Connector
LCD	LCD Type	19.0" TFT-LCD
	Resolution	1280x1024
	Max Colors	16.7M
	Brightness	250 cd/m²
	Viewing Angle (CR>=10)	-85〜85°(H)，-85〜85°(V)
	Backlight Life (hr)	30,000
Touch Screen	Type	5-Wire Resistive / Projected Capacitive (PCAP)
	Transmittance	78% / >85%
	Lifetime	250g Click 10 Million Times / >50 Million Times

Options (see other auctions)

Size

Part Number	Display Size	Resolution	Proportions
VB-pPC0800B	8"	1024*768	4:3
VB-pPC1001B	10.1"	1280*800	16:10
VB-pPC1201B	12.1"	1024*768	4:3
VB-pPC1303B	13.3"	1920*1080	16:9
VB-pPC1500B	15"	1024*768	4:3
VB-pPC1506B	15.6"	1920*1080	16:9
VB-pPC1700B	17"	1280*1024	4:3
VB-pPC1901B	19"	1280*1024	4:3
VB-pPC2105B	21.5"	1920*1080	16:9

CPU

Part Number	Description
VB-pPC1901B-J4125	19.0" TFT LCD \| J4125 CPU \| DDR4 SODIMM x1 \| 2xUSB3.0, 4xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-J6412	19.0" TFT LCD \| J6412 CPU \| DDR4 SODIMM x1 \| 2xUSB3.0, 4xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-I5-8260U	19.0" TFT LCD \| i5-8260U CPU \| DDR4 SODIMM x2 \| 4xUSB3.0, 2xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-I5-8365U	19.0" TFT LCD \| i5-8365U CPU \| DDR4 SODIMM x2 \| 4xUSB3.0, 2xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-I7-8565U	19.0" TFT LCD \| i7-8565U CPU \| DDR4 SODIMM x2 \| 4xUSB3.0, 2xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-I7-8569U	19.0" TFT LCD \| i7-8569U CPU \| DDR4 SODIMM x2 \| 4xUSB3.0, 2xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-I5-10210U	19.0" TFT LCD \| i5-10210U CPU \| DDR4 SODIMM x2 \| 4xUSB3.0, 2xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-I5-10310U	19.0" TFT LCD \| i5-10310U CPU \| DDR4 SODIMM x2 \| 4xUSB3.0, 2xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-I7-10510U	19.0" TFT LCD \| i7-10510U CPU \| DDR4 SODIMM x2 \| 4xUSB3.0, 2xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter
VB-pPC1901B-I7-10610U	19.0" TFT LCD \| i7-10610U CPU \| DDR4 SODIMM x2 \| 4xUSB3.0, 2xUSB2.0 \| 2x LAN \| 6 x COM \| 1x Power Adapter

Notes

For products configured with the Celeron series CPU, the I/O panel has 6 USB2.0 ports and 1 USB3.0 port. For products with the Core series CPU, there are 4 USB3.0 ports and two USB2.0 ports.
For products configured with the Celeron series CPU, there is one DDR4 memory slot. For products with the Core series CPU, there are two DDR4 memory slots.

Packing List

Panel PC
Power Adapter
Phoenix Connector Screw

Optional Accessories

WIFI Module
3G/4G/5G Communication Module
VESA Bracket

installations | wall mounting, embeddet to kiosk, desktop with holder

Summary

The VB-pPC1901B Industrial Panel PC is a robust, fanless, and energy-efficient solution engineered for harsh environments. With multiple CPU and storage configurations, wide-voltage power, and flexible mounting options, it delivers outstanding performance for industrial, commercial, and embedded applications.
