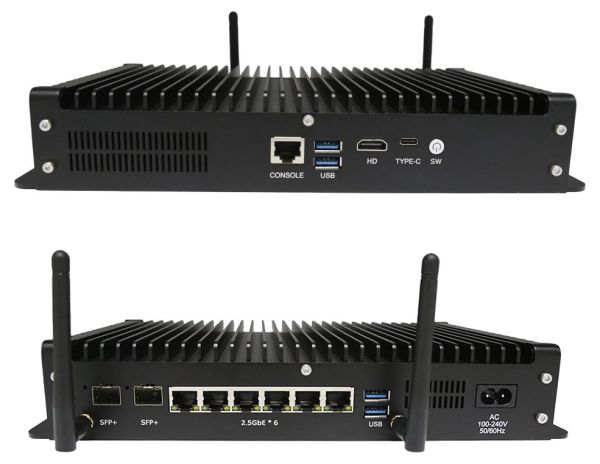

Upgrade your network infrastructure with the Intel Core i3-1215U Fanless Network Appliance. Built on the 12th Gen Alder Lake architecture, this mini PC combines energy efficiency with 10-Gigabit optical networking. It is the ideal solution for sophisticated firewall configurations (pfsense, OPNsense), high-speed storage gateways, and demanding industrial environments. Available now at VenSYS Store, this hardware is engineered for 24/7 reliability.

Benefits

• Ultra-High-Speed Networking: Equipped with dual 10G SFP+ ports and six 2.5G LAN ports, providing massive bandwidth for data-intensive tasks.
• Silent & Durable: The fanless aluminum alloy shell acts as a massive heatsink, ensuring silent operation and preventing dust buildup inside the system.
• Next-Gen Memory: Dual SO-DIMM slots support up to 96GB of DDR5 RAM, significantly boosting multitasking and virtualization performance.
• Flexible Deployment: Supports both desktop and wall-mounted installation, making it perfect for server racks, offices, or industrial cabinets.
• Always-On Connectivity: Onboard SIM card slot and M.2 extension allow for 4G or 5G failover, ensuring your network never goes offline.

Key Features

High-Performance 12th Gen Intel Processor

Powered by the Intel Core i3-1215U with 6 cores and 8 threads, this appliance reaches up to 4.4GHz Turbo Boost. The integrated Intel Iris Xe Graphics ensure smooth handling of visual tasks and dual 4K video output.

Versatile Network Configuration

This unit features a specialized network array:

• 2 x SFP+ 10-Gigabit: Powered by the Intel 82599ES controller for optical fiber uplinks.
• 6 x 2.5G RJ45: Utilizing the Intel i226-V chipset for high-speed local networking.
• 1 x RJ45 Console: For professional-level headless management and configuration.

Advanced Thermal Management

The industrial-grade design allows for a wide operating temperature range of -20°C to +60°C. The black aluminum alloy chassis provides rugged protection and efficient heat dissipation without the need for moving parts.

Expansive Storage and Expansion

Storage is handled by a high-speed M.2 NVMe 2280 slot, supplemented by a 2.5-inch SATA tray for high-capacity HDD/SSDs. Expansion slots include an M.2 2232 for Wi-Fi and an M.2 3042/3052 for cellular modules.

Summary

Whether you are setting up a secure VPN gateway, a powerful router, or an industrial control system, the Intel Core i3-1215U Fanless Network Appliance delivers the ports and the power you need. With its unique combination of 10G SFP+ and 2.5G LAN ports, coupled with the reliability of fanless cooling, it stands as one of the most versatile network appliances in the VenSYS catalog. Order yours today to future-proof your network.
