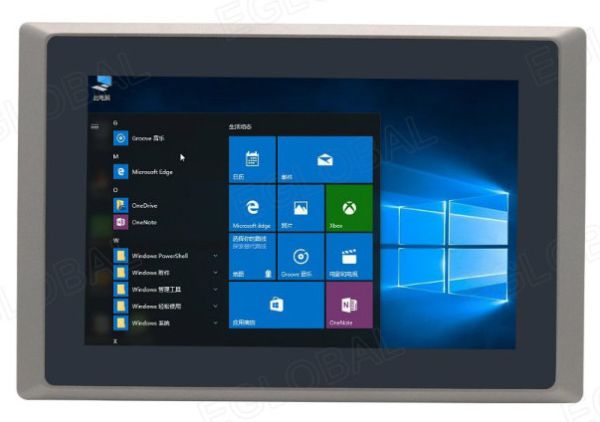

Industrial panel PC designed IP65 rated dust-proof and water-proof protection for the front panel. Support Windows and Linux-based operating systems. Industrial-grade mainboards ensure reliable performance under harsh conditions. Includes high brightness and sunlight readable screen for outdoor applications. Wide temperature and voltage operation, high-performance solutions designed for a wide range of industries such as the food industry, automation control, HMI, digital system, military, and industrial internet of things (IoT) devices.
| Model: | CPU: |
| EG-1501-J1900 | Intel® Celeron® CPU Intel Celeron J1900, 2.0GHz,up to 2.42GHz |
| EG-1501-6360U | Intel® Core i5-6360U, 2.0GHz,up to 3.1GHz |
| EG-1501-4200U | Intel® Core i5-4200U, 1.6GHz,up to 2.6GHz |
| EG-1501-7200U | Intel® Core i5-7200U, 2.5GHz,up to 3.1GHz |
| EG-1501-4500U | Intel® Core i7-4500U, 1.8GHz,up to 3.0GHz |
| EG-1501-7500U | Intel® Core i7-7500U, 2.7GHz,up to 3.5GHz |
 |
 |
 |
|
Basic Information: |
|
| CPU |
|
| Watchdog timer | 1 ~ 255 seconds programmable |
| Memory | Onboard DDR3L 4GB RAM (J1900/4th Gen Core CPU) Onboard DDR4 8GB or 16GB RAM (6th/7th Gen Core CPU) |
| OS | Windows® 7/8/10/11, WES 7, IoT, LINUX |
Storage: |
|
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1xM.2 (Core CPU only) |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Wi-Fi: |
|
| Module | 1x Mini PCIE Half port for WiFi module1x Mini PCIE Full port for 3G/4G module |
| Antenna | 2 x inner RF cables without external antennas |
Display Information: |
|
| LCD Type | 15" TFT-LCD (10.1"/12.1"/17"/19" Optional) |
| Resolution | 1024x768 |
| Max color | 16.7M |
| Brightness | 350 cd/m2 |
| Perspective (CR>="10) | -85~85° (H), -85~85° (V) |
| Backlight | LED |
| Backlight life (hour) | 50,000 |
Touch Screen Information: |
|
| Type | 5-wire resistive |
| Transmittance | 78% |
| Lifetime | 250g clicks 10 million times |
Input/output port: |
|
| Switch | 1 x Power On/Off Switch |
| Amplifier | 2 x 80 1W Amplifier output (Optional) |
| Button | 1 x AT/ATX DIP switch |
| USB | 3 x USB2.01, 1 x USB3.01, Built-in 1xUSB2.0 Dongles Port |
| Display | 1 x HDMI |
| LAN | 2x Gigabit Ethernet RJ45 Intel i211-AT |
| COM | 2 x DB-9 COM1&COM2,RS-232/422/485 |
| GPIO | 1 x 14bit GPIO (Optional) |
| Audio | 1 x Audio Line-out |
| Others |
|
Structure: |
|
| Material | Aluminum Alloy |
| Installation method | VESA 75x75/ Panel mounting |
| Dimension | 289.53x192.44x48.3 mm |
| Weight | TBD |
Power and Working Environment: |
|
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Storage Humidity | 10~90% @30°C, non-condensing |
| Power input | DC 9 ~ 36V 3-pin Phoenix Terminal |
Package Content: |
|
|
1 x All-in-one PC, 1 x Power Adapter, 1 x Power Cord, 1 x Screws Bag, 1 x Touchpen |
| Manufacturer | Eglobal |
|---|
