Adapter mSATA to M.2 NGFF

The Adapter mSATA to M.2 NGFF 2230-2280, 6.0Gb/s SATA-Bus SSD, B-Key is a high-quality product that allows you to easily connect NGFF B Key SSD to mSATA Mini PCI-E motherboard. This adapter is compliant with the PCI Express M.2 specification 1.0 and SATA III specification, ensuring reliable and efficient performance.

This convert card connects NGFF B-Key SSD to mSATA Mini PCI-E motherboard. It's a reliable and efficient solution for connecting NGFF B Key SSD to mSATA Mini PCI-E motherboard. With its high-speed data transfer capabilities, versatile compatibility, and easy installation, this adapter is the perfect choice for upgrading your storage solution. Experience seamless performance and secure connectivity with the Adapter mSATA to M.2 NGFF 2230-2280, 6.0Gb/s SATA-Bus SSD, B-Key.

Key Features:

• Compliant with PCI Express M.2 specification 1.0.
• Compliant with SATA III specification.
• Supports data transfer up to 6.0Gb/s.
• Supports SATA-based NGFF SSD.
• Supports B-Key NGFF SSD.

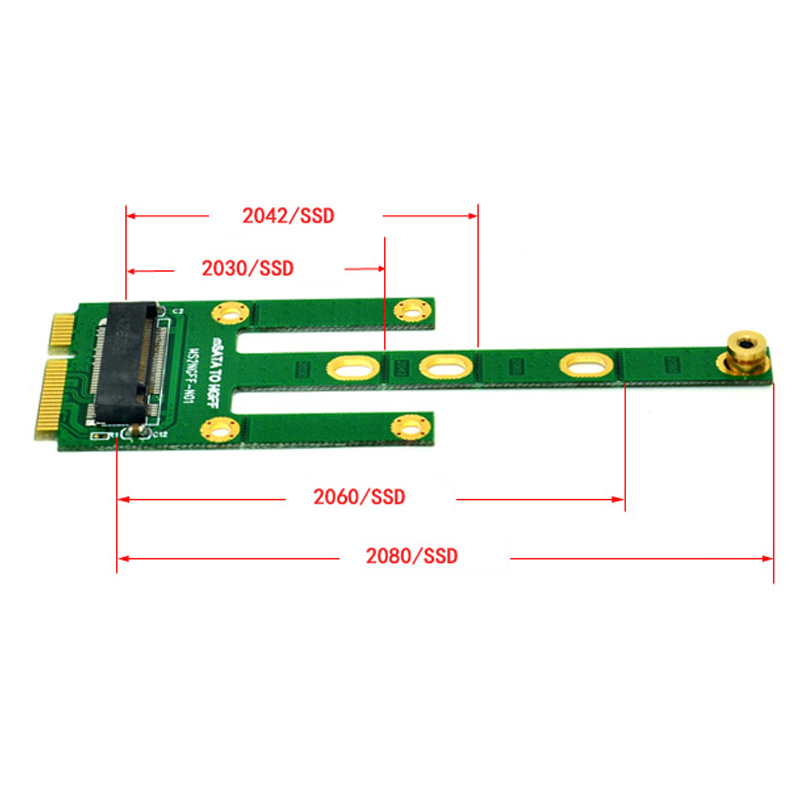

• Supports 2230, 2242, 2260 & 2280 size NGFF SSD.

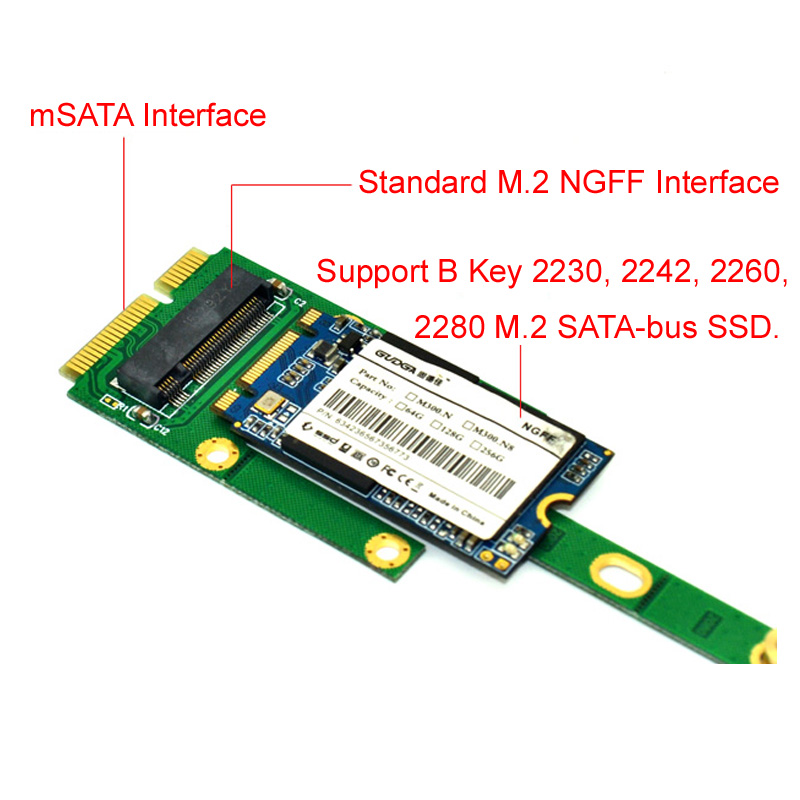

• One NGFF M.2 B Key socket and one mSATA Mini PCI-E male connector available.
• 4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card.
• 4 screw holes available to fix PCB board.
• Easy installation & no driver required.
• No additional power required.
• Support boot function.
• Supports any OS, like Windows, WinCE & Linux etc.
• Size (L*W): 9.90*6.60cm

Note:

• It supports SATA-based B Key SSD only. It does NOT support PCI-E based B key & any M key SSD.
• Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
• And due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package content

• 1 x NGFF M.2 B Key to mSATA Adapter Card
• 1 x Screws Kit
